Application advantages of pup joint

Date:2024-06-21Tags:Pup Joints, casing,casing and tubing

The pup joint, also known as the tubing pup joint, is a vital connection tool in the field of oil and gas extraction. Generally speaking, it is a common connection accessory that prevents oil and gas from flowing into the wellbore, thereby avoiding the increase of pressure and temperature in the wellbore, ensuring the operation and safe production. The price of pup joint varies, mainly depending on its material, processing accuracy and scope of use. This article will discuss in detail the advantages, types, selection points and technical performance characteristics of pup joint.


What are the uses of pup joints?

Pup joints are widely used in various types of wellbores, including oil wells, water wells, and production wells. In terms of material selection, pup joints can be made of different materials to adapt to different wellbore types and size requirements. Common materials are steel and stainless steel. Among them, steel pup joints are widely used in general oil and gas well environments because of their relatively low price and high mechanical strength. Stainless steel pup joints are often used in highly corrosive wellbores and special operating environments due to their excellent corrosion resistance. The processing accuracy of the tubing pup joint is extremely important. It is necessary to ensure that its shape, size and surface quality meet national and industry standards to ensure its reliability and durability in actual use.

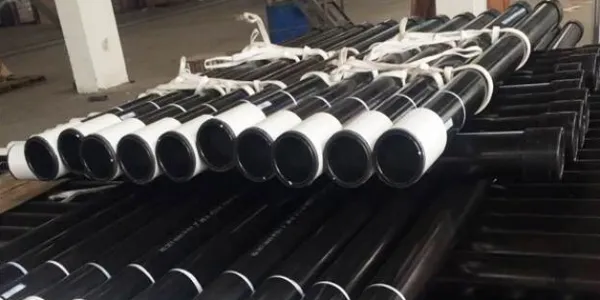

pup joint


What are the advantages of pup  joints?

The connection effect is one of the key indicators to measure the quality of the pup joint. The standard of the pup joint is API 5CT, just like the casing and tubing . In order to ensure that the connection effect of the pup joint meets the standard requirements, strict tests are usually carried out before actual use. The connection strength and sealing performance of the pup joints are verified through tests to ensure that it can work stably under high pressure and high temperature environments. The convenience of installation is also a major advantage of the short joint. The installation process of the pup joint is simple and quick. You only need to tighten it, which greatly reduces the time and labor intensity of on-site operations. In addition, if you need to replace downhole tools or equipment, you only need to remove the pup joint pipe and replace it, which is very convenient to operate.


The length of the pup joint is generally about 1-3 meters, but it can also be customized according to customer requirements. Compared with the standard casing, the pup joint is only different in length, and other performance indicators such as strength and durability are basically the same. The technical performance characteristics of the tubing pup joint and the casing pup joint are mainly reflected in the following aspects: First, the pipe body has high mechanical strength and good comprehensive performance; second, the thread is processed by a special CNC machine tool, with high manufacturing precision, reliable use and long service life; third, the cost is low, threaded connection can be made, and it is easy to repair.


Performance advantages of the pup joint

In terms of technical performance, the joint connection strength of the pup joint matches the strength of the pipe body, and some are even higher than the pup joint strength of the pipe body, which is particularly suitable for deep well and ultra-deep well operations. The pup joint has good sealing performance and is suitable for high-pressure gas wells, oil wells and thermal wells. In addition, the pup joint has strong bending resistance and is suitable for complex environments such as supporting wells, large-displacement wells and horizontal wells. It is easy to fix and can be fastened quickly, and drilling operations can be carried out smoothly in harsh environments such as deserts and oceans. The pup joint also has good anti-sticking properties and can be repeatedly removed without damaging the threads. It also has strong anti-torque and anti-corrosion capabilities.


Standards for pup joints

Pup joints are a type of commonly used spare parts in industrial pipeline connections, which are divided into tubing pup joints and casing pup joints. A tubing pup joint is a short tubing, which is different from standard casing and tubing only in length. Other aspects are the same, and various specifications and models can be processed according to customer orders. The implementation standards of tubing pup joints mainly include API Spec 5CT/5B standards, and its material range covers J55, K55, N80, L80, P110, etc. The specifications of tubing range from 1.9 inches (48.26 mm) to 4-1/2 inches (114.30 mm), and the top processing methods are EUE (thickening) and NUE (non-thickening). The specifications of oil casing cover external threads from 4-1/2 inches (114.30 mm) to 20 inches (508 mm), including STC, LTC, BTC and other types.


In modern oil and gas production, the importance of pup joints cannot be ignored. Its excellent performance and diverse options enable it to perform well in various complex and demanding operating environments. From material selection to processing accuracy, from connection effect to convenient installation, every detail of the tubing pup joint reflects its key role in ensuring the safety and efficiency of oil and gas production. In the future, with the continuous advancement of technology and the continuous changes in market demand, tubing pup joints will play a greater role in more fields, providing a solid guarantee for the development of the oil and gas industry.
