​Specifications of LSAW pipe

Date:2024-09-19Tags:

LSAW pipe (straight seam submerged arc welded pipe) and DSAW pipe (double-sided submerged arc welded steel pipe) are both made of steel raw materials, with steel plates as raw materials, formed by forming machines, and then double-sided submerged arc welding. The LSAW steel pipe made by this process has good ductility, weld toughness, uniformity, plasticity, and good sealing.

Application of LSAW pipe

LSAW pipe is widely used in oil and gas pipelines, especially those that require large diameter, thick wall, high strength, and long distance. At the same time, straight seam submerged arc welded pipes are also used for structural construction, water treatment, thermal industry, bridge construction, etc. that require high strength. According to API 5CT specifications, straight seam submerged arc welded pipes are specially used for large-scale oil and gas transportation, and are used for situations where pipelines cross cities, oceans, and urban areas. These are Class 1 and Class 2 areas.


Specifications of LSAW pipe

O.D.

W.T.

Length(m)

Inch

mm

Min.Yield Strength(Mpa)

Inch

mm

245(B)

290(X42)

360(X52)

415(X60)

450(X65)

485(X70)

555(X80)

16

406

6.0-14.0

6.0-13.0

6.0-12.0

6.0-11.0

6.0-10.5

6.0-10.0

6.0-9.0

6.0-12.3

18

457

6.0-15.0

6.0-14.0

6.0-13.0

6.0-12.0

6.0-11.5

6.0-11.0

6.0-10.0

6.0-12.3

20

508

6.0-16.0

6.0-15.0

6.0-14.0

6.0-13.0

6.0-12.5

6.0-12.0

6.0-11.0

6.0-12.3

22

559

6.0-17.0

6.0-16.0

6.0-15.0

6.0-14.0

6.0-13.5

6.0-13.0

6.0-12.0

6.0-12.3

24

610

6.0-18.0

6.0-17.0

6.0-16.0

6.0-15.0

6.0-14.5

6.0-14.0

6.0-13.0

6.0-12.3

26

660

6.0-19.0

6.0-18.0

6.0-17.0

6.0-16.0

6.0-15.0

6.0-15.0

6.0-14.0

6.0-12.3

28

711

6.0-20.0

6.0-19.0

6.0-18.0

6.0-17.0

6.0-16.5

6.0-16.0

6.0-15.0

6.0-12.3

30

762

7.0-21.0

7.0-20.0

7.0-19.0

7.0-18.0

7.0-17.5

7.0-17.0

7.0-16.0

6.0-12.3

32

813

7.0-22.0

7.0-21.0

7.0-20.0

7.0-19.0

7.0-18.5

7.0-18.0

7.0-17.0

6.0-12.3

34

864

7.0-23.0

7.0-22.0

7.0-21.0

7.0-20.0

7.0-19.5

7.0-19.0

7.0-18.0

6.0-12.3

36

914

8.0-24.0

8.0-23.0

8.0-22.0

8.0-21.0

8.0-20.5

8.0-20.0

8.0-19.0

6.0-12.3

38

965

8.0-25.0

8.0-24.0

8.0-23.0

8.0-22.0

8.0-21.5

8.0-21.0

8.0-20.0

6.0-12.3

40

1016

8.0-26.0

8.0-25.0

8.0-24.0

8.0-23.0

8.0-22.5

8.0-22.0

8.0-21.0

6.0-12.3

42

1067

8.0-26.0

8.0-25.0

8.0-24.0

8.0-23.0

8.0-22.5

8.0-22.0

8.0-21.0

6.0-12.3

44

1118

9.0-27.0

9.0-26.0

9.0-24.5

9.0-23.5

9.0-22.8

9.0-22.0

9.0-21.0

6.0-12.3

46

1168

9.0-27.0

9.0-26.0

9.0-24.0

9.0-23.5

9.0-22.8

9.0-22.0

9.0-21.0

6.0-12.3

48

1219

9.0-28.0

9.0-27.0

9.0-25.4

9.0-24.0

9.0-23.5

9.0-23.0

9.0-22.0

6.0-12.3

52

1321

9.0-28.0

9.0-27.0

9.0-25.4

9.0-24.2

9.0-23.5

9.0-23.0

9.0-22.0

6.0-12.3

56

1422

10.0-29.0

10.0-28.0

10.0-26.0

10.0-24.5

10.0-23.8

10.0-23.0

10.0-22.0

6.0-12.3

60

1524

10.0-29.0

10.0-28.0

10.0-26.0

10.0-24.5

10.0-23.8

10.0-23.0

10.0-22.0

6.0-12.3

64

1626

10.0-30.0

10.0-29.0

10.0-27.0

10.0-25.4

10.0-24.8

10.0-24.0

10.0-23.0

6.0-12.3

68

1727

10.0-30.0

10.0-29.0

10.0-27.0

10.0-25.4

10.0-24.8

10.0-24.0

10.0-23.0

6.0-12.3

72

1829

10.0-30.0

10.0-29.0

10.0-27.0

10.0-25.4

10.0-24.8

10.0-24.0

10.0-23.0

6.0-12.3

Application fields of LSAW steel pipes

LSAW steel pipes are widely used in many fields due to their excellent performance:
Oil and gas transportation: used to transport oil, natural gas and other fluids.
Water conservancy projects: used for water pipes, irrigation systems, etc.
Building structure: as the main load-bearing structure of a building.
Machinery manufacturing: used to manufacture various mechanical equipment and parts.

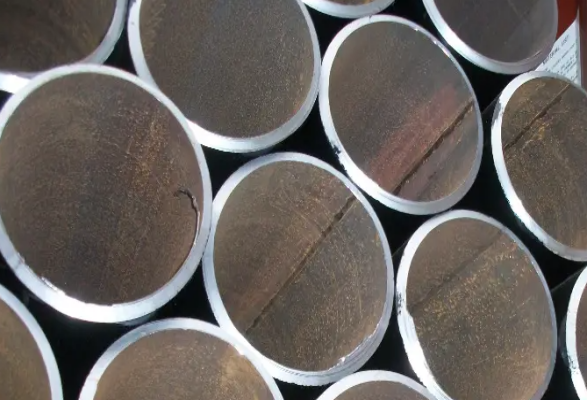

 LSAW pipe


LSAW steel pipes meet the needs of different fields with their excellent performance and diverse specifications. When selecting LSAW steel pipes, it is very important to reasonably determine the outer diameter, wall thickness and length, which will directly affect the safety and economy of the project. With the development of technology and the expansion of application fields, the market prospects of LSAW steel pipes will be broader. Choosing the right LSAW steel pipe can not only improve the quality of the project, but also effectively reduce costs, and is an indispensable part of modern engineering.
