ASTM A234 Carbon and Alloy Steel Pipe Fittings

ASTM A234 carbon and alloy steel pipe fittings are essential components in pressure piping systems. These fittings ensure safe and reliable connections across industries. With their superior durability and wide application range, they have become an industry standard for high-performance piping solutions.

What is ASTM A234?

ASTM A234 is Standard Specification for steel pipe fittings includes carbon and alloy steel material for moderate and high temperature services. It covers steel fittings of seamless and welded types. Steel Pipe fittings are applied in pressure pipelines and in pressure vessel fabrications. These fittings material consist of killed steel, forgings, bars, plates, seamless or HFW (fusion welded) pipe products, with filler metal added.

ASTM A234 includes wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASTM B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. etc.

As we know, ASTM A234 steel pipe fittings are used in pressure piping and in pressure vessel fabrication, for services at moderate and elevated temperatures. The fittings material in this standard consist of killed steel, forgings, bars, plates, seamless or fusion-welded tubular products with filler metal added.

In this standard it covers the specification of elbows, tees, reducers, caps and cross, it usually adopt butt welding ends.

What Are Steel Pipe Fittings?

Steel pipe fittings are essential components used in pipeline systems to facilitate the transport of fluids such as oil, gas, water, and slurry. These fittings are primarily made from carbon steel or alloy steel pipes, plates, or profiles. Their primary function is to change the direction or flow rate of fluids within the system or to perform specific tasks like opening or closing pipelines.

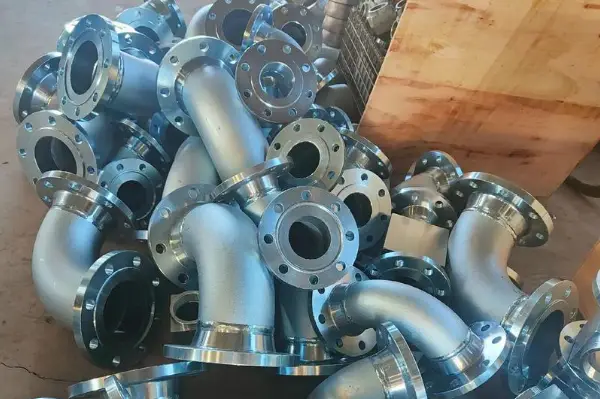

Types of Steel Pipe Fittings

Steel pipe fittings come in a variety of shapes and designs to serve different purposes. Common types include:

Elbows: Used to alter the flow direction, available in 45° or 90° angles.

Tees: Allow fluids to branch off into multiple directions.

Reducers: Connect pipes of different diameters, available in concentric or eccentric designs.

Crosses: Allow four-way connections for fluid distribution.

Caps: Seal the ends of pipelines securely.

Nipples: Connect pipes or fittings directly.

Flanges: Facilitate the connection of pipes, valves, or other equipment.

Gaskets and Studs: Provide sealing and secure connections.

These fittings are indispensable for creating functional and adaptable pipeline systems.

What is ASTM A234 WPB?

ASTM A234 is Standard Specification for steel pipe fittings includes carbon and alloy steel material for moderate and high temperature services. It covers steel fittings of seamless and welded types. Steel Pipe fittings are applied in pressure pipelines and in pressure vessel fabrications. These fittings material consist of killed steel, forgings, bars, plates, seamless or HFW (fusion welded) pipe products, with filler metal added.

ASTM A234 includes wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASTM B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. etc.

As we know, ASTM A234 steel pipe fittings are used in pressure piping and in pressure vessel fabrication, for services at moderate and elevated temperatures. The fittings material in this standard consist of killed steel, forgings, bars, plates, seamless or fusion-welded tubular products with filler metal added.

In this standard it covers the specification of elbows, tees, reducers, caps and cross, it usually adopt butt welding ends.

Grades in ASTM A234

ASTM A234 specification has many grades, such as WPB, WPC, WP5, WP9 WP11, WP12, WP22, WP91 and so on.

In these standard Grade WPB is the most common material used for medium and high temperature pipelines. W means weldable, P means pressure, B is grade b, refer to the minimum yield strength.

The source raw material of ASTM A234 WPB steel pipe fittings may be from steel pipe, such as ASTM A106 Gr.B and C. Also from steel plate, as ASTM A285 Gr.C, ASTM A516 Gr 70, ASTM A572 etc.

ASTM A234 includes seamless and welded pipe fittings

ASTM A234 specifies wrought carbon and alloy steel pipe fittings, including both seamless and welded types. These fittings are critical in pressure piping systems and are designed to perform under moderate and elevated temperatures.

Seamless vs. Welded Pipe Fittings

1.Seamless Pipe Fittings:

Seamless pipe fittings are made from seamless steel pipes and tubes. These fittings are valued for their uniformity, high strength, and ability to withstand extreme pressure without the risk of seam failure.

2.Welded Pipe Fittings:

Welded pipe fittings are manufactured using welded steel pipes. These fittings are more economical and versatile, offering reliable performance in a variety of applications.

ASTM A234 steel pipe fittings dimensions

Standards: ANSI /ASME B16.9, B16.28, MSS-SP-43.

Outer Diameter Range: 1/2” to 48”

Thickness Range: SCH 10, sch 20, SCH 40, SCH STD, SCH 80, SCH XS, SCH 160, SCH XXS etc.

Steel pipe fittings manufacturing types in forged, threaded, butt weld, and seamless.

Steel pipe fittings manufacturing forming processes

The manufacturing processes for pipe fittings includes forging and shaping operations. As well as pressing, hammering, piercing, extruding, upsetting, rolling, bending, fusion welding and machining. Or the processes of combination of two or more of these operations.

During the manufacturing steel pipe fittings, below activities shall be noted:

1, Injurious imperfections, welding defects shall be not created.

2, After shaping or forming the fittings in a suitable temperature, it shall be cooled in a appropriate environments to a temperature that below the critical range. And no defects shall be made during the cooling procedures. The cooling rapid shall be not more than in the air.

3, Suitable inspection shall be performed after manufacturing. (Hydrostatic test, hardness test, tensile test etc)

Manufacturing and Heat Treatment of ASTM A234 Pipe Fittings

Manufacturing Process

ASTM A234 fittings are made from killed steel, using forgings, bars, plates, sheets, or seamless and fusion-welded tubular products with filler metal. Processes include hammering, pressing, extruding, rolling, bending, welding, and machining, often in combination. These steps ensure precise dimensions and high-quality fittings.

Heat Treatment

After forming, fittings are cooled below the critical range at a controlled rate, no faster than still air cooling. This prevents defects like cracking. Heat treatment adheres to ASTM A960/A960M standards, ensuring the required mechanical properties, such as strength and durability, for pressure applications.

ASTM A234 WPB steel pipe fitting chemical and mechanical features

Grade WPB fittings made from the steel pipes or plates maximum C is 0.35%.

Forging fittings Carbon content 0.35% maximum and Silicon content 0.35% maximum, no minimum.

For each reduce of 0.01 of Carbon content, Manganese maximum content increase 0.06%, up to the maximum 1.35% for Mn.

Copper, Nickel, Niobium and Molybdenum sum content shall not exceed 1.00%.

Niobium + Molybdenum shall not exceed 0.32%.

Chemical Requirements

WPB B,C,D,E,	WPC C,D,E,	WP11 CL1	WP11 CL2,	WP11 CL3	WP22 CL1,	WP22 CL3	WP5 CL1,	WP5 CL3
Carbon	0.3	0.35	0.05–0.15	0.05–0.20	0.05–0.20	0.05–0.15	0.05–0.15	0.15	0.15
Manganese	0.29–1.06	0.29–1.06	0.30–0.60	0.30–0.80	0.30–0.80	0.30–0.60	0.30–0.60	0.30–0.60	0.30–0.60
Phosphorus	0.05	0.05	0.03	0.04	0.04	0.04	0.04	0.04	0.04
Sulfur	0.058	0.058	0.03	0.04	0.04	0.04	0.04	0.03	0.03
Silicon	0.10 min	0.10 min	0.50–1.00	0.50–1.00	0.50–1.00	0.5	0.5	0.5	0.5
Chromium	0.4	0.4	1.00–1.50	1.00–1.50	1.00–1.50	1.90–2.60	1.90–2.60	4.0–6.0	4.0–6.0
Molybdenum	0.15 max	0.15 max	0.44–0.65	0.44–0.65	0.44–0.65	0.87–1.13	0.87–1.13	0.44–0.65	0.44–0.65
Nickel	0.4	0.4	…	…	…	…	…	…	…
Copper	0.4	0.4	…	…	…	…	…	…	…
Others	Vanadium 0.08	Vanadium 0.08	…	…	…	…	…	…	…

WP9 CL1,	WP9 CL3	WP91
Carbon	0.15	0.15	0.08–0.12
Manganese	0.30–0.60	0.30–0.60	0.30–0.60
Phosphorus	0.03	0.03	0.02
Sulfur	0.03	0.03	0.01
Silicon	1	1	0.20–0.50
Chromium	8.0–10.0	8.0–10.0	8.0–9.5
Molybdenum	0.90–1.10	0.90–1.10	0.85–1.05
Nickel	…	…	0.4
Copper	…	…	…
Others	…	…	Vanadium 0.18–0.25
			Columbium 0.06-0.10
			Nitrogen 0.03-0.07
			Aluminum 0.02F
			Titanium 0.01F
			Zirconium 0.01F

Alloy steel pipe fittings grades in ASTM A234

The alloy steel pipe fitting is fabricated with alloy elements in such as Chrome, Molybdenum, Nickel alloy, Hastelloy alloy, Monel, Inconel, and etc. To get a higher pressure ratings, better strength, good corrosive resistance, and longer durability. It is widely used in oil and gas pipelines, chemical industries, power plants, nuclear power sites, and in server conditions.

Alloy steel pipe fittings includes buttweld fittings, alloy steel long radius bend, alloy steel forged fittings and so on.

The alloy steel buttweld fittings adopts ASTM A234 standard, has WP1, WP5, WP11, WP12, WP22,WP23 and WP91 grades. Class level in CL1, CL2, CL3.

ASTM A234 alloy steel pipe fittings includes alloy steel elbows in long and short radius, alloy steel eccentric & concentric reducer, alloy steel caps & crosses, alloy steel couplings, alloy steel tees, alloy steel nipples, alloy steel caps and etc more forms. It has seamless, welded and fabricated types.

For alloy steel forged fittings, it adopts ASTM A182 standard refers to steel pipe flanges. Material standard in ASTM A182 F1, F5, F9, F11 Class 1, F12 Class 1, F22 Class 1 ETC.

Applications of ASTM A234 Pipe Fittings

These fittings are widely used in industries requiring robust and efficient piping systems. Common applications include:
Oil and Gas: Transporting oil, gas, and other fluids.
Power Plants: Supporting high-pressure steam and water flow.
Chemical Processing: Handling corrosive and high-temperature materials.
The adaptability of ASTM A234 fittings makes them a preferred choice in various industries.

Advantages of Using ASTM A234 Pipe Fittings

The advantages of ASTM A234 pipe fittings are numerous. First, their robust construction ensures long-lasting performance. Second, they offer excellent resistance to pressure and temperature fluctuations. Additionally, their compatibility with standard piping systems simplifies installation and maintenance.

Conclusion

ASTM A234 carbon and alloy steel pipe fittings play a crucial role in maintaining the integrity of piping systems. Their versatility, durability, and compliance with strict standards make them indispensable. Whether used in oil and gas, power generation, or chemical processing, these fittings ensure system reliability and efficiency.

For industries requiring high-quality pipe fittings, ASTM A234 remains a trusted and reliable specification. By selecting these fittings, you ensure long-term performance and safety in your piping systems.
