LSAW Steel Pipe

LSAW Steel Pipe

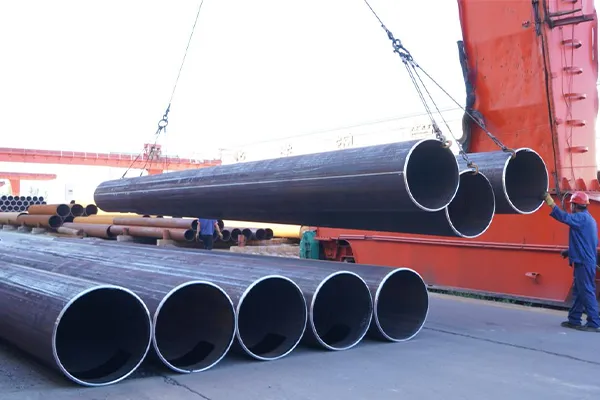

LSAW steel pipe (Longitudinally Submerged Arc Welding abbreviated as LSAW) is a professional expression term for LSAW steel pipe. It uses a single medium and thick plate as the raw material, and the steel plate is pressed (rolled) into a tube blank in a mold or a forming machine. The pipe is produced by submerged arc welding and expanded diameter.Based on its advantage of high reliability and safety performance, the LSAW pipe is widely used in various pipelines engineering and construction, even under the most severe condition, and also can be used in engineering of chemical industry, electric power, irrigation, construction and piling etc. The advantage of LSAW pipe for oil and gas pipeline: produce more thick wall thickness of pipes, max to 120mm.

Inquiry Now

Sizes Of LSAW Steel Pipe

Outside Diameter：Φ406mm- 1626mm (16" - 64" )
Wall Thickness：6.0- 75mm (1/4" - 3" )
Length：3-12.5m


Specification of LSAW steel pipe

O.D.

W.T.

Length(m)

Inch

mm

Min.Yield Strength(Mpa)

Inch

mm

245(B)

290(X42)

360(X52)

415(X60)

450(X65)

485(X70)

555(X80)

16

406

6.0-14.0

6.0-13.0

6.0-12.0

6.0-11.0

6.0-10.5

6.0-10.0

6.0-9.0

6.0-12.3

18

457

6.0-15.0

6.0-14.0

6.0-13.0

6.0-12.0

6.0-11.5

6.0-11.0

6.0-10.0

6.0-12.3

20

508

6.0-16.0

6.0-15.0

6.0-14.0

6.0-13.0

6.0-12.5

6.0-12.0

6.0-11.0

6.0-12.3

22

559

6.0-17.0

6.0-16.0

6.0-15.0

6.0-14.0

6.0-13.5

6.0-13.0

6.0-12.0

6.0-12.3

24

610

6.0-18.0

6.0-17.0

6.0-16.0

6.0-15.0

6.0-14.5

6.0-14.0

6.0-13.0

6.0-12.3

26

660

6.0-19.0

6.0-18.0

6.0-17.0

6.0-16.0

6.0-15.0

6.0-15.0

6.0-14.0

6.0-12.3

28

711

6.0-20.0

6.0-19.0

6.0-18.0

6.0-17.0

6.0-16.5

6.0-16.0

6.0-15.0

6.0-12.3

30

762

7.0-21.0

7.0-20.0

7.0-19.0

7.0-18.0

7.0-17.5

7.0-17.0

7.0-16.0

6.0-12.3

32

813

7.0-22.0

7.0-21.0

7.0-20.0

7.0-19.0

7.0-18.5

7.0-18.0

7.0-17.0

6.0-12.3

34

864

7.0-23.0

7.0-22.0

7.0-21.0

7.0-20.0

7.0-19.5

7.0-19.0

7.0-18.0

6.0-12.3

36

914

8.0-24.0

8.0-23.0

8.0-22.0

8.0-21.0

8.0-20.5

8.0-20.0

8.0-19.0

6.0-12.3

38

965

8.0-25.0

8.0-24.0

8.0-23.0

8.0-22.0

8.0-21.5

8.0-21.0

8.0-20.0

6.0-12.3

40

1016

8.0-26.0

8.0-25.0

8.0-24.0

8.0-23.0

8.0-22.5

8.0-22.0

8.0-21.0

6.0-12.3

42

1067

8.0-26.0

8.0-25.0

8.0-24.0

8.0-23.0

8.0-22.5

8.0-22.0

8.0-21.0

6.0-12.3

44

1118

9.0-27.0

9.0-26.0

9.0-24.5

9.0-23.5

9.0-22.8

9.0-22.0

9.0-21.0

6.0-12.3

46

1168

9.0-27.0

9.0-26.0

9.0-24.0

9.0-23.5

9.0-22.8

9.0-22.0

9.0-21.0

6.0-12.3

48

1219

9.0-28.0

9.0-27.0

9.0-25.4

9.0-24.0

9.0-23.5

9.0-23.0

9.0-22.0

6.0-12.3

52

1321

9.0-28.0

9.0-27.0

9.0-25.4

9.0-24.2

9.0-23.5

9.0-23.0

9.0-22.0

6.0-12.3

56

1422

10.0-29.0

10.0-28.0

10.0-26.0

10.0-24.5

10.0-23.8

10.0-23.0

10.0-22.0

6.0-12.3

60

1524

10.0-29.0

10.0-28.0

10.0-26.0

10.0-24.5

10.0-23.8

10.0-23.0

10.0-22.0

6.0-12.3

64

1626

10.0-30.0

10.0-29.0

10.0-27.0

10.0-25.4

10.0-24.8

10.0-24.0

10.0-23.0

6.0-12.3

68

1727

10.0-30.0

10.0-29.0

10.0-27.0

10.0-25.4

10.0-24.8

10.0-24.0

10.0-23.0

6.0-12.3

72

1829

10.0-30.0

10.0-29.0

10.0-27.0

10.0-25.4

10.0-24.8

10.0-24.0

10.0-23.0

6.0-12.3


Size range by usage

    Usage O.D.(mm) W.T.(mm) Length(m)
    Oil &gas pipeline 406-1524(16” – 60”) 6-40 (1/4” – 1.57”) 8-12.1
    for Construction(Pipe Piles) 350-1600(14” – 63”) 6-60 (1/4” – 2.36”) 6-12
    Roller pipe 1200-3800(47.24” – 150”) 12-120 (1/2”- 4.7”) <=3.2
    Addition to above specification, the pipes can be produced according to customer’s requirements


Standard Of LSAW Steel Pipe

API 5L PSL1 / PSL2 Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70
ASTM A53 / A252 / A500 / A672 / A691 / A139
EN10025 / EN10210 / EN10219 / EN10217 / EN10208 / EN10297
AS1163 / JIS G3457 / JIS G3101
DIN 17100
Ends: Black ends / Bevelled ends / Plain ends
Surface Treatment: Bare, Black Painting, Varnished, Galvanized, Anti-corrosion coating, etc.

Application: Used for oil and gas, water transmission, engineering, offshore projects.

Types Of LSAW Steel Pipe

UOE SAWL PIPES

Outside Diameter：Φ508mm- 1118mm (20"- 44")

Wall Thickness: 6.0-25.4mm 1/4"-1"

Quality Standards: API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA

Length: 9-12.3m (30'- 40')

Grades: API 5L A-X90,GB/T9711 L190-L625



JCOE SAWL PIPES

Outside Diameter：Φ406mm- 1626mm (16" - 64" )

Wall Thickness：6.0- 75mm (1/4" - 3" )

Quality Standards：API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA

Length：3-12.5m ( 10'- 41' )

Grades：API 5L A-X100, GB/T9711 L190-L690

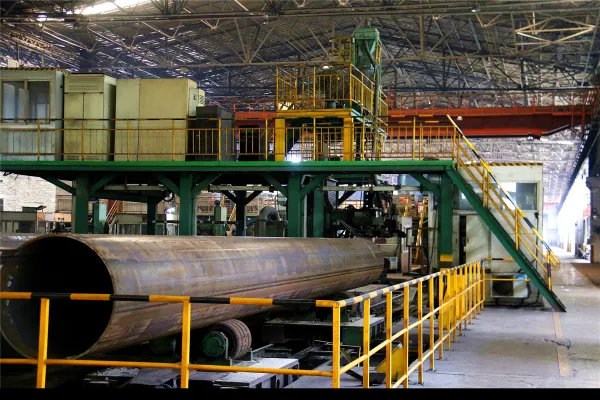

Manufacturing Process of LSAW steel pipe

LSAW Steel Pipe Forming Method:
According to different molding methods, it can be divided into:
- UOE steel pipe
After pre-bending the edge of a single steel plate, it goes through processes such as U forming, O forming, internal welding, external welding, and mechanical cold expansion.
- JCOE steel pipe
According to "JCOE" pre-welding, shaping, and post-weld cold expansion.
- HME steel pipe
Shaping according to "CCO" mandrel rolling method, cold expansion after welding and other processes.



JCOE forming mode

Chemical Composition and Mechanical Properties of LSAW Steel Pipe

Standard

Grade

Chemical Composition(max)%

Mechanical Properties(min)

C

Mn

Si

S

P

Yield Strength(Mpa)

Tensile Strength(Mpa)

GB/T700-2006

A

0.22

1.4

0.35

0.050

0.045

235

370

B

0.2

1.4

0.35

0.045

0.045

235

370

C

0.17

1.4

0.35

0.040

0.040

235

370

D

0.17

1.4

0.35

0.035

0.035

235

370

GB/T1591-2009

A

0.2

1.7

0.5

0.035

0.035

345

470

B

0.2

1.7

0.5

0.030

0.030

345

470

C

0.2

1.7

0.5

0.030

0.030

345

470

BS EN10025

S235JR

0.17

1.4

-

0.035

0.035

235

360

S275JR

0.21

1.5

-

0.035

0.035

275

410

S355JR

0.24

1.6

-

0.035

0.035

355

470

DIN 17100

ST37-2

0.2

-

-

0.050

0.050

225

340

ST44-2

0.21

-

-

0.050

0.050

265

410

ST52-3

0.2

1.6

0.55

0.040

0.040

345

490

JIS G3101

SS400

-

-

-

0.050

0.050

235

400

SS490

-

-

-

0.050

0.050

275

490

API 5L PSL1

A

0.22

0.9

-

0.03

0.03

210

335

B

0.26

1.2

-

0.03

0.03

245

415

X42

0.26

1.3

-

0.03

0.03

290

415

X46

0.26

1.4

-

0.03

0.03

320

435

X52

0.26

1.4

-

0.03

0.03

360

460

X56

0.26

1.1

-

0.03

0.03

390

490

X60

0.26

1.4

-

0.03

0.03

415

520

X65

0.26

1.45

-

0.03

0.03

450

535

X70

0.26

1.65

-

0.03

0.03

585

570

Application of LSAW Steel Pipe

LSAW steel products are widely used in the fields of oil, natural gas, chemical, city gas, water, heating and other transportation pipelines on land and offshore. In addition, they are also used in many industries such as power, infrastructure construction and marine engineering. The application scope of this type of steel pipe includes various construction projects, such as stadium construction, road traffic management gantries, shipbuilding, civil piling projects and fluid transportation systems, whether it is mud pipelines or oil and natural gas transportation. The products strictly comply with technical standards such as GB/T9711, API SPEC 5L, ISO3183, and can be customized according to the specific needs of customers.
