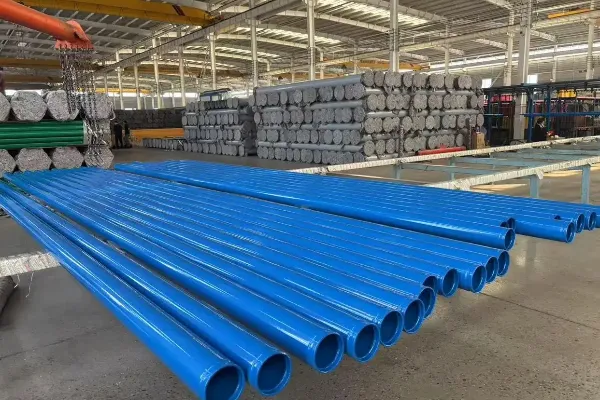

Grooved pipe is a type of pipe with a special design for pipe connections. Its main feature is that a circular groove is machined into the end of the pipe, allowing it to be connected to another pipe using specialized grooved fittings (such as grooved couplings and grooved connectors), without the need for welding or threaded connections.Grooved pipes are widely used in fire protection systems, HVAC, water supply and drainage, industrial piping, and oil & gas auxiliary systems.

Grooved Pipe Size Specifications

NPS (inch)	Outside Diameter	Thickness Sch10	Thickness Sch40	Ends
NPS (inch)	mm	mm	mm	Ends
1/2"	21.3		2.77	Grooved, Threaded, Plain ends Expoy red painted, Power coated, Ral3000, Ral3001 Black and Galvanized finish
3/4"	26.7	2.11	2.87
1"	33.7	2.77	3.38
1.1/4"	42.2	2.77	3.56
1.1/2"	48.3	2.77	3.68
2"	60.3	2.77	3.91
2.1/2"	73	3.05	5.16
3"	88.9	3.05	5.49
3.1/2"	101.6	3.05	5.74
4"	114.3	3.05	6.02
5"	141.3	3.4	6.55
6"	168.3	3.4	7.11
8"	219.1	4.78	7.04
10"	273.1	4.78	7.8

Common Types of Grooved Pipes

Seamless Grooved Steel Pipe

ERW Grooved Steel Pipe

Carbon Steel Grooved Pipe

Stainless Steel Grooved Pipe

Black Grooved Steel Pipe

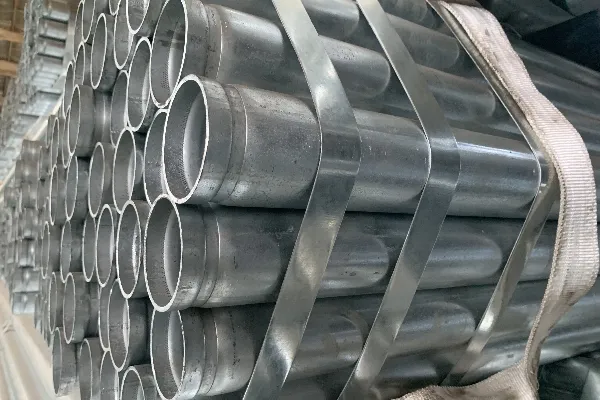

Galvanized Grooved Steel Pipe

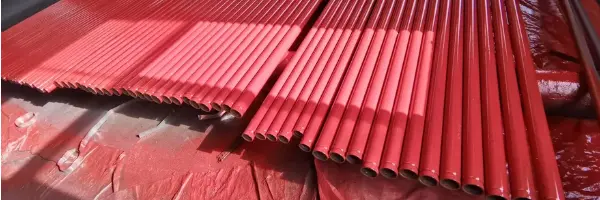

Red Painted Fire Fighting Grooved Pipe

Schedule 40 Grooved Steel Pipe

Fire Protection Grooved Pipe

HVAC Grooved Pipe

Industrial Grooved Pipe

Grooved Ductile Iron Pipe

Manufacturing Process of Grooved Pipe

The production of grooved pipe follows a strict quality-controlled process to ensure dimensional accuracy and groove consistency.
Manufacturing steps:
1.Raw Material Selection：High-quality carbon steel or stainless steel pipes are selected, commonly conforming to ASTM A53, ASTM A106, or equivalent standards.
2.Pipe Cutting：Pipes are cut to required lengths using precision cutting equipment to ensure square ends.
3.Groove Forming：Pipe ends are grooved by cold roll grooving or cut grooving machines, forming a uniform and accurate groove profile without damaging pipe integrity.
4.Surface Treatment：Depending on application requirements, pipes may undergo:

5.Black finish ：Hot-dip galvanizing， Painting or epoxy coating

6.Inspection & Testing：Groove dimensions, pipe OD, wall thickness, and surface quality are inspected. Pressure and sealing compatibility are verified when required.

7.Packing & Delivery：Pipes are bundled, capped, and packed for safe transportation.
