What is a drill collar in oil and gas?

Date:2024-07-30Tags:Drill Collars, drill pipe, drill
Drill collars are essential tools in oil and gas drilling operations, primarily used for cutting and breaking underground rock formations. Typically, drill collars are cylindrical with gears or other cutting structures at the bottom. In drilling operations, drill collars are installed at the end of the drill pipe and rotated by the drilling rig's rotation system. Their primary function is to cut or break underground rock into small pieces, facilitating subsequent drilling operations.This article delves into the importance of drill collars in petroleum operations and their multifaceted roles.

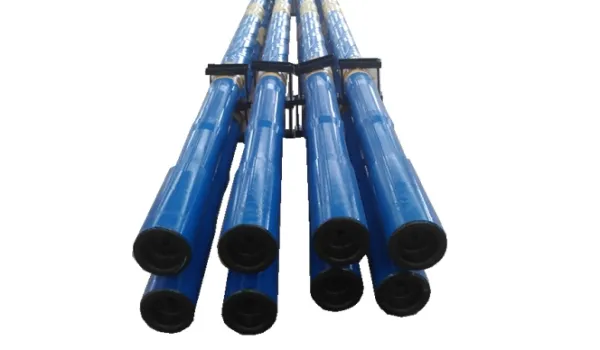

Drill Collars

1.Basic Structure and Function of Drill Collars

A drill collar (DC) is a heavy, thick-walled steel pipe with threaded connections at both ends. It is machined from solid steel bars, often made of high-strength carbon steel or non-magnetic nickel-copper alloy. Drill collars are designed to withstand downhole conditions, enduring both compression and tension. When designing the bottom hole assembly (BHA), drilling engineers place drill collars below the drill pipe or above the drill bit, as they are a primary component of the BHA.

Enhancing Drill String Strength

Drill collars, with their thick walls, substantial weight, and rigidity, significantly enhance the overall strength of the drill string. During oil drilling, the drill string must withstand enormous pressure and torque. The inclusion of drill collars makes the drill string more robust, reducing the risk of breaking or deforming.

Applying Weight on Bit

Drill collars use their weight and rigidity to effectively apply weight on the drill bit. Increasing the weight on the bit can significantly improve the bit's drilling efficiency, thereby accelerating the drilling speed and shortening the operation cycle.

Stabilizing Drill Bit Operation

Drill collars can reduce the vibration amplitude of the drill bit, allowing it to operate more smoothly. Their design helps control the bit's wobbling and jumping, ensuring the bit advances steadily along the intended trajectory.

Controlling Well Deviation

During drilling, controlling well deviation is crucial as it directly affects the quality of the wellbore and the safety of subsequent operations. Drill collars, through their structural characteristics and functional mechanisms, help maintain the verticality of the wellbore or drill according to the predetermined direction.

Transmitting Torque

Drill collars play a role in transmitting torque in drilling operations, transferring power from surface equipment to the drill bit. Efficient torque transmission ensures that the bit receives sufficient power to drill, thereby improving operational efficiency.

Material Selection and Variety

Drill collars are generally made from high-strength materials like AISI 4145H chromium-molybdenum alloy steel, ensuring sufficient strength and corrosion resistance during use. Depending on the actual needs, drill collars can be classified into various types such as spiral drill collars, non-magnetic drill collars, and integral drill collars, each with specific applications and advantages.

2.Specific Applications of Drill Collars in Petroleum Operations

Precise Control of Weight on Bit

To accurately control the weight applied to the drill bit, drillers carefully monitor the surface weight measured when the bit is just off the bottom of the hole. Next, the drill string (and bit) is slowly and carefully lowered until it touches the bottom. As the driller continues to lower the top of the drill string, the weight on the bit increases, while the measured hanging weight at the surface decreases correspondingly. If the surface measurement shows a weight reduction of 20,000 pounds (9,080 kilograms) compared to when the bit was off the bottom, there should be 20,000 pounds of force on the bit (in a vertical well). Downhole MWD sensors can more accurately measure the weight on the bit and transmit the data to the surface.

Wellbore Trajectory Control

The BHA containing drill collars is fundamental for controlling the wellbore trajectory. Controlling well deviation is essential during drilling as it directly affects the wellbore quality and the safety of subsequent operations. Drill collars, through their structural characteristics and functional mechanisms, help maintain the verticality of the wellbore or drill according to the predetermined direction.

Efficient Torque Transmission

Drill collars play a role in transmitting torque during drilling operations, transferring power from surface equipment to the drill bit. Efficient torque transmission ensures that the bit receives sufficient power to drill, thereby improving operational efficiency.

3.Conclusion

Drill collars play a multifaceted role in petroleum operations, being a crucial piece of equipment for ensuring smooth drilling operations. By enhancing drill string strength, applying weight on the bit, stabilizing drill bit operation, controlling well deviation, and efficiently transmitting torque, drill collars provide essential support for drilling operations. Understanding the importance and working principles of drill collars is vital for successful drilling operations. Selecting the appropriate type and material of drill collars can significantly enhance drilling efficiency, reduce operational risks, and ensure wellbore quality.


By exploring the roles of drill collars in petroleum operations, we can better appreciate the importance and practical applications of this critical tool in the drilling process. This understanding not only aids in improving drilling efficiency and safety but also provides valuable guidance and reference for drilling engineers in their practical operations.
