API Drill Pipe

Date:2024-07-03Tags:Drill Pipe, API, API 5DP Drill Pipe

API drill pipe is an indispensable and important component in oil drilling operations. It has high strength, high toughness and high wear resistance, and can withstand extreme conditions and huge loads in drilling operations. The main features and requirements of API standard drill pipe include size, material, mechanical properties, chemical composition, hardness, etc., to ensure that its quality and performance meet international standards, thereby improving the safety and efficiency of drilling operations. Just like API 5CT is the standard for casing and tubing, there is also API 5DP standard for drill pipe.

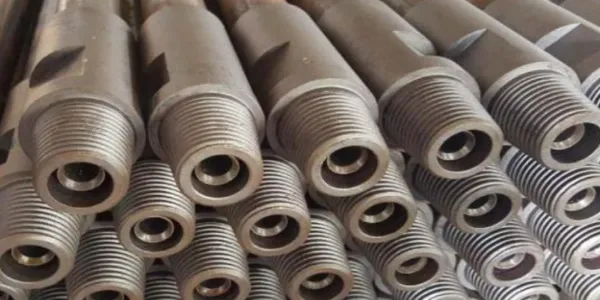

Drill Pipe

What is API 5DP?

API 5DP is a drill pipe standard established by the American Petroleum Institute (API). It specifically addresses the design, manufacturing, and performance criteria for drill pipe. API 5DP applies to rotary drill pipe, straight drill pipe, and drill pipe joints used in oil and gas drilling. It outlines size ranges, material requirements, mechanical properties, chemical compositions, and inspection and testing methods for drill pipe. Drill pipe is typically crafted from high-strength low-alloy steel (HSLA), which is heat-treated, quenched, and tempered to achieve the necessary strength, toughness, and wear resistance. The manufacturing process involves steps such as heat treatment of pipe billets, forging or rolling, final rolling, trimming, and inspection to ensure compliance with API 5DP requirements.


Strength and Performance of API Standard Drill Pipe

The strength of drill pipe is usually expressed by its tensile strength. The tensile strength ranges from 100,000 psi to over 1,000,000 psi, depending on the type and grade of drill pipe. Drill pipe with high tensile strength can better transmit torque, withstand axial loads, and perform drilling tasks at different depths and complex geological conditions. The strength of drill pipe is a key factor in its durability and good performance in harsh drilling environments.


Mechanical Properties and Grades
API 5DP defines the mechanical properties for various drill pipe grades, including tensile strength, yield strength, elongation, and impact energy. Common grades include E75, X95, G105, and S135, each suited for different working conditions and requirements. The standard specifies the chemical composition of drill pipe materials to meet stringent standards and performance requirements. Chemical composition significantly impacts the strength, corrosion resistance, and weldability of drill pipe, necessitating strict control.

Size and Marking
API 5DP sets the standard size range for drill pipe, covering outer diameter, inner diameter, and length. Typical length specifications are R1, R2, and R3. Each drill pipe must be marked according to API 5DP standards to indicate it has passed the required inspections and tests. The standard mandates thorough inspection and testing of each drill pipe, including chemical analysis, mechanical property testing (such as tensile and hardness tests), impact testing, dimensional measurement, and visual inspection to ensure the drill pipe can be safely and reliably used in drilling operations.


API standard drill pipe material and processing standards

API standards have very strict requirements on the materials and processing of drill pipes. Common materials are high-strength low-alloy steel (HSLA), which are specially treated to have excellent durability and fatigue resistance. The API 5DP standard specifies the steel grades of drill pipes, including E75, X95, G105, S135 and other grades to meet different drilling needs. The two ends of the drill pipe body are usually connected together by butt welding and thickened. According to the different thickening methods, the thickening methods of the drill pipe ends can be divided into three types: internal thickening (IU), external thickening (EU), internal and external thickening (IEU), etc.


Standard drill pipe mainly includes the following types:

Ordinary drill pipe (API 5DP drill pipe): This is the most common type of drill pipe and is widely used in conventional drilling operations. API 5DP drill pipe is made of high-strength low-alloy steel (HSLA) and has excellent mechanical properties and durability. Its main function is to transmit the torque of the drilling rig and transport drilling fluid to achieve effective drilling operations.


Heavy Weight Drill Pipe (HWDP): Heavy Weight Drill Pipe is designed with higher strength and durability and is specially used for deep well drilling and high-intensity working environments. HWDP has a larger wall thickness and weight, which can provide additional stability and fatigue resistance in deep well drilling. It is usually used to connect the drill bit and ordinary drill pipe to reduce the vibration and wear of the drill bit and extend the service life of the drill bit.


Downhole Drill Pipe: Downhole drill pipe is specially used for specific downhole operations, such as geological exploration and logging. They usually need to have higher precision and special design to meet the requirements of different downhole environments. Downhole drill pipes are strictly controlled in material selection and manufacturing process to ensure excellent performance and reliability under complex downhole conditions.


Kelly: Kelly is mainly used to transmit higher torque, and common shapes are square and hexagonal. Kelly is designed to provide a larger contact area and higher torque transmission efficiency, suitable for drilling operations with high torque requirements. They are usually used between the power head and drill pipe of the drilling rig to achieve efficient torque transmission and drilling operations.


API standard drill pipe has a wide range of sizes to meet the needs of different drilling operations. The outer diameter of the drill pipe is usually between 60.32mm and 168.28mm, while the inner diameter is between 6.45mm and 12.7mm. According to different usage scenarios and needs, the length of the drill pipe is divided into three specifications: R1, R2, and R3. The length range of R1 is 18-22 feet (about 5.49-6.71 meters), the length range of R2 is 27-30 feet (about 8.23-9.14 meters), and the length range of R3 is 38-45 feet (about 11.58-13.72 meters). This length division allows the drill pipe to be flexibly selected according to the well depth and operation requirements.


Summary

API drill pipe is a vital tool in oil drilling. Its high strength, high durability and high reliability are the key to ensure the safety and efficiency of drilling operations. API standards set strict requirements for the design, manufacture and inspection of drill pipes and drill pipe joints, providing reliable technical support for the oil drilling industry. Drilling practitioners should study and understand these standards in depth, strictly implement relevant regulations, and ensure the smooth progress of drilling operations.

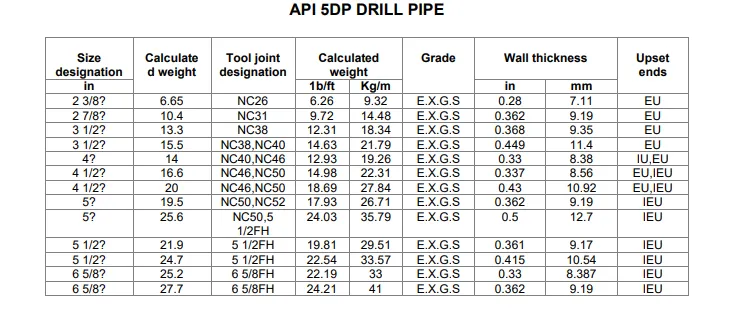

API 5DP Drill Pipe
