Overview of API 5CRA
API 5CRA is a standard for corrosion-resistant alloy (CRA) seamless pipes used for casing, tubing, and pup joint stock. First published in 2010 and reaffirmed in 2015, the API 5CRA specification is currently identical to ISO 13680, titled "Petroleum and natural gas industries - Corrosion-resistant alloy seamless steel pipe for use as casing and tubing , pup joints - Technical delivery conditions." This specification provides a set of quality control requirements to ensure the reliability and performance of these pipes in various applications.
As the demand for deep and ultra-deep oil and gas resources increases globally, particularly those containing highly corrosive substances like H2S, CO2, and Cl-, the performance requirements for tubing pup joints have become more stringent. In China’s western oilfields, which contain high concentrations of corrosive substances, high-alloy materials such as nickel-based alloys and super stainless steels are widely used for safety operation strings and downhole equipment. Titanium alloys, due to their high strength-to-weight ratio and excellent corrosion resistance, have become a preferred alternative to nickel-based alloys. However, titanium alloy pipe thread connectors have high surface friction, making them prone to scratches and wear. Additionally, when threaded connections are made with other materials like low-alloy steel, nickel-based alloys, and stainless steel, especially with titanium alloy tubing pup joints, galvanic and crevice corrosion can occur at the connection points, leading to accelerated failure of the components. These pup joints must ensure safe operation while maintaining good performance and durability in highly corrosive environments.
API 5CRA is a standard for corrosion-resistant alloy (CRA) pup joint pipes used in the oil and gas industry issued by the American Petroleum Institute (API). The standard includes requirements for materials, dimensions, quality control and testing to ensure that CRA pipes have good corrosion resistance in harsh environments. These pipes are usually used in subsea oil and gas development, sour medium transportation and high temperature and high pressure environments, which can effectively extend the service life of the pipes and reduce maintenance costs.
The API 5CRA specification provides manufacturers with a set of stringent technical requirements, including standards for chemical composition, mechanical properties, nondestructive testing, and heat treatment. These specifications ensure the high quality of corrosion-resistant alloy seamless pipes, enabling long-term use in harsh downhole environments. The implementation of API 5CRA has significantly enhanced the durability and safety of pipes and equipment in the oil and gas industry.

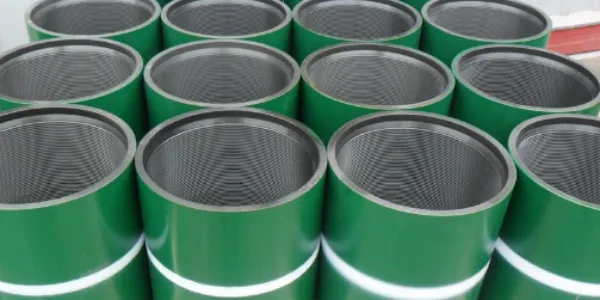

Pup joints are a common type of fitting used in industrial pipeline connections, divided into tubing pup joints and casing pup joints. A tubing pup joint is essentially a short piece of tubing, with the only difference from standard tubing being its shorter length. The lengths of pup joints are typically 0.25 meters, 0.5 meters, 1 meter, 1.5 meters, etc., and they are often used to assemble downhole tubing strings. Common types of pup joints include double pin pup joints (PIN X PIN) and special-thread pup joints, such as HYDRIL CS 3-1/2" 9.2PPF, P110 pup joints, and special-thread VAM TOP 3-1/2" 9.2PPF P110 pup joints.
Tubing pup joints play a crucial role in oil extraction. Although they are a common fitting in industrial pipeline connections, they are essential in the oil extraction process. The primary function of tubing pup joints is to adjust the length of the tubing string at the wellhead, often referred to as alignment joints. They are also commonly used in drill string connections, such as connecting drill collars to drill collars, drill collars to drill bits, drill collars to drill pipes, kellys to drill pipes, and in connecting core drilling tools and fishing tools.
Their main structural characteristics are that both ends have coarse threads. Depending on the structure of the connected parts, the thread type can sometimes be box (female) on one end and pin (male) on the other, or both ends can be pin or both ends box. The thread form can sometimes be the same on both ends, such as flush joint, regular joint, or upset joint, or different on each end, such as one end being flush joint and the other end regular joint.
Main materials and processes of oil pup joint
The main materials of oil casing pup joints are J55, K55, N80, L80, C90, T95 and P110. Its production process usually includes hot rolling process and cold drawing (rolling) seamless steel pipe process. The main steps are as follows:
Cold drawing (rolling) process: round tube billet → heating → perforation → heading → annealing → pickling → oiling (copper plating) → multi-pass cold drawing (cold rolling) → billet tube → heat treatment → straightening → water pressure test (flaw detection) → marking → storage.
Specifications and Uses of Tubing Pup Joints
The specifications of tubing pup joints usually range from 1.9" to 4-1/2". The thread types include EU, NU, and P, and the steel grades include J55, K55, N80, L80, and P110. The length ranges from 2 feet to 20 feet. Tubing pup joints are used to adjust the length of the tubing string at the wellhead, playing an important role. Pup joints not only function in connecting and adjusting during the drilling process but also adapt to various harsh conditions in different downhole environments.
Future Development of the API 5CRA Specification
The implementation of the API 5CRA specification provides strong support for the production and application of corrosion-resistant alloy seamless pipes. The strict quality control requirements of this specification ensure the reliability and performance of the products in various complex downhole environments, guaranteeing the safe production and efficient operation of the oil and gas industry. As technology continues to advance and market demands continue to evolve, the API 5CRA specification will also be continuously updated and improved to meet the future challenges and needs of oil and gas extraction.
Conclusion
The API 5CRA standard holds an important position in the oil and gas industry. As the development of oil and gas resources progresses to deeper levels and more complex environments, the demand for corrosion-resistant alloy seamless pipes and high-performance pup joints will continue to increase. The API 5CRA standard provides strict quality control requirements to ensure the reliability and durability of these pipes in harsh environments. In the future, as technology develops and market demands change, the API 5CRA standard will continue to be updated and improved, providing ongoing support for the safe and efficient operation of the oil and gas industry.
