Drill Pipe VS Casing Pipe

Date:2024-07-04Tags:drill pipe, casing pipe, OCTG, casing and tubing

In the oil and gas industry, oil casing pipe pipe pipe and oil drill pipe are two key tubular structures. Although they are similar, they are both pipe materials used inside the wellbore, but they play completely different roles and functions in the drilling and production process. There are significant differences in design, purpose, material selection, and requirements in the operating environment. Oil Country Tubular Goods (OCTG) refers to the collection of rolled metal products, more commonly drill pipe, casing pipe and tubing for the oil industry. The following will introduce some knowledge about casing pipe and drill pipe and their differences.


Oil Drill Pipe

Oil drill pipe is a pipe specially designed for drilling operations, mainly used to transmit torque and rotational force to the drill bit to cut and penetrate the formation during underground drilling. The following are the main features and functions of oil drill pipe:

Purpose and function:

Oil drill pipe plays a key role in the drilling process. It enables the drill bit to cut and break the formation by rotating and transmitting torque, thereby achieving wellbore drilling. The drill pipe not only transmits power and torque, but also needs to maintain stability and durability under complex geological conditions.

Material and manufacturing:

Oil drill pipe is usually made of high-strength low-alloy steel (HSLA), which is specially heat-treated and quenched and tempered to provide the required strength, toughness and wear resistance. Different grades of drill pipe (such as E75, X95, G105 and S135) are designed according to working conditions and depth requirements to ensure their safety and reliability in extreme working environments.

Structure and connection:

The design of drill pipe usually includes the pipe body and the connector part. The connector part uses specific joint connection methods (such as internal thickening, external thickening or internal and external thickening) to enhance the strength and stability of the pipe body. These joints must be able to withstand high strength and high torque stress to ensure the safe operation of the drill pipe during drilling operations.

Standards and specifications:

The manufacture and use of oil drill pipe must comply with strict API standards (such as API 5DP). These standards cover the size range, chemical composition, mechanical properties, connection requirements and quality control tests of drill pipe to ensure that the drill pipe can operate safely and reliably under different geological conditions.


Oil casing pipe

Oil casing pipe  is a pipe installed inside the drilling wellbore, and its main purpose is to protect and support the wellbore structure while ensuring the safety of the groundwater layer and the stability of the wellbore. The following are the main features and functions of oil casing pipe:

Purpose and function of casing pipe:

Oil casing pipe  is installed inside the drilling wellbore to protect the wellbore from damage by the formation and environment, while supporting and stabilizing the wellbore structure. They are also used to form the surface and technical layers of the wellbore for cementing and geological monitoring of the wellbore.

Material and manufacturing of casing pipe:

Oil casing pipe  must be made of high-strength, corrosion-resistant steel to meet the challenges of high pressure, high temperature and corrosive environment downhole. According to API standards (such as API 5CT), the material and manufacturing of the casing pipe  must meet strict specifications to ensure its reliability and durability under different geological conditions.

Structure and design of casing pipe:

Oil casing pipe is usually thicker and stronger than drill pipe to withstand the high pressure and mechanical stress downhole. The casing pipe design structure enables it to maintain integrity under the influence of formation pressure, and the casing pipe  is fixed inside the wellbore through cementing technology to prevent oil and gas leakage and formation pollution.

Standards and specifications of casing pipe:

According to API 5CT standard, the manufacture and use of oil casing pipe must meet the requirements of different grades (such as J55, K55, N80, L80, P110) and product specification levels (PSL-1, PSL-2, PSL-3). These standards cover the size, chemical composition, mechanical properties, connection requirements and quality control tests of the casing pipe  to ensure that the casing pipe pipe can operate safely and reliably in complex downhole environments.

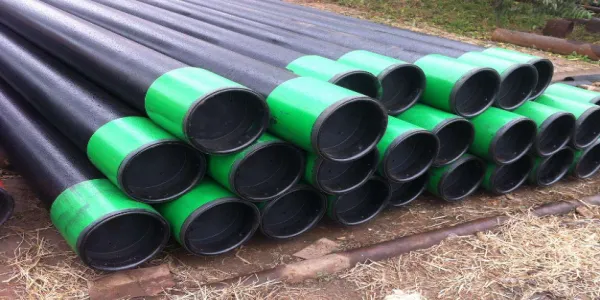

casing pipe


Differences and comparisons between drill pipe and casing pipe

1. Different uses and functions:

Oil drill pipe is mainly used to transmit force and torque during drilling operations, and the rotating drill bit cuts the formation; while oil casing pipe is mainly used to support and protect the wellbore structure, ensuring the integrity of the wellbore and the safety of the groundwater layer.

2. Different materials and manufacturing requirements:

Oil drill pipe requires high-strength and high-wear-resistant steel, and undergoes special heat treatment and tempering treatment; while oil casing pipe requires corrosion-resistant and high-strength steel that can cope with high pressure, high temperature and corrosive environment.

3. Structural and design differences:

Oil drill pipe is usually thinner and designed to transmit rotational force and torque; oil casing pipe is thicker and designed to withstand downhole high pressure and mechanical stress, and is fixed inside the wellbore by cementing.

4. Differences in standards and specifications:

Although both oil drill pipe and oil casing pipe must comply with API standards, their coverage and requirements are different. The drill pipe standard is mainly API 5DP, while the casing pipe standard is mainly API 5CT.


Conclusion

As key components in the oil and gas industry, oil drill pipe and oil casing pipe are both tubular structures in form, but they have significant differences in use, material selection, manufacturing process and requirements in the operating environment. Understanding and distinguishing these differences is necessary for the correct selection and application of each component in the drilling and production process to ensure the safe, stable and efficient operation of the wellbore.
