OCTG casing and tubing

Date:2024-07-01Tags:OCTG, casing and tubing, Drill Pipe, API 5CT

Oil Country Tubular Goods (OCTG) is a vital pipeline product in oil and gas production, mainly including drill pipe, casing and tubing. These pipes are widely used in oil and gas well construction and production on land and offshore. OCTG not only needs to meet the specifications of each customer, but also must comply with the requirements of API 5L & 5CT, ISO, EN and other relevant standards.


Main components of OCTG

Drill Pipe

Drill pipe is a key pipe used in drilling operations, connecting drilling equipment and drill bits. Drill pipes are usually high-strength and durable, and can withstand the high torque and tensile forces generated during drilling. Its outer diameter is generally 2-6.5 inches (50-165mm) and its length is between 5-14 meters. The drill pipe transports drilling fluid to the drill bit through the drill string to cool and lubricate the drill bit, and brings the cuttings back to the surface. Due to the extremely harsh working environment, drill pipes are usually made of seamless steel pipes to ensure their reliability under high pressure and high stress.


Casing

Casing is a large diameter pipe installed in a borehole, mainly used to provide stability during the production of oil and gas wells. Casing can resist axial tension and is fixed to the well wall by cement to prevent well wall collapse and groundwater contamination, while providing support for the installation of production equipment. Casing usually meets API 5CT standards and has a variety of steel grades, such as J55/K55, N80, L80, C90, T95 and P110, with different connection types, such as BTC (Buttress Thread Connection), LTC (Long Thread Connection) and STC (Short Thread Connection). The maximum diameter of casing can reach 26 inches, which is an important part of the wellbore structure.

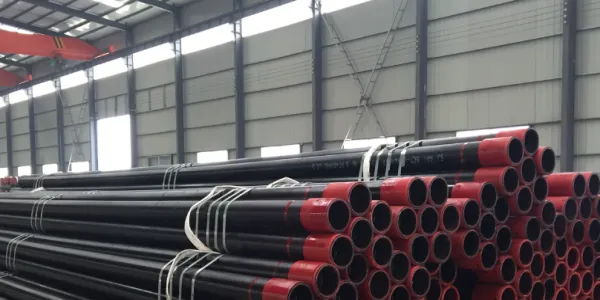

 casing and tubing

Tubing

Tubing is inserted inside casing and is used to transport oil or gas from the production formation to the surface processing facilities. Tubing is a simpler component in OCTG, usually in 30-foot (about 9-meter) segments with threaded connections. Tubing must be able to withstand the pressure and stress generated during production and resist the loads and deformations associated with production and well repair. The manufacturing process of tubing is similar to that of casing, but it usually undergoes an additional upsetting process to increase thickness, thereby enhancing its strength and durability. Tubing under API 5CT standard has a variety of material grades (such as J55/K55, N80, L80, P110, etc.) and a variety of end types (such as BTC, EUE, NUE and advanced connection), among which EUE (External Upset End) with thickened connection is more common.


Characteristics and testing of OCTG pipes

All OCTG pipes need to have reliable hardness and durability, which is achieved by using manganese and chromium as the main alloying elements. These alloying elements can increase the hardness of the pipe, ensuring its adhesion and durability in harsh environments. In recent years, the application of mixed alloys and molybdenum has further improved the performance of OCTG pipes, making them harder and more resistant to sulfide stress cracking than ever before. These improvements make modern oil-specific pipes more resilient and well protected.

In order to ensure the quality and performance of pipes, the oil and gas industry requires that any pipe used in critical applications must be inspected according to high quality levels. API standards require inspection plans and supporting data to verify whether the pipe inspection plan is effective in the inspection task. Common inspection methods include magnetic flux leakage and ultrasonic joint inspection systems, which are suitable for casing, pipes, drill pipes and other types of oil and gas pipes; eddy current and ultrasonic joint inspection systems are suitable for sucker rods and umbilicals.


Application and Advantages of OCTG Casing and Tubing

OCTG casing and tubing play a vital role in the oil and gas industry. These specialized pipes are used in the construction of oil and gas wells, providing structural support and ensuring the integrity of the wellbore. OCTG casing and tubing are designed to withstand the harsh conditions of drilling and production, making them an essential component in the extraction of oil and gas resources.

Corrosion Resistance

The harsh conditions of drilling and production can cause conventional pipes to corrode and degrade over time, leading to leaks and failures. OCTG casing and tubing are specifically designed to resist corrosion, ensuring the long-term integrity of the wellbore and reducing the risk of environmental contamination.

Versatility

OCTG casing and tubing are available in a variety of sizes, grades, and specifications and can be customized to the specific requirements of each well. Whether drilling in shallow or deep water, onshore or offshore, or in conventional or unconventional reservoirs, OCTG casing and tubing can be customized to provide the necessary structural support and protection.

Efficient Production

OCTG casing and tubing are designed to provide a smooth and consistent flow of oil and gas from the reservoir to the surface, minimizing pressure drop and optimizing productivity. By using OCTG casing and tubing, operators can maximize the recovery of oil and gas resources and improve the overall efficiency of their operations.

Economic Benefits

While these pipes may cost more upfront than traditional pipes, their durability and longevity can result in significant cost savings over the life of the well. By reducing the need for frequent repairs and replacements, OCTG casing and tubing can help operators minimize downtime and maintenance costs, ultimately increasing the profitability of their operations.


How to Choose the Right OCTG Casing and Tubing for Different Well Conditions

Choosing the right OCTG casing and tubing requires careful consideration of various factors, including well depth, pressure, temperature, corrosive environment, mechanical properties, and connection type. Here are some key considerations:

Well Depth

Deeper wells require stronger, more durable casing and tubing to withstand the higher pressures and temperatures at greater depths. Generally, thicker-walled casing and tubing are used in deeper wells to provide the necessary strength and integrity.

Pressure and Temperature

High-Pressure, High-Temperature (HPHT) wells require OCTG casing and tubing that can withstand extreme conditions without compromising safety or performance. Specialized materials and manufacturing processes are used to produce OCTG products that can withstand HPHT environments, ensuring the integrity of the wellbore.

Corrosive Environment

Wells located in corrosive environments, such as those with high levels of hydrogen sulfide (H2S) or carbon dioxide (CO2), require corrosion-resistant materials to prevent degradation and failure of the casing and tubing. Corrosion-resistant alloys such as stainless steel or nickel alloys are often used in these applications to ensure the life and reliability of the well.

Mechanical Properties

The tensile strength, yield strength, and ductility of materials are key factors in determining the performance and reliability of oil well casing and tubing. Selecting the correct OCTG casing and tubing material and grade is critical to ensuring the structural integrity and service life of the wellbore.

Connection Types

The connection type for OCTG casing and tubing is also an important consideration when selecting the right product. Threaded and coupled connections are commonly used for most applications, providing a secure and leak-proof seal between joints. Advanced connections, such as semi-advanced or advanced threaded connections, provide enhanced performance and reliability in challenging environments, such as HPHT wells or sour gas wells.


Conclusion

Oil Country Tubular Goods (OCTG) are essential in oil and gas production and are widely used in drilling, completion and production operations. By selecting the right OCTG products and ensuring they meet relevant standards and specifications, operators can ensure the long-term integrity of the well, maximize the recovery of oil and gas resources, and improve the overall profitability of operations. Partnering with experienced OCTG suppliers and manufacturers can help operators navigate the complexity of selecting the right casing and tubing for their specific well conditions, ultimately achieving successful drilling and production operations.
