Drill Collars vs Heavy Weight Drill Pipe (HWDP)

In drilling operations, the design of the drill string plays a critical role in ensuring both efficiency and safety. Two essential components of the drill string are the drill collar and HWDP (Heavy Weight Drill Pipe). Understanding the differences between these two components helps optimize drilling performance and prevents equipment failures.

What is a Drill Collar?

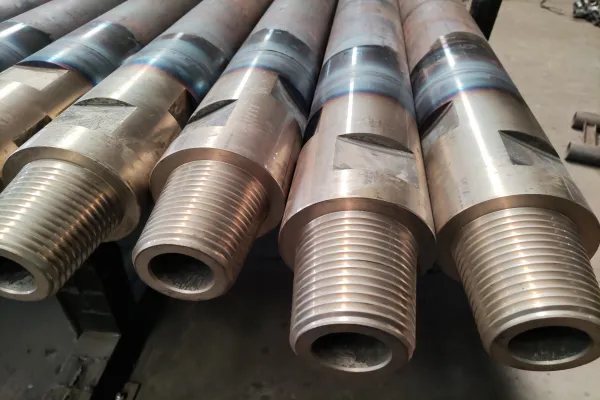

A drill collar is a thick-walled, heavy-duty steel pipe used in drilling operations to provide the necessary weight on the drill bit. It is typically placed directly above the drill bit in the drill string. Due to its high density and rigidity, the drill collar helps maintain the vertical trajectory of the borehole and provides the downward force needed to break through rock formations.

Key Characteristics of Drill Collars:

Made from solid bar steel or non-magnetic materials.
High wall thickness for added weight and strength.
Uniform cross-section without a flexible structure.
Primary function is to apply weight on bit (WOB).
High resistance to bending and buckling.
Can be equipped with spiral grooves to reduce differential sticking.

HWDP Meaning

HWDP (Heavy Weight Drill Pipe) is an intermediate drill string component that serves as a transition between drill pipe and drill collars. HWDP combines the flexibility of drill pipe with the weight of drill collars, making it ideal for directional and horizontal drilling.

Key Characteristics of HWDP:

Thicker walls compared to regular drill pipes but thinner than drill collars.
Central wear-resistant bands (also called center wear pads).
Provides moderate weight on the drill bit.
High tensile strength with some flexibility.

Reduces fatigue in the drill string.

Key Differences Between Drill Collars and HWDP

Aspect	Drill Collar	HWDP
Weight on Bit	High	Moderate
Flexibility	Low	High
Application	Vertical Wells	Directional & Horizontal Wells
Risk of Sticking	High	Low
Fatigue Resistance	Low	High
Cost	Lower	Higher

Main differences

1.Design and structure: Drill collars have a uniform thick wall design, providing high rigidity and weight; while HWDP has a thickened design in the middle of the pipe body, which increases flexibility and wear resistance.

2.Functional positioning: Drill collars are mainly used to apply the required drilling pressure on the drill bit to ensure effective rock crushing; HWDP serves as a transition between drill collars and drill pipes, providing a flexible connection to reduce drill string fatigue failure.

3.Application scenarios: Drill collars are usually used when high drilling pressure is required; HWDP is preferred when drill string fatigue needs to be reduced or when higher flexibility is required in directional drilling.

When to Use Drill Collars vs. HWDP?

Use drill collars when high weight on bit and vertical stability are required, particularly in vertical wells.

Use HWDP in directional and horizontal drilling operations to reduce fatigue and improve maneuverability.

Why the Combination Matters?

Modern drilling operations often use both drill collars and HWDP in combination. The drill collars provide the necessary weight to break through rock formations, while HWDP acts as a flexible buffer to absorb shocks and prevent fatigue failure. This combination enhances drilling performance and reduces the risk of drill string failure.

Conclusion

Drill collars and heavy weight drill pipes (HWDP) play different but complementary roles in drilling operations. Drill collars provide the necessary drilling pressure to ensure the effective operation of the drill bit, while HWDP reduces fatigue failure of the drill string by providing a flexible transition. According to specific drilling requirements, the reasonable selection and combination of these two drilling tool components can optimize the drilling process and improve operational efficiency and safety.

FAQs

1. Can HWDP replace drill collars completely?

No, HWDP cannot completely replace drill collars because it provides less weight on the drill bit and serves different purposes in the drill string.

2. What material is used to manufacture HWDP?

HWDP is typically made from AISI 4145H modified steel with hard-banding to protect against wear.

3. How long does HWDP last compared to drill collars?

HWDP generally has a longer lifespan due to its flexibility and wear-resistant features.
