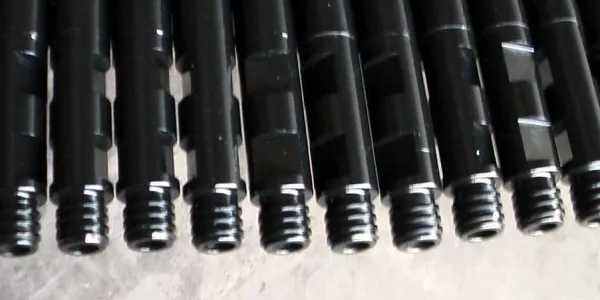

Drill pipe is a hollow thin-walled steel or aluminum alloy pipe used in drilling equipment. It is hollow so that drilling fluid can be pumped into the hole through the drill bit and returned to the annulus. Drill pipe plays a key role in oil and gas exploration, and its size and specifications have a significant impact on the drilling process. The size of drill pipe includes the outer diameter and the inner diameter, and these dimensions are usually expressed in inches. When choosing the size of drill pipe, factors such as the depth of drilling, geological conditions, and construction environment need to be considered.
Drill Pipe OD:
Conventional drill pipe OD ranges from 2-3/8 inches to 7-5/8 inches. The choice of this size depends mainly on the drilling depth and the hardness of the formation. Drill pipes with smaller OD are suitable for shallower and softer formation drilling operations, while drill pipes with larger OD are suitable for deeper and harder formation drilling tasks.
Heavier Drill Pipe (HWDP) has an OD range of 2-3/8 inches to 6-5/8 inches. Heavier Drill Pipe provides additional rigidity and stability by increasing wall thickness and weight, and is particularly suitable for drilling operations that require higher torsional and compressive strength.
Drill Collar has an OD range of 2-7/8 inches to 14 inches. The drill collar is the heaviest part of the drill string, which provides additional drilling pressure to help the drill bit break the formation rock more effectively.
The inner diameter of the drill pipe determines the mud flow rate and pressure loss. When selecting a drill pipe, you must ensure that the inner diameter is large enough to meet the needs of mud pumping. Mud plays an important role in cooling the drill bit, carrying drill cuttings and stabilizing the wellbore during the drilling process, so the choice of inner diameter is crucial.
The inner diameter of drill pipes of different models is different, for example:
The NC26 model has an outer diameter of 3-3/8 inches and an inner diameter of 1-3/4 inches. This size of drill pipe is suitable for medium-depth drilling operations and provides moderate fluid flow capacity and mechanical strength.
The NC31 model has an outer diameter of 4-1/8 inches and an inner diameter of 2 inches; when the outer diameter is 4-3/8 inches, the inner diameter is 1-5/8 inches. The larger inner diameter can provide greater fluid flow capacity and is suitable for deeper or more complex formation conditions.
The NC38 model has an outer diameter of 5 inches and an inner diameter of 2-9/16 inches, 2-7/16 inches, and 3-1/8 inches. The choice of multiple specifications can be adjusted according to specific drilling needs to provide more flexible operation plans.
Depending on their uses and structures, drill pipes are mainly divided into the following three categories:
Square Drill Pipes:
Square drill pipes are usually used above the drill string and come in two shapes: square and hexagonal. Their main function is to bear the full force of the rotating column and act as a circulation channel. Square drill pipes are able to transmit large torque and weight and are suitable for drilling operations that require high mechanical strength. Square drill pipes are superior in transmitting power because their cross-sectional shape provides a larger contact area and higher torsion resistance.
Conventional Drill Pipes:
Conventional drill pipes are a basic component of drilling and are used to increase drilling depth. They are usually made of seamless steel pipes with a thickness range of 9 to 11 mm. Conventional drill pipes play an important role in transmitting rotational power and conveying drilling mud during drilling. Conventional drill pipes are usually made of high-strength alloy steel to ensure their durability in high-stress and high-wear environments.
HWDP is usually up to 10 meters in length and has a wall thickness three times that of regular drill pipe. The main function of HWDP is to increase the rigidity of the drill string and prevent damage during drilling. In addition, they can save drilling time and improve drilling efficiency. HWDP is usually located at the bottom of the drill string and provides additional drilling pressure together with the drill collar to help the drill bit break the formation more effectively.
Different drill pipe models and specifications are suitable for different drilling needs. The specific selection depends on factors such as drilling depth, construction environment and geological conditions. Common drill pipe models and specifications include:
Drill pipe type:
Double Channel: This drill pipe design has two independent channels, which can transmit two different fluids at the same time, and is suitable for complex drilling operations.
Triple Channel: Triple Channel drill pipe further increases the ability of fluid transmission and can be used in more complex and demanding drilling environments.
Rotary: Rotary drill pipe is suitable for traditional rotary drilling operations, and the drill bit breaks the rock formation through rotary motion.
Drill pipe length:
General lengths are 3 meters, 6 meters, 9 meters and 12 meters. Drill pipes of different lengths can be selected according to drilling depth and operation requirements, and can be flexibly adapted to different construction scenarios.
Drill pipe diameter:
Common diameters are 60 mm, 73 mm, 89 mm and 114 mm, etc. Drill pipes of different diameters are suitable for different drilling depths and formation conditions. Choosing the appropriate diameter can improve drilling efficiency and safety.
Drill pipe material:
Drill pipe is usually made of carbon steel or alloy steel to meet the requirements of high strength and wear resistance. Alloy steel material provides higher mechanical properties and corrosion resistance, suitable for more demanding drilling environments.
Drill pipe threaded joint type:
Common threaded joint types include API thread type, IF thread type and FH thread type. Different threaded joint types provide different connection strength and sealing performance. Choosing the right threaded joint can improve the reliability and safety of drilling operations.
Drill pipe needs to have different performance requirements in different application scenarios. Common drill pipe application scenarios include geological drilling, oil and gas exploration, trenchless engineering and gas emission.
Geological drilling:
In geological drilling, drill pipe is mainly used for sampling and analyzing geological structures. Common specifications of geological drill pipe include 42.46.5 mm, 42.46.8 mm, 506.5 mm, 60.37.1 mm, etc. These specifications of drill pipe need to have good bending and torsion resistance to ensure drilling results under complex geological conditions.
Oil and gas exploration:
Oil drill pipe is an indispensable tool in oil exploration and extraction. Its working principle is to transfer the rotating drill bit to the underground rock formation through the drill pipe. These drill pipes are usually made of high-strength alloy steel or composite metal materials to cope with high-intensity drilling requirements. Oil drill pipes need to have high torsional strength and high wear resistance to ensure stability during long-term high-intensity operations.
Trenchless engineering:
In trenchless engineering, drill pipes need to have high bending and torsion resistance to adapt to complex underground environments. Trenchless engineering is often used in urban infrastructure construction, such as underground pipeline laying, and drill pipes need to perform high-precision operations in a small space.
Gas emission:
In gas emission and water well drilling rigs, drill pipes need to have good corrosion resistance and high strength to ensure long-term stable operation. Gas emission drill pipes are usually made of highly corrosion-resistant materials to cope with the corrosive environment of underground gas.
The manufacturing process of drill pipes includes multiple links such as steel selection, forming, heat treatment and subsequent processing. Strict quality control is required at every stage to ensure that the drill pipe has excellent mechanical properties and service life.
Steel selection:
Drill pipes are usually made of carbon steel or alloy steel. The chemical composition and impurity content of steel directly affect the mechanical properties and corrosion resistance of drill pipes. High-quality steel can improve the strength and durability of drill pipes and extend their service life.
Forming process:
The forming process of drill pipes includes hot rolling, cold drawing and seamless steel pipe forming. Different forming processes are suitable for the production of drill pipes of different specifications and materials. Hot rolling can improve the density and uniformity of steel, while cold drawing can improve the dimensional accuracy and surface finish of drill pipes.
Heat treatment:
Heat treatment is an important part of improving the performance of drill pipes. Through processes such as annealing, tempering and normalizing, the metallographic structure of steel can be optimized, and its strength and wear resistance can be improved. The selection of heat treatment process needs to be optimized according to the material and application requirements of the drill pipe to ensure its reliable performance in high-stress environments.
Subsequent processing:
Subsequent processing of drill pipes includes processes such as turning, grinding and surface treatment. These processes can improve the dimensional accuracy and surface quality of drill pipes. Surface treatment processes such as galvanizing and coating can improve the corrosion resistance of drill pipes and extend their service life.
Drill pipes play an important role in oil and gas exploration, and drill pipes size and classification directly affect drilling efficiency and safety. By reasonably selecting the size, model and material of drill pipes, and adopting advanced manufacturing processes and strict quality control, high-performance drill pipes can be produced to meet the needs of different application scenarios. In the future, with the continuous advancement of technology, the performance and quality of drill pipes will be further improved, providing more reliable tools for oil and gas exploration.
