How to choose well casing size?

Selecting oil well casing sizes requires a bottom-up approach: first, the size of the production tubing is determined based on anticipated flow rate requirements; subsequently, it is ensured that sufficient radial clearance—typically [ ]inches—remains between the casing and the wellbore wall to facilitate cementing operations. Casing pipe selection is typically guided by API 5CT standards, aiming to balance the casing's mechanical strength—specifically its resistance to collapse, internal pressure burst, and tension—against factors such as formation pressure, well depth, and wellbore stability.

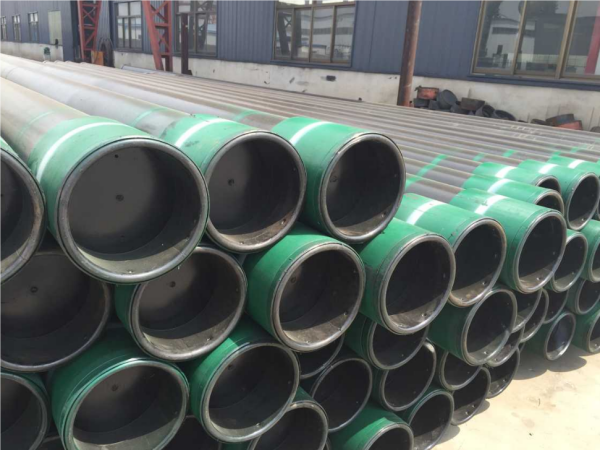

How to Select the Appropriate Well Casing Sizes?

1. Determine the Bottom-Most Casing Size Based on Production Requirements
The ultimate objective of well casing is to facilitate oil production. If you plan to utilize high-displacement electric submersible pumps (ESPs) or large-scale downhole separators, you will require production casing with a spacious internal diameter (e.g., 7 inches or larger). Conversely, if the well is intended for conventional beam pumping operations with relatively low production volumes, 5-inch casing may suffice.

2. Determine the Number of Casing Strings and Intermediate Sizes Based on Formation Risks (Designing from the Bottom Up)
The rock formations situated thousands of meters underground are not uniformly solid or structurally intact. Engineers must assess the specific geological conditions to determine the requisite number of casing strings to be installed, as well as the precise setting depth for each string.

3. Adhere to International API Standard Sequences

API Standard Sequences: The global petroleum industry widely adheres to the casing size standards established by the American Petroleum Institute (API). For instance, the typical casing size sequence for a standard deep well is as follows: 26-inch Conductor Pipe → 13-3/8-inch Surface Casing → 9-5/8-inch Intermediate Casing → 7-inch Production Casing.When selecting casing sizes, it is essential to ensure an adequate annular clearance while also taking into account the required thickness of the cement sheath.

4. Select appropriate costs and allocations.

Casing design is all about balancing performance and cost. Shallow sections, which mainly provide stability and prevent collapse, usually use lower-grade, cost-effective steel such as J55 or K55. Deeper sections face higher pressure and temperature, so stronger grades like P110 or Q125 are required for safety. In addition, liner (tailpipe) technology helps reduce costs by avoiding full-length high-grade casing, instead hanging shorter casing sections only in critical zones, ensuring well integrity while significantly optimizing overall drilling expenses.

5.Common Casing Sizes by Application

Application	Typical Range	Notes
Oil & Gas	7" – 13 3/8" (surface up to production casing varies)	Depends on depth and well design
Water Wells	4" – 8" (6" commonly used)	Standard municipal and irrigation wells
Geothermal	6" – 13 3/8"	Highly dependent on temperature and depth

6.Casing Size vs Wall Thickness (General Reference)

OD Size	Typical Wall Thickness	Application Scenario
4" – 6"	Thin to medium	Shallow water wells
7" – 9 5/8"	Medium	Medium depth or moderate pressure
10 3/4" – 13 3/8"	Thick	Deep wells / high pressure

In practice, the process is not complicated. Start by confirming the well type and depth, then evaluate formation stability to estimate how much support is needed. After that, check internal and external pressure to determine wall thickness.Next, make sure the inner diameter is sufficient for tubing and future operations. Finally, compare options and choose a size that meets safety requirements without overspending.

Why Casing Size Matters ?

Casing is both structural support and a pressure barrier. If the size is too small, it may not handle external load or formation pressure, leading to collapse or deformation. If it’s oversized, costs go up without much benefit.In addition, casing also protects groundwater and isolates different zones, so sizing is directly tied to safety and long-term reliability.

Factors affecting the selection of well casing size

(1) Well depth and formation characteristics
Deeper wells and unstable geology require larger casing sizes to provide adequate support and prevent collapse. Different formation characteristics require careful evaluation to determine the most appropriate casing size for optimal well performance.

(2) Fluid characteristics and pressure levels
The type of fluid contained or extracted from the well and the expected pressure differential will influence the selection of casing size. High-pressure environments or corrosive fluids may require thicker-walled housings to ensure effective sealing.

(3) Regulatory Compliance
Regulatory standards and industry best practices dictate minimum casing size requirements based on the well's intended use, environmental considerations and public safety standards. Compliance with these regulations is necessary and affects the selection of casing size for a specific well project.

(4) Operation precautions

Planned completion and production technology also influence casing size selection. For example, installing production tubing within casing may require larger casing sizes to achieve proper annulus flow and production optimization.

Conclusion

Choosing well casing size is mostly about matching conditions rather than picking a fixed number. As long as depth, pressure, and operation needs are properly considered, it’s not difficult to find a size that is both safe and economical.

FAQ

What is the most common casing size?
Water wells commonly use 6-inch casing, while oil and gas wells vary depending on depth and pressure.

How do I choose casing thickness?
It depends on collapse and burst pressure, usually calculated based on well depth and formation pressure.

Are casing sizes standardized?
Yes, most projects follow API 5CT or similar specifications.
