How to clean oil drill pipe?

Date:2024-05-14Tags:drill pipe, pipe, casing and tubing

Petroleum exploration refers to the use of various exploration methods to understand underground geological conditions in order to find and identify oil and gas resources, understand oil generation, oil storage, oil and gas migration, accumulation, preservation and other conditions, comprehensively evaluate oil and gas prospects, and determine the conditions for oil and gas accumulation. The process of finding oil and gas storage traps in favorable areas, ascertaining the area of oil and gas fields, and clarifying the conditions and production capacity of oil and gas layers. In the process of oil exploration, drill pipes need to be used to drill underground. The current drill pipe holder only has a single fixing function. When the drill pipe is taken out, workers still need to remove mud and clean the drill pipe, which is very difficult. It is a trouble and adds to the burden on workers. Due to long-term use, oil pumping drill pipes are prone to bending, eccentric wear, fatigue fracture and other phenomena, resulting in the occurrence of well lying incidents. In the sucker rod repair process, cleaning work is very important, and the quality of cleaning directly affects the development of subsequent processes.

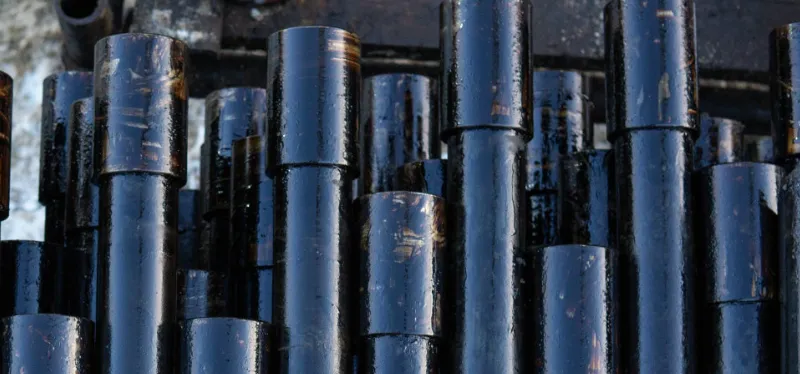

drill pipe

The repair and recycling of well pipe and drill pipe is an important measure for oil production plants to reduce the comprehensive cost of production. Improving the repair quality of oil pipes and drill pipes can ensure the quality of oil operations, extend the pump inspection cycle, reduce operation rework, and reduce operation costs. As the first process in the drill pipe repair and inspection line, cleaning can effectively remove oil, wax and scale on the inner and outer walls of the drill pipe, ensuring the cleanliness of the repaired drill pipe, and creating cleaning conditions for other processes, such as oil pipe and drill pipe cleaning There are two main processes: high-pressure water jet and hot boiling. In winter, because there are more oil pipes and drill pipes recovered on the well and the wax layer is thick and hard, hot boiling is generally used. In other seasons, high-pressure water jet cleaning is used. In addition, due to scaling on the inner wall of the drill pipe, the drill pipe was often scrapped in the past. The high-pressure water jet cleaning process has an obvious effect on cleaning the inner wall of the oil pipe and can effectively reduce the waste of drill pipes. In addition to the above methods, the editor has also compiled some methods for cleaning drill pipes:


1. Hot soak cleaning technology:

It is divided into two methods: diesel heating and soaking cleaning and water ginseng cleaning agent heating and soaking cleaning. This cleaning method is not environmentally friendly. Under the conditions of high-temperature cooking and sunlight exposure, oil stains undergo physical and chemical reactions and emit toxic gases, which can cause great physical harm to on-site workers who work in this environment for a long time and endanger workers' health. In terms of cleaning quality, Aspects: Since the drill pipes and tubing are cleaned in the pool in each well, only the oil stain on the surface of each bundle of drill pipes can be cleaned. There is a lot of oil residue in the middle seam, and the drill pipes are not cleaned cleanly, which seriously affects the quality of manual quality inspection and the flaw detection effect.


2. Medium frequency heating mechanical cleaning technology.

Its working principle is to use medium frequency heating and induction pattern to quickly heat the drill pipe to 120-200°C to dilute and melt the oil on the outer surface. Then it quickly enters the mechanical normal temperature cleaning process and uses a wire wheel and low-pressure water to wash away the oil on the surface of the rod. Oil

Sewage.


3. Thermal radiation cleaning technology.

Using burning natural gas or crude oil (electric heating) as the heat source, heat the drill pipe to about 120°C in a closed box to melt the oil on the outer surface, and then use low-pressure water and a rotating wire brush to clean the outer surface. Advantages: The equipment is simple and the sludge is easy to clean.


What aspects should be paid attention to when cleaning oil drill pipe?


1. The disassembly, assembly and cleaning of hydraulic parts should be carried out in a clean room that meets national standards. If possible, it is recommended that the operating room be pressurized so that the indoor pressure is higher than the outdoor pressure to prevent atmospheric dust pollution. If restricted by conditions, the operating room should also be isolated separately. Generally, the hydraulic parts assembly room and the mechanical processing room or fitter room are not allowed to be in the same room. It is absolutely prohibited to disassemble and assemble hydraulic parts in the open air, sheds, utility rooms or warehouses. When disassembling hydraulic parts, operators should wear work clothes with fibers that are not easy to fall off. Working cap to prevent fibers, dust, hair, dander, etc. from falling into the hydraulic system and causing artificial pollution. Smoking and eating are strictly prohibited in the operating room.


2. Hydraulic parts cleaning should be carried out on a special cleaning table. If restricted by conditions, the cleanliness of the temporary workbench must also be ensured.


3. The drill pipe cleaning fluid is allowed to use kerosene, gasoline and hydraulic oil with the same grade as the working oil of the hydraulic system.


4. Cleaned parts are not allowed to be wiped with cotton, linen, silk or chemical fiber fabrics to prevent falling fibers from contaminating the system. If necessary, clean and dry compressed air can be used to dry the components.


5. The cleaned components of the drill pipe are not allowed to be placed directly on the ground, cement floor, floor, bench and assembly workbench. They should be placed in a container with a lid and injected with clean hydraulic oil.


6. Components that have been cleaned but not yet assembled should be stored in anti-rust oil. Pay special attention to anti-rust in humid areas and seasons.
