API 5L X52 Pipe Dimensions Guide

API 5L X52 Pipe Specification: Dimensions, Sizes, Wall Thickness & PSL1 vs PSL2 Guide

API 5L X52 pipe is one of the most widely used carbon steel line pipes for oil, natural gas, water transmission, and industrial pipeline systems. Manufactured in accordance with API 5L and ISO 3183, X52 (also designated L360) offers a minimum yield strength of 52 ksi (360 MPa), providing an excellent balance between strength, weldability, and cost.

Available in seamless, ERW, LSAW, and SSAW forms, API 5L X52 pipe is suitable for onshore and offshore pipeline projects, refineries, petrochemical plants, and water transportation systems. It is supplied in PSL1 and PSL2 product specification levels, with PSL2 providing tighter chemical composition limits, mandatory impact testing, and stricter quality control for critical applications.

API 5L X52 Pipe Specification

The table below summarizes the most important specifications of API 5L Grade X52 pipe.

Item	Specification
Standard	API 5L, ISO 3183
Steel Grade	API 5L X52 (L360)
Product Specification Level	PSL1, PSL2
Pipe Types	Seamless, ERW, LSAW, SSAW
Outside Diameter	21.3 mm–2540 mm (1/2"–100")
Wall Thickness	SCH 10 to SCH XXS, customized thickness available
Length	SRL, DRL, 6 m, 12 m, 20 ft, 40 ft
End Type	Plain End, Beveled End, Threaded
Surface Coating	Black Painted, Varnished, FBE, 3LPE, 3PP, Epoxy, CRA Clad
Applications	Oil, Gas, Water, Petrochemical, Offshore Pipelines

What Is API 5L X52 Pipe?

API 5L X52 is a medium-strength carbon steel line pipe specified by the American Petroleum Institute for transporting oil, natural gas, water, and other fluids under pressure. The designation "X52" indicates a minimum yield strength of 52,000 psi (360 MPa), while the ISO equivalent designation is L360.
Compared with lower grades such as X42 or Grade B, X52 offers higher strength without significantly reducing weldability, making it one of the most frequently specified grades for long-distance pipeline construction.
API 5L X52 pipes are produced in two quality levels:
PSL1 – Standard quality requirements suitable for general pipeline applications.
PSL2 – Enhanced quality level with stricter chemical composition limits, mandatory impact testing, non-destructive testing, and improved traceability for demanding service conditions.
Because of its excellent balance of strength, toughness, and fabrication performance, X52 has become a common choice for transmission pipelines operating under medium to high pressure.

API 5L X52 Pipe Dimensions

One of the most common questions from buyers is "What sizes are available for API 5L X52 pipe?"
API 5L does not assign unique dimensions to the X52 grade. Instead, X52 pipes follow the standard dimensional requirements of API 5L and ASME B36.10M. The same outside diameter can be supplied with multiple wall thicknesses (Schedules), allowing engineers to select the required pressure rating.

Manufacturing Method	Available Diameter
Seamless	1/2"–26" (21.3–660 mm)
ERW / HFW	1/2"–24"
LSAW	16"–56"
SSAW	20"–100"

API 5L X52 Pipe Wall Thickness
API 5L X52 pipes are available in a wide range of wall thicknesses, typically supplied according to ASME B36.10M pipe schedules.
Common schedules include:
SCH 10
SCH 20
SCH 30
SCH 40
SCH STD
SCH 60
SCH XS
SCH 80
SCH 100
SCH 120
SCH 140
SCH 160
SCH XXS

A larger Schedule number represents a thicker pipe wall, which generally provides higher pressure capacity but also increases weight and material cost.

API 5L X52 Pipe Typical Pipe Dimensions

NPS	Outside Diameter	Common Schedules
2"	60.3 mm	SCH 40, SCH 80
4"	114.3 mm	SCH 40, SCH 80
6"	168.3 mm	SCH 40, SCH 80
8"	219.1 mm	SCH 20, SCH 40, SCH 80
12"	323.9 mm	SCH 20, SCH 40, SCH 80
24"	609.6 mm	SCH 20, SCH 40

API 5L X52 Pipe Types

API 5L X52 pipes can be manufactured using several production methods, each suited to different sizes and service conditions.

Pipe Type	Typical Diameter Range	Typical Applications
Seamless	Up to 26"	High-pressure systems, refineries, process piping
ERW	Up to 24"	Oil & gas gathering lines, water pipelines
LSAW	16"–56"	Long-distance transmission pipelines
SSAW	Up to 100"	Large-diameter water, gas, and piling projects

Testing and Quality Assurance for API 5L X52 Pipes

Thorough testing is vital to ensure these pipes meet safety and quality standards. Several tests are conducted, including:
Hydrostatic Test: Ensures no leaks in the weld seam or pipe body.
Bend Test: Confirms resistance to cracking under deformation.
Flattening Test: Evaluates resistance to longitudinal and circumferential cracking.
Guided Bend Test: Detects any fractures or ruptures in welds.
CVN Impact Test: Assesses impact resistance in the pipe body and heat-affected zones.

Each test is designed to guarantee the pipes' performance in real-world conditions.

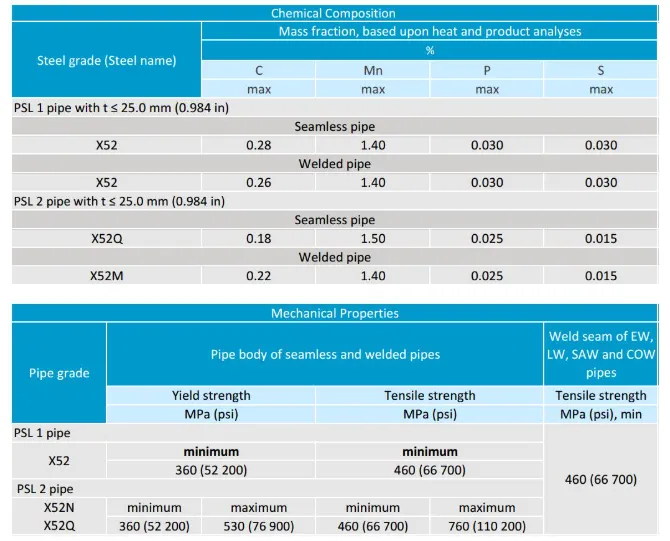

X52 PSL2 vs PSL1 Comparision

API 5L X52 (L360) PSL2 the maximum chemical content is different than PSL1; As well as the mechanical strength, is more strictly.

Applications of API 5L X52 Pipes

API 5L X52 pipes are widely used in various industries. They are primarily employed in oil and gas pipelines for long-distance transportation.
These pipes are also valuable in petrochemical plants, where high-pressure systems demand reliable materials. Offshore platforms and other structural applications benefit from their strength and durability.

Advantages of API 5L X52 Pipes

API 5L X52 pipes offer several benefits, including high strength, excellent toughness, and resistance to corrosion. Their versatility makes them suitable for onshore and offshore projects.
Additionally, their wide range of sizes and grades ensures compatibility with different operational needs. These pipes provide long-lasting performance, even in harsh environments.

APL 5L X52 pipes are essential for modern pipeline infrastructure. Their robust properties, combined with strict manufacturing standards, ensure they meet the highest industry requirements. Whether for oil, gas, or other industrial uses, these pipes deliver reliability and efficiency.

Chemical Element of API 5L Grade X52 Lsaw Pipe

Grade	C max	Mn max	P		S max	V max	Nb max	Ti max
			min	max
B	0.28	1.2	-	0.03	0.03	c.d	c,d	d
X52	0.28	1.4	-	0.03	0.03	d	d	d

API 5L X52 Seamless Pipes Chemical properties

API 5L-PSL 2 Chemical Requirements
Grade	Composition, %
	C	Si	Mn	P	S	V	Nb	Ti	Other
BN	0.24	0.4	1.2	0.025	0.015	c	c	0.04	e,l
X52N	0.24	0.45	1.4	0.025	0.015	0.1	0.1	0.04	d,e,l
BQ	0.18	0.45	1.4	0.025	0.015	0.05	0.05	0.04	e,l
X52Q	0.18	0.45	1.5	0.025	0.015	0.05	0.05	0.04	e,l

Grade	C	Si	Mn	P	S	V	Nb	Ti
API 5L X52	0.16	0.45	1.65	0.02	0.01	0.07	0.05	0.04

Wall Thickness of API 5L X52m Pipe

FAQ

1. What is API 5L X52 pipe?
API 5L X52 pipe is a carbon steel line pipe with a minimum yield strength of 52 ksi (360 MPa), used mainly for oil, gas, and water transmission pipelines.

2. Is API 5L X52 the same as L360?
Yes. API 5L X52 is equivalent to L360 because both represent a minimum yield strength of approximately 360 MPa.

3. What is the difference between API 5L X52 PSL1 and PSL2?
PSL2 has stricter chemical requirements, mandatory impact testing, and more comprehensive quality control compared with PSL1.

4. What sizes are available for API 5L X52 pipe?
API 5L X52 pipes are available from small diameter seamless pipes around 1/2 inch to large diameter welded pipes up to 100 inches.
