Inspection Methods for Well Pipe Casing

Date:2024-07-31Tags:Well Pipe Casing, casing pipe, casing and tubing

Well pipe casings(casing pipe), also known as oil-specific pipes, are primarily used in the drilling of oil and gas wells and the transportation of oil and gas. These pipes include oil drill pipes, oil casings and tubing. The oil drill pipes are used to connect the drill collar and the drill bit and transmit drilling power. During drilling and completion, oil casings support the wellbore, ensuring the smooth progress of the drilling process and normal operation after completion. The tubing is responsible for transporting oil and gas from the bottom of the well to the surface. Oil casings are considered the lifeline of well operations, as the geological conditions vary, and the downhole stress state is complex, combining tension, compression, bending, and torsion. This complexity demands high quality from the casing pipes. If the casing is damaged for any reason, it may lead to reduced production or even the abandonment of the entire well. Based on the strength of the steel itself, oil casings can be divided into different steel grades, such as J55, K55, N80, L80, C90, T95, P110, Q125, and V150. The well conditions and depth determine the steel grade used. In corrosive environments, the casing must also possess corrosion resistance. In geologically complex areas, the well pipe casing needs to have collapse resistance.

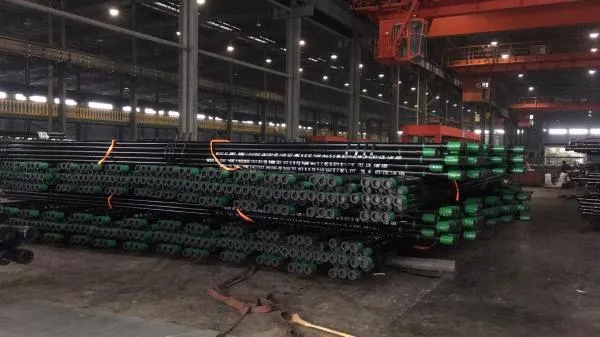

Well Pipe Casing


There are various inspection methods for oil well pipe casings, including:


1. Ultrasonic Testing

Ultrasonic testing uses the propagation of ultrasonic waves in the material being tested, where the acoustic properties and internal structure changes of the material affect the propagation of ultrasonic waves. By analyzing the degree and condition of these effects, one can understand the material's performance and structural changes. Ultrasonic testing is a non-destructive testing method that effectively detects internal defects such as cracks and pores.


2. Radiographic Testing

Radiographic testing involves passing radiation through the material, where differences in radiation amounts passing through normal areas and defects create a contrast on the film. This method can intuitively reflect the internal defects of the material and is suitable for inspecting welds, castings, and other internal defects. It offers high precision but requires strict safety measures during operation.


3. Penetrant Testing

Penetrant testing uses the capillary action of liquids to infiltrate the open defects on the surface of solid materials. A developer then extracts the penetrant to reveal the defects. This method is suitable for various metal and ceramic workpieces and can quickly detect surface fatigue, stress corrosion, and welding cracks. The process from penetration to defect visualization usually takes about half an hour.


4. Magnetic Particle Testing

Magnetic particle testing uses the magnetic leakage at defect locations to attract magnetic particles, forming magnetic marks that indicate defects. This method can detect surface and near-surface defects, with the nature of defects being easily identifiable. Magnetic particle testing does not affect paint or plating layers and has high sensitivity, making it suitable for inspecting ferromagnetic materials.


5. Eddy Current Testing

Eddy current testing utilizes the eddy currents induced in the workpiece by a magnetic coil to analyze the internal quality of the workpiece. This method is suitable for detecting surface and near-surface defects in various conductive materials. The parameters are complex to control, and the test results are challenging to interpret, but it can indirectly measure defect lengths.


6. Magnetic Flux Leakage Testing

Magnetic flux leakage testing for oil casings is based on the high magnetic permeability of ferromagnetic materials. By measuring the changes in magnetic permeability caused by defects, it can assess the quality of in-service oil casings. This method efficiently and accurately detects casing pipe defects, especially for ferromagnetic materials.


7. Magnetic Impressions Testing

Magnetic impressions testing is based on the relationship between the physical properties of metal magnetic phenomena and the dislocation process. It offers high efficiency, low cost, and requires no polishing, making it widely used in industrial inspections. This method can quickly and accurately detect surface and internal defects in oil casings, holding significant application potential.


Conclusion

In conclusion, there are various inspection methods for oil well pipe casings, each with its unique advantages and applicable range. In practice, the appropriate inspection method is chosen based on specific testing requirements and material characteristics to ensure the quality and reliability of oil casings. Inspecting oil well pipe casings is not only a critical step in ensuring the safe operation of wells but also an important means to improve oil and gas extraction efficiency. By continuously improving inspection technology, the oil industry will develop more safely and efficiently.
