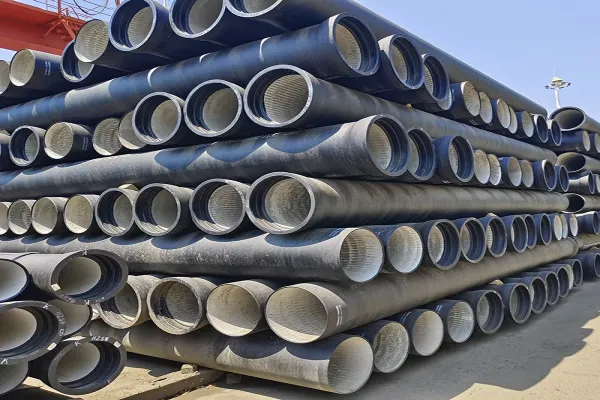

What is a cast iron pipe?
The essence of a cast iron pipe is a ductile iron pipe. Since the ductile iron pipe has the properties of iron and the performance of steel, it is called a ductile iron pipe. The graphite in the ductile iron pipe is spherical, and the size of the graphite is 6-7. In terms of quality, the spheroidization level of the cast iron pipe is required to be controlled at level 1-3, and the spheroidization rate is ≥80%. Therefore, the mechanical properties of the material itself are well improved, with the properties of iron and the performance of steel. The metallographic structure of the ductile iron pipe after annealing is ferrite and a small amount of pearlite. It has good mechanical properties, so it is also called a cast iron pipe.
Understanding Cast Iron Pipes: The Foundation of Ductile Iron
The essence of modern cast iron piping is ductile iron pipe. Unlike traditional gray cast iron, ductile iron combines the properties of iron with the performance characteristics of steel. This improvement is largely attributed to the shape and distribution of graphite within the iron matrix.
In ductile iron, the graphite forms spherical nodules rather than flakes, as found in gray cast iron. The spheroidization level in quality ductile iron pipes is tightly controlled between levels 1 to 3, with a spheroidization rate of ≥80%. This ensures enhanced strength, flexibility, and toughness. After annealing, the typical metallographic structure of ductile iron pipe is primarily ferrite with a small amount of pearlite, providing excellent mechanical properties like high tensile strength, impact resistance, and ductility.
Thus, although often referred to simply as "cast iron pipes," ductile iron pipes represent a significant advancement, bringing together the robustness of iron with the flexibility and resilience of steel.
Key Features of Ductile Iron Pipes
Properties of Iron with Steel-like Performance: Superior mechanical strength and flexibility.
Excellent Corrosion Resistance: Enhanced service life even in aggressive environments.
Good Ductility: Ability to withstand deformation without fracture.
Ease of Installation: Lightweight relative to strength, making transportation and installation more manageable.
Primary Uses: Widely utilized for water supply, gas transmission, oil pipelines, and municipal infrastructure in industrial, mining, and urban projects.
Major Types of Cast Iron Pipes in Detail
According to its manufacturing method, it can be divided into: sand mold centrifugal socket straight pipe, continuous cast iron straight pipe and sand mold iron pipe.
According to the different materials used, it can be divided into: gray cast iron pipe, ductile iron pipe and high silicon cast iron pipe.
1. Water supply cast iron pipe:
The water supply cast iron pipe is made of cast iron No. 18 and above. After adding spheroidizing agent, it is centrifugally cast by centrifugal ductile iron machine at high speed. Ductile iron pipe has the properties of iron, the performance of steel, excellent corrosion resistance, good ductility, good sealing effect, simple installation, and is mainly used for water supply, gas transmission, oil transmission, etc. in municipal and industrial and mining enterprises. It is the first choice for water supply pipelines with high cost performance.
2. Sand mold centrifugal cast iron straight pipe:
The sand centrifugal cast iron straight pipe is made of gray cast iron, which is suitable for conveying pressure fluids such as water and gas.
3. Continuous cast iron straight pipe:
The continuous cast iron straight pipe is a continuously cast gray cast iron pipe, which is suitable for conveying pressure fluids such as water and gas.
4. Cast iron drainage pipe:
Commonly used drainage cast iron socket and
pipe fittings are flexible seismic interface drainage cast iron straight pipes. This cast iron pipe is sealed by a rubber ring and fastened with bolts. It has good flexibility and scalability under internal water pressure. It can adapt to large axial displacement and lateral deflection, and is suitable for indoor drainage pipes in high-rise buildings, especially in earthquake areas. From the interface form, it can be divided into: flexible cast iron drainage pipe, B-type flexible cast iron drainage pipe, A-type flexible cast iron drainage pipe.
The nominal diameter of the continuous gray cast iron pipe is 75-1200 mm, and the straight pipe length is 4 meters, 5 meters, and 6 meters respectively. It is divided into three grades of LA, A, and B according to the wall thickness. The sand centrifugal gray cast iron pipe has a nominal diameter of 200-1000mm, and the effective length is 5m and 6m respectively. It is divided into P grade and G grade according to the wall thickness. High strength, good toughness, thin pipe wall, low metal consumption, and can withstand high pressure.
5.Gray Cast Iron Pipes
Gray cast iron pipes are the most traditional and widely recognized type. They get their name from the gray color of the fracture surface, which is due to the presence of graphite flakes in the iron matrix. These pipes are valued for their excellent compressive strength, good vibration damping, and corrosion resistance.
6.Ductile iron pipes
Ductile iron pipes, also known as nodular cast iron or spheroidal graphite iron pipes, represent a significant advancement over traditional gray cast iron pipes. By adding a small amount of magnesium during production, the graphite forms into spherical shapes rather than flakes, greatly improving the pipe’s strength and flexibility. These pipes are primarily used for water and sewage systems under high pressure and are also favored for municipal water mainlines and industrial piping. They offer superior tensile strength, high impact resistance, excellent flexibility that allows for slight movement without cracking, and an extended lifespan. However, ductile iron pipes are generally more expensive than traditional gray cast iron pipes.
7.Cast Iron Soil Pipes (CISP)
Cast Iron Soil Pipes (CISP) are specifically designed for the drainage, waste, and vent (DWV) systems in residential, commercial, and industrial buildings. These pipes are typically produced by either the sand casting or centrifugal casting methods.
|
Classification
|
Type/Method
|
Material
|
Key Features
|
Typical Applications
|
|
By Material
|
Gray Cast Iron Pipe
|
Gray cast iron (graphite flakes)
|
Good corrosion resistance, vibration damping, brittle under impact
|
Low-pressure water, sewage, drainage
|
|
Ductile Iron Pipe
|
Ductile iron (spheroidal graphite)
|
High strength, flexibility, high pressure resistance
|
Water supply, gas transmission, oil pipelines
|
|
High Silicon Cast Iron Pipe
|
High silicon cast iron
|
Exceptional corrosion resistance in aggressive environments
|
Chemical waste drainage
|
|
By Manufacturing Method
|
Sand Mold Centrifugal Socket Straight Pipe
|
Gray cast iron
|
Centrifugal casting in sand mold, pressure fluid conveyance
|
Water, gas pipelines
|
|
Continuous Cast Iron Straight Pipe
|
Gray cast iron
|
Continuous casting, consistent quality
|
Water, gas pipelines
|
|
Sand Mold Iron Pipe
|
Gray cast iron
|
Traditional sand casting, low-pressure use
|
Drainage systems
|
|
Specific Product Types
|
Water Supply Cast Iron Pipe
|
Ductile iron
|
High strength, corrosion resistance
|
Municipal/industrial/mining water, gas, oil transport
|
|
Cast Iron Drainage Pipe (Flexible Type A/B)
|
Gray or ductile iron
|
Flexibility, earthquake resistance
|
Building drainage, indoor systems
|
Conclusion
Cast iron pipes, especially ductile iron pipes, remain indispensable in today’s water supply and gas transmission industries. Whether through improvements in material structure or advancements in casting technologies, cast iron pipes continue to offer a unique combination of strength, durability, corrosion resistance, and flexibility. By understanding the different types—ranging from gray cast iron to ductile iron and specialized drainage pipes—engineers, builders, and project planners can select the optimal pipe to meet the specific needs of their projects, ensuring reliability and efficiency for years to come.
