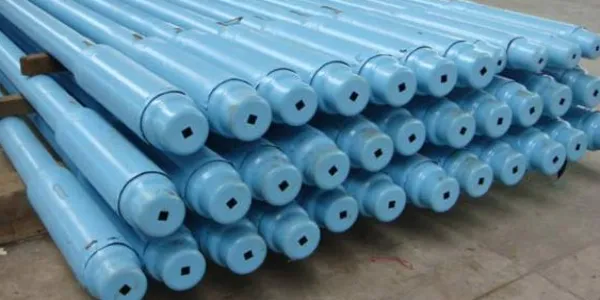

Drill collar connection is a vital part of oil and gas drilling operations. The drill collar is connected to the drill bit at the bottom and the drill pipe at the top. The drill collar is located at the bottom of the drill string and is the main component of the lower drill string assembly. Its performance and reliability are directly related to the success or failure of the entire drilling project. This article will discuss the characteristics of drill collar connection in detail, covering API connection standards, phosphate coating treatment, stress relief function, cold rolling treatment, slide and elevator grooves, cleaning and covering specifications, as well as clamping pressure and calibration, and explain how these characteristics work together to improve the performance and durability of drill collar connections.
API connection standards
API connection is one of the most widely used standards for drill collar connection. The standards for casing and tubing, pup joints are API 5CT. All API connections (including conventional, NC, H90, and PAC) meet the dimensional requirements specified in "API Spec. 7-2" and follow the guidelines provided in "API RP7G". These standards ensure the versatility and interchangeability of drill collar connections, allowing seamless connection between different equipment, improving operational efficiency and safety.
The accuracy of API connections is particularly important in drilling operations, and drill collar connections need to withstand huge mechanical stress and environmental challenges. Through strict API standards, the dimensional accuracy and consistency of the connection are guaranteed, reducing the risk of poor connection and early drill collar failure due to dimensional deviations.
Phosphate coating treatment
All drill collar connections are treated with phosphate coating, which significantly improves the anti-bite ability of the connection. The phosphate coating can form a uniform protective film on the connection surface, reducing the friction and wear of the metal surface. This not only extends the service life of the connection, but also improves the safety and reliability of the operation.
In the high-stress and high-wear drilling environment, the phosphate coating plays an important protective role. It can effectively prevent the biting and jamming of the connection parts, ensuring the smooth operation of the drill collar connection. At the same time, the phosphate coating also has a certain anti-corrosion function, protecting the connection parts from corrosive media.
Stress relief function
The stress relief function in the drill collar connection design significantly reduces the frequency of fatigue failure. The design of API pin stress relief groove and API box shaft back hole can reduce the high stress concentration that usually occurs near the end of the meshing thread. These stress relief functions are processed in accordance with "API Spec. 7-2" to ensure their reliability and effectiveness.
Stress concentration is one of the main causes of metal fatigue failure. Under high stress environment, micro cracks are prone to appear in the connection parts and gradually expand, eventually leading to component fracture. Through the design of stress relief groove and back hole, local stress concentration can be effectively dispersed and reduced, and the fatigue life of the connection parts can be extended.
Cold rolling treatment
The thread root of the drill collar is cold rolled. This process can form a compressive stress state at the thread root, thereby minimizing the occurrence of cracks and extending fatigue life. The cold rolling process makes the metal structure at the thread root denser through mechanical extrusion, improving its crack resistance and fatigue strength.
Another major advantage of cold rolling is that it can significantly improve the surface hardness and wear resistance of the thread. In drilling operations, the threaded part needs to withstand frequent loading and unloading and high-intensity torque. The thread after cold rolling can be more wear-resistant and durable, reducing the replacement frequency and maintenance cost caused by wear.
Slide and elevator grooves
To improve the handling efficiency and safety of drill collar connections, we offer optional slide and elevator grooves. These grooves make the connection parts more convenient and safer during handling and operation. In particular, the upper radius of the elevator groove is cold-rolled, which further extends the fatigue life of the product. Slide and elevator grooves can be used together or separately, with strong flexibility to adapt to different operating requirements. These grooves are processed in accordance with API Spec. 7-1, ensuring their structural strength and dimensional accuracy, providing reliable protection for drilling operations.
Cleaning and Covering Specifications
All drill collar connections and thread protectors require thorough cleaning before use. The thread oil should be free of contamination to ensure cleanliness and lubricity of the connection. This process can effectively prevent foreign matter and contaminants from entering the connection, reducing the risk of wear and failure of the connected parts.In addition, all connection threads, seals and shoulder surfaces should be evenly covered with a thin layer of thread oil. This layer of thread oil not only provides the necessary lubrication, reduces friction and wear, but also has a certain anti-corrosion effect and protects the connection parts from environmental influences.
Clamping pressure and calibration
During the installation of the drill collar connection, the clamping pressure should be minimized to ensure that the pliers are away from the box shoulder surface. Excessive clamping pressure may cause deformation and damage to the connection parts, thereby affecting the stability and service life of the connection. Therefore, the clamping pressure needs to be strictly controlled during the installation process to ensure the integrity of the connection parts.
At the same time, the torque and handling equipment should be properly adjusted and calibrated. Correct torque and equipment calibration can ensure that the connection parts are installed in place and avoid loose connections and leakage problems caused by improper installation. Through standardized operating procedures and equipment calibration, the reliability and safety of the connection can be effectively improved.
Summary
The design and manufacture of drill collar connections involve many aspects of technology and processes, which work together to ensure the high performance and durability of drill collar connections. API connection standards, phosphate coating treatment, stress relief function, cold rolling treatment, slide and elevator grooves, cleaning and covering specifications, and measures such as clamping pressure and calibration have comprehensively improved the performance and reliability of drill collar connections. Through the application of these technologies and processes, drill collar connections have shown excellent wear resistance and fatigue resistance in actual operations, significantly extending service life, reducing maintenance costs, and improving operating efficiency. This not only provides reliable technical support for oil and gas exploration, but also lays a solid foundation for the development and progress of the entire industry.
