What is the difference between a drill pipe and a drill collar?

Date:2024-04-28Tags:drill pipe, drill collar, pipe, oil casing

What is drill pipe?

The API standards for drill pipes are E75 to S135 steel grades, a series of oil drill pipes with outer diameters from 23/8" to 51/2", as well as double shoulder joint drill pipes with high torsion resistance and special drill pipes for sour oil wells. Steel grade BNKC95S drill pipe. It is mainly suitable for the construction of deep wells, horizontal wells and extended reach wells in the process of oil and gas exploration and development.Drill pipe is a steel pipe with a ribbed tail, used to connect the surface equipment of the drilling rig to the drilling and grinding equipment or bottom hole device at the bottom of the drilling well. The purpose of the drill pipe is to transport drilling mud to the drill bit and to raise, lower or rotate the bottom hole device together with the drill bit. Drill pipe must be able to withstand tremendous internal and external pressure, twisting, bending and vibration. In the oil and gas extraction and refining process, the drill pipe can be used multiple times. Plain pipe and raw steel pipe are made into drill pipe after multiple processing steps.


Functions of a Drill Pipe

Mud Transportation: Carries drilling mud to the drill bit.
Rotational Motion: Enables the bottom-hole assembly to rotate and drill effectively.
Durability: Withstands internal/external pressures, bending, and vibrations.
Reusability: Can be used repeatedly, making it cost-effective in oil and gas extraction.

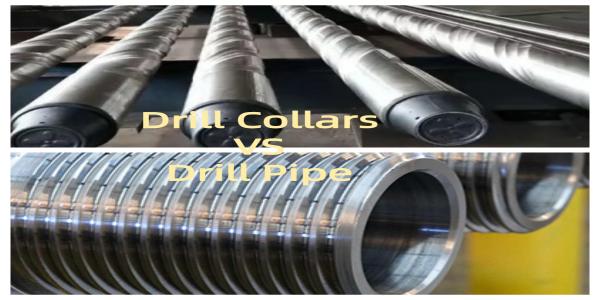

Drill Collars VS Drill Pipe

What is drill collar?

Drill collars are made of rolled or forged AISI4145H chromium-molybdenum bonded steel, which effectively controls the chemical composition and trace element content. The cobalt collar (drillcollar) is located at the lowermost part of the drill string and is the main component of the lower drill tool assembly. Its main features are large wall thickness (generally 38~53mm, equivalent to 4~6 times the drill pipe wall thickness), large gravity and stiffness. It mainly plays the following roles in the drilling process:

(1) Apply drilling weight to the drill bit;

(2) Ensure the necessary strength under compression conditions; reduce the vibration, swing, and beating of the drill bit to make the drill bit work smoothly;

(3) Control well deviation.

Drill collars are generally divided into three types: spiral drill collars, non-magnetic drill collars, and solid drill collars. The integral drill collar is a smooth thick-walled round tube with connecting threads processed on both ends. The spiral drill collar is machined with three right-handed spiral grooves on the outer cylindrical surface of the round drill collar to reduce the contact area with the well wall, which can effectively prevent pressure differential sticking. Non-magnetic drill collars are mainly used for monitoring during oil drilling. , the structure is the same as the overall drill collar.Non-magnetic drill collars are made of N1310 low carbon alloy steel, which is forged through strict chemical composition analysis. The material's mechanical properties have been tested to ensure that the hardness, toughness, impact value and corrosion resistance meet standards, and it has good low magnetic permeability and good machining performance.


Drill Pipe vs. Drill Collar: Key Differences

Difference: The drill collar has a thicker wall than the drill pipe and weighs more per unit length. The lower part of the drill collar is connected to the drill bit, and the upper part is connected to the drill pipe. The functions are similar. The drill pipe mainly transmits motion and power. The drill collar is stronger than the drill pipe and directly drives the drill bit to work.


1. Different materials

Drill pipe is usually made of high-quality alloy steel, which has good strength and hardness and can withstand high pressure and heavy load. Drill collars are usually made of steel, which is much less hard and strong and not suitable for high pressure and heavy loads.


2. Different shapes

The shape of the drill pipe is usually cylindrical and longer than the drill collar because it needs to withstand greater heavy loads and pressures. The drill collar is tapered and its diameter gradually becomes smaller, which can better adapt to the cliffs of underground rocks and achieve better penetration. Because the diameter of the drill collar is smaller, its resistance is smaller than that of the drill pipe, allowing better control of the drilling depth and reverse circulation flow.


3. Different uses

Drill pipe is mainly used for deep hole drilling, and is also used for installing underground communication cables and water pipes, as well as for driving and filling of drill rods. Drill collars are usually used for shallow hole drilling, such as foundation inspection, anchoring and blasting operations. Drill collars can directional drill holes, and because of their low resistance, they can be used to replace drill pipes for technical drilling, such as soil and water quality testing and environmental geological surveys.




Why Are Drill Collars Important in Modern Drilling?

Drill collars enhance the efficiency and safety of drilling operations. Their heavy weight ensures the drill bit achieves the necessary penetration depth without excessive vibrations. Additionally, non-magnetic drill collars play a critical role in directional drilling by reducing interference with downhole monitoring instruments.

Optimized for Performance: Choosing the Right Tool

Selecting between drill pipes and drill collars depends on the well’s depth, type, and specific challenges. For deep wells and horizontal drilling, drill pipes with higher grades like S135 are preferred. For stability and weight requirements, drill collars are indispensable.


FAQs: Common Questions About Drill Pipes and Drill Collars


1. Can drill collars replace drill pipes?

No, while drill collars can be used in certain scenarios like technical drilling, they are not designed to transport drilling fluids or withstand tensile loads like drill pipes.

2. How are spiral drill collars beneficial?

Spiral drill collars reduce the risk of differential sticking by minimizing contact with the well wall, ensuring smoother operations in challenging formations.

3. Are non-magnetic drill collars necessary?

Yes, they are crucial for monitoring and directional drilling in magnetically sensitive environments.
