Elbow fittings, often overlooked in the design phase, are critical in shaping the direction of a pipeline. They allow fluid to change direction, bypass obstacles, and facilitate complex layouts. Elbows come in various angles, materials, and sizes to accommodate the specific needs of different systems, from residential water supply to high-pressure industrial lines.Choosing the correct elbow fitting not only impacts the overall efficiency of a pipeline system but also affects pressure loss, maintenance costs, and system longevity.This guide will walk you through everything you need to know to choose the ideal elbow fitting—based on angle, material, connection method, and application scenario.
Classification by Angle: Choosing the Right Bending Degree
45-Degree Elbow: Gentle Turns for Smooth Flow
The 45° elbow is designed for piping systems that require smoother directional changes. Commonly used in:
Residential water supply and drainage systems
Scenarios where obstacles need to be bypassed
Designs that prioritize reduced turbulence and pressure drop

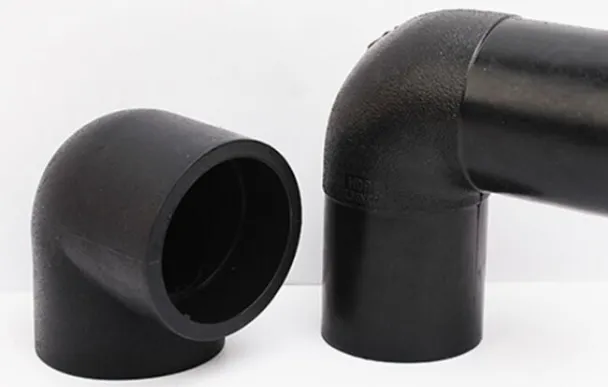

90-Degree Elbow: Standard for Right-Angle Bends
The 90° elbow is the most commonly used elbow fitting across all industries. It creates a right-angle turn and is widely found in:
Indoor water supply systems (e.g., changing direction from vertical to horizontal)
Fire protection piping
Gas lines, HVAC systems, and compressed air installations
180-Degree Elbow (U-Elbow): Reverse the Flow
Used for reversing the flow direction in piping systems, especially in:
Heat exchangers
Chemical circulation systems
Compact layout pipelines
Other Angles: 30° and 60° Elbows
For special piping needs, elbows with 30° or 60° angles are used:
30° elbows: Ideal for slight directional shifts, reducing pressure loss.
60° elbows: Provide moderate directional change when 45° is too little and 90° is too sharp.
How to choose the right steel pipe elbow according to the usage scenario
Steel pipe elbow is an indispensable pipe fitting in the construction industry. It can help us realize the conversion of various angles in the pipeline layout. However, with the increasing number of types of steel pipe elbows on the market, how to choose the right steel pipe elbow according to the usage scenario has become a question worth discussing. Let me share with you some tips for purchasing steel pipe elbows.
1. Understand steel pipe elbows of different materials
First of all, you need to understand steel pipe elbows of different materials. Common ones are cast iron, stainless steel, carbon steel, etc. Cast iron elbows are cheap, but have poor corrosion resistance; stainless steel elbows have good corrosion resistance, but the price is higher; carbon steel elbows are a more cost-effective choice. Therefore, when choosing, you should decide the material according to the specific usage scenario and needs.
Choose the appropriate elbow material according to the medium characteristics of the pipeline system (such as temperature, pressure, corrosiveness), working environment (such as indoor, outdoor, buried) and cost budget. Common materials include carbon steel, stainless steel, alloy steel, plastic (such as
PVC, PP), etc.
For example, for corrosive environments such as chemical plants, stainless steel or alloy steel elbows should be selected; for low-pressure environments such as general water plants, carbon steel or plastic elbows can be selected.
2. Consider the use environment
When choosing a suitable steel pipe elbow, you should also consider the use environment. If it is used indoors, you can choose a common type of steel pipe elbow; if it is used outdoors, it is recommended to choose an anti-corrosion or waterproof steel pipe elbow to ensure its durability.
3. Choose the bending angle of the elbow according to the angle of the pipe
Steel pipe elbows have different bending angles, such as 90 degrees, 45 degrees, etc. When choosing, the required bending angle should be determined according to the specific usage scenario and the layout of the pipe. For example, in plumbing projects, 90-degree steel pipe elbows are usually used to connect faucets and water pipes.
4. Pay attention to size matching
Steel pipe elbows have different sizes, generally in inches. When choosing, pay attention to matching with the pipe diameter to avoid problems such as failure to connect or leakage.
Select appropriate elbow fittings specifications based on the diameter, working pressure, fluid characteristics and other parameters of the pipeline system. Ensure that the diameter, wall thickness, bending radius and other parameters of the elbow match the pipeline system.
Pay attention to checking the dimensional tolerance and wall thickness tolerance of the elbow to ensure that it meets the requirements of relevant standards and specifications.
5. Consider the installation method
Steel pipe elbows have two installation methods: internal thread and external thread. Internal thread is suitable for connecting fixed equipment such as faucets; external thread is suitable for connecting pipes of different diameters. Therefore, when choosing, the installation method should be determined according to the specific installation requirements.
Choose the appropriate elbow angle according to the layout of the piping system and the direction of fluid flow. Common angles include 45 degrees, 90 degrees, and 180 degrees.
If you need an elbow with a special angle, you can communicate with the manufacturer for customization.
The degree of the elbow is also closely related to the safety and stability of the pipeline system. In actual engineering, if the degree of the elbow is not properly selected, it will lead to unstable fluid operation in the pipeline system and even affect the safety of the pipeline system. For example, if the selected elbow degree is too large, it will cause large eddies and pressure waves when the fluid passes through the elbow, thereby affecting the fluid operation stability of the pipeline system; and if the selected elbow degree is too small, it will cause greater friction resistance when the fluid passes through the elbow, thereby affecting the safety of the pipeline system. Therefore, in engineering design, it is necessary to select the appropriate elbow degree according to the specific fluid characteristics and fluid operation requirements of the pipeline system to ensure the safety and stability of the pipeline system.
How to choose stainless steel elbows correctly
1. Material: Stainless steel elbows are made of stainless steel, but different stainless steel materials have different characteristics and corrosion resistance. Common stainless steel materials include 304 and 316 stainless steel.
304 stainless steel is suitable for most general applications, while 316 stainless steel is more suitable for use in highly corrosive environments, such as seawater or chemical processing units.
2. Elbow angle: Stainless steel elbows are available in different bending angles, such as 45 degrees and 90 degrees. Choosing the right elbow angle depends on the layout and installation requirements of the pipeline. Larger angles can achieve greater changes in direction, but may require more space.
3. Size: It is very important to determine the required stainless steel elbow size. Size is usually expressed in pipe diameter or thread size. Make sure to choose an elbow that matches the pipe diameter to ensure a good connection and flow.
4. Pressure rating: Choose the appropriate stainless steel elbow according to the pressure requirements of the application. Different elbows have different pressure ratings, and you should ensure that the selected elbow can withstand the expected pressure and working conditions.
5. Application environment: It is also important to consider the special requirements of the installation environment. For example, if explosion-proof or corrosion-resistant properties are required, it may be necessary to select a special stainless steel material or coating.
