Introduction
In the oil and gas industry, line pipe and OCTG pipe (Oil Country Tubular Goods) are vital components. Although they are both used for the transportation and extraction of fluids, there are significant differences between the two in terms of design, materials, production processes and application areas. This article will explore the differences between line pipe and OCTG pipe in order to better understand their roles in the energy industry.
1. Definition and Characteristics of Pipeline Pipes
Pipeline pipes, such as ASTM A106, are specifically designed for transporting oil, natural gas, and other fluid media. Their main characteristics include pressure resistance and corrosion resistance. Depending on the intended use and design standards, pipeline pipes can be classified into various grades and specifications. Common international standards include API 5L and ISO 3183, while domestic standards follow GB/T 9711.
Pipeline pipes are typically made from large-diameter, thin-walled carbon steel or low-alloy steel, materials known for their high strength and durability in pipeline manufacturing. The specific grade of the pipe depends on the expected working pressure, temperature, and the nature of the fluid being transported. Common steel grades include API 5L B, X42, X52, X60, X65, and X70. Generally, the higher the grade, the greater the strength of the pipeline pipe.
2. Manufacturing Processes of Pipeline Pipes
The manufacturing processes for pipeline pipes mainly include hot rolling and cold drawing:
Hot Rolling Process: This involves rolling at temperatures above the crystallization point, typically passing through several stages of rolling before being cut and straightened. This process significantly reduces energy consumption and costs, producing pipes with smooth surfaces that are widely used, although at a relatively higher cost.
Cold Drawing Process: Cold drawing is conducted at room temperature, where metal materials are stretched through a mold to reduce cross-sectional area and improve physical properties. Pipeline pipes produced through cold drawing have high surface finish and longer service life, typically at a lower cost.
Pipeline pipes are often coated with anti-corrosive layers on the outside, and may also have internal coatings to reduce friction and improve flow characteristics. Common coating materials include Fusion Bonded Epoxy (FBE), polyethylene, or other specialized anti-corrosion materials.
3. Applications of Pipeline Pipes
Pipeline pipes are primarily used in underground or above-ground pipeline networks responsible for long-distance transportation of oil, natural gas, and other petroleum products. These pipelines are designed to efficiently transport large volumes of fluids while withstanding various environmental conditions. The diameter of pipeline pipes usually ranges from several inches to over 48 inches, with relatively thin walls, as they typically operate at lower pressures and do not need to withstand extreme conditions.

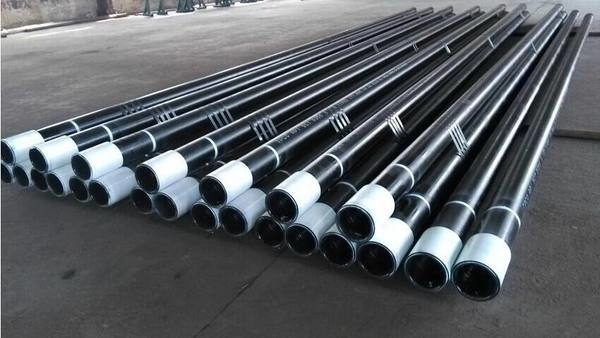

4. Definition and Characteristics of OCTG Pipe
OCTG (Oil Country Tubular Goods) refers to pipes used in the underground extraction of oil and natural gas, characterized by smooth inner and outer walls, high pressure resistance, and strong corrosion resistance. Unlike pipeline pipes, OCTG is classified into various specifications and grades depending on underground operational requirements and drilling techniques, including drill pipes, API 5CT casing, and production tubing.
The manufacturing process for OCTG is more complex, involving steps such as hot rolling of steel plates, processing of pipe blanks, rolling, straightening, welding, cleaning, and dimensional inspection. Due to the need to withstand high pressures, temperatures, and corrosive environments, the production costs of OCTG are generally higher than those of pipeline pipes.
5. Manufacturing Processes of OCTG
The manufacturing process for OCTG involves several key steps:
Hot Rolling: This step rolls steel plates at high temperatures to create pipe blanks, laying the foundation for subsequent processing.
Straightening and Welding: The pipe blanks are straightened to meet required dimensions and then welded to form complete pipes.
Heat Treatment: OCTG pipes typically undergo heat treatment to enhance their mechanical properties, such as strength and toughness, ensuring they can perform under extreme conditions.
6. Applications of OCTG Pipe
OCTG materials are primarily used for the extraction of crude oil and natural gas. Their pipeline networks transport hydrocarbons from production sites to refineries, storage facilities, and distribution centers. These pipelines are designed to withstand high pressures, corrosion, and extreme temperatures, making them a crucial part of energy infrastructure.
The three main types of OCTG pipeinclude:
Casing pipe: Large-diameter pipes arranged in the wellbore to provide structural support, prevent surrounding rock layers from collapsing, and isolate different zones within the well.
Casing and Tubing: Smaller in diameter, this type is inserted into the casing and serves as a conduit for hydrocarbons to flow from the reservoir to the surface.
Drill Pipe: Used during the drilling process, this connects surface equipment to the drill bit and is responsible for transporting drilling fluid and rotating the bit.
7. Comparison Between Pipeline Pipes and OCTG Pipe
Working Pressure:
Pipeline Pipes: Typically operate at low pressures, usually below 1,000 psi (pounds per square inch).
OCTG Pipe: Can work under high pressures, reaching up to 15,000 psi or more, depending on the depth and characteristics of the well.
Application Range:
Pipeline Pipes: Installed underground or above-ground, forming extensive networks for long-distance transportation.
OCTG pipe: Used within oil and gas wells, playing crucial roles in drilling, completion, and production stages.
Manufacturing Difficulty:
While both types utilize hot rolling and cold drawing, the manufacturing complexity and cost of OCTG are generally higher than those of pipeline pipes.
Conclusion
Pipeline pipes and OCTG pipe differ significantly in physical properties, applications, and manufacturing processes, yet both are essential materials in the oil and gas industry, providing robust support for resource extraction and transportation. By understanding the characteristics and applications of these two types, industry professionals can more effectively select and utilize appropriate pipe materials, ensuring safe and efficient operations.
