When selecting stainless steel pipes for industrial applications, many engineers compare Schedule 40S stainless steel pipe with standard Schedule 40 pipe. Although they have similar naming and are often confused, they are designed for different piping systems.
Schedule 40S pipe is a stainless steel pipe schedule defined according to ASME B36.19M. It is commonly used for corrosive, high-temperature, and sanitary applications because of its excellent corrosion resistance and durability. SCH 40, on the other hand, is a general pipe wall thickness designation that can apply to carbon steel, stainless steel, and other materials.
The main difference between SCH 40 and SCH 40S is not simply the wall thickness number. It is related to material standard, corrosion resistance, application requirements, and design conditions.This guide explains what Schedule 40S stainless steel pipe means, its dimensions, common grades, applications, and how to choose between SCH 40 and SCH 40S for different engineering projects.
What Is Schedule 40S Pipe?

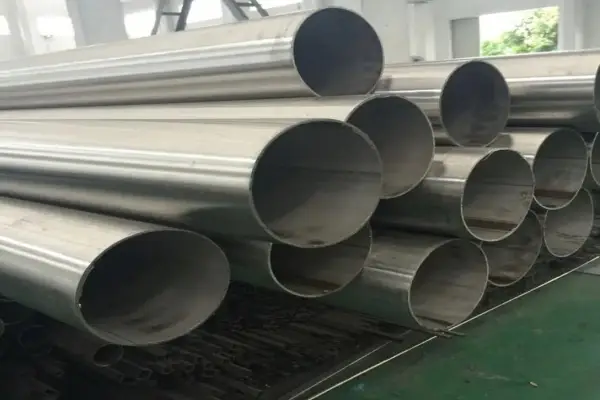

Schedule 40S stainless steel pipe refers to a stainless steel pipe manufactured according to the Schedule 40S wall thickness designation in ASME B36.19M.
The “S” designation indicates that the pipe schedule belongs to the stainless steel piping standard system. It is commonly used for stainless steel grades such as:
304 / 304L stainless steel
316 / 316L stainless steel
Duplex stainless steel grades
Unlike carbon steel pipes, stainless steel SCH 40S pipes contain chromium, which forms a passive chromium oxide layer on the surface. This protective layer helps prevent corrosion and makes the pipe suitable for demanding environments.
From engineering experience, SCH 40S stainless steel pipe is often selected when the piping system requires long-term corrosion resistance rather than simply higher wall thickness. For example, in coastal plants or chemical environments, replacing carbon steel piping with stainless steel SCH 40S can significantly reduce maintenance caused by corrosion.
What Does SCH 40 Mean?
SCH 40 refers to a standard pipe schedule that defines the wall thickness of a pipe relative to its nominal size. Widely used in plumbing, construction, and industrial applications, SCH 40 pipes offer moderate wall thickness, making them suitable for low-to-medium pressure systems. These pipes can be made from materials such as carbon steel, PVC, or stainless steel, providing versatility and compatibility with various systems. By adhering to ASTM and ASME standards, SCH 40 ensures reliability, safety, and cost-effectiveness in piping solutions.
SCH 40S vs SCH 40: Quick Comparison
|
Item
|
SCH 40 Pipe
|
SCH 40S Pipe
|
|
Definition
|
General pipe schedule
|
Stainless steel pipe schedule
|
|
Standard
|
ASME B36.10M (carbon steel)
|
ASME B36.19M
|
|
Material
|
Carbon steel, stainless steel, etc.
|
Stainless steel
|
|
Corrosion Resistance
|
Depends on material and coating
|
Excellent corrosion resistance
|
|
Common Grades
|
ASTM A53, A106
|
ASTM A312 TP304, TP316
|
|
Applications
|
General piping systems
|
Chemical, food, pharmaceutical, offshore
|
|
Cost
|
Lower initial cost
|
Higher material cost
|
|
Maintenance
|
May require coating protection
|
Lower corrosion maintenance
|
SCH 40 vs. SCH 40S: Key Differences
While SCH 40 and SCH 40S pipes share the same wall thickness and dimensions, they differ significantly in terms of the materials used, which impacts their overall performance.
1.Material Composition
SCH 40: Can be made from various materials, including
carbon steel and
PVC.
SCH 40S: Exclusively made from stainless steel.
2.Resistance to Corrosion
SCH 40: Performance varies depending on the material. For instance, carbon steel may corrode in harsh environments.
SCH 40S: Excellent corrosion resistance due to the stainless steel composition, making it ideal for use in chemical and marine environments.
SCH 40S, made from stainless steel, resists rust effectively due to its chromium oxide protective layer. SCH 40 relies on a galvanized coating, which degrades over time, making it prone to corrosion.
3.Wall Thickness and Weight Comparison
Although SCH 40 and SCH 40S share the same nominal pipe size (NPS) and outside diameter (OD), their wall thickness is not always identical. SCH 40 dimensions are defined in ASME B36.10M, while SCH 40S follows ASME B36.19M for stainless steel piping.
For smaller pipe sizes, the wall thickness may be the same. However, as the pipe size increases, SCH 40S often has a thinner wall than SCH 40. This design helps reduce pipe weight while maintaining the corrosion resistance advantages of stainless steel.
Typical SCH 40 vs SCH 40S Dimensions
|
NPS
|
Outside Diameter (mm)
|
SCH 40 Wall Thickness (mm)
|
SCH 40S Wall Thickness (mm)
|
|
1/2"
|
21.3
|
2.77
|
2.77
|
|
1"
|
33.4
|
3.38
|
3.38
|
|
2"
|
60.3
|
3.91
|
2.77
|
|
4"
|
114.3
|
6.02
|
3.68
|
|
8"
|
219.1
|
8.18
|
6.35
|
Dimensions are based on ASME standards. Always verify the latest specification before project design.
Because SCH 40S generally has a thinner wall in larger sizes, it is also lighter. Lower weight can reduce transportation costs, simplify installation, and decrease the load on pipe supports, particularly in long pipeline systems.
Engineering Insight: In stainless steel process piping projects, engineers often evaluate both wall thickness and total pipeline weight. Reducing unnecessary dead load can simplify support design and lower installation costs without compromising corrosion resistance.
4.SCH 40 vs SCH 40S Applications
SCH 40 pipe is commonly used in water supply, fire protection, HVAC, structural applications, and general industrial piping where corrosion is minimal and cost is a key consideration. It is an economical choice for low- and medium-pressure systems.
SCH 40S stainless steel pipe is preferred for chemical processing, oil and gas, food and beverage, pharmaceutical, and offshore applications where corrosion resistance and long service life are required. Common grades include ASTM A312 TP304/304L and TP316/316L, with 316L recommended for chloride-rich environments.
5.Standards
Schedule 40 (SCH 40): This term indicates a standard wall thickness for pipes, defined by ASTM and
ASME standards. SCH 40 pipes are widely utilized across industries like plumbing, construction, and process piping, where systems operate under moderate pressures and temperatures. They are versatile and can be manufactured as
seamless steel pipes or
ERW (Electric Resistance Welded) pipes.
Schedule 40S (SCH 40S): The "S" in SCH 40S denotes "stainless steel," and this designation is specifically for stainless steel pipes. These pipes are designed for high-pressure and high-temperature applications, making them ideal for use in the chemical, petrochemical, and oil and gas sectors. While sharing the same wall thickness as SCH 40 pipes, SCH 40S pipes are tailored to meet the demands of corrosive environments due to the superior properties of stainless steel.
6.Ease of Installation
Stainless steel’s density makes SCH 40S pipes heavier compared to SCH 40. This added weight can make SCH 40S more challenging to handle and install.
In contrast, SCH 40 pipes are lighter, making them easier to transport, handle, and install. However, while SCH 40 is more convenient for installation, the heavier SCH 40S pipes compensate for the extra effort with superior durability and performance.
7.Cost and Affordability
Cost is often a decisive factor in pipe selection. SCH 40S pipes are more expensive due to the premium quality of stainless steel. Projects requiring SCH 40S will demand a higher budget, but the investment pays off in terms of performance and durability.
SCH 40 pipes, on the other hand, are more affordable and suitable for applications with less demanding requirements. Despite the higher upfront cost of SCH 40S, its superior qualities make it worth the investment in the long run.
Are SCH 40 and SCH 40S Pipe the Same Size?
One of the most common questions is whether SCH 40 and SCH 40S have different dimensions.
SCH 40 and SCH 40S pipes can have the same nominal pipe size (NPS) and outside diameter, but their wall thickness may differ depending on the applicable pipe standard.
For stainless steel piping, SCH 40S follows ASME B36.19M, while carbon steel SCH 40 generally follows ASME B36.10M.
For some pipe sizes, SCH 40S has a thinner wall thickness than SCH 40 because stainless steel provides better corrosion resistance and mechanical performance.
|
Pipe Size
|
OD
|
SCH 40 Wall Thickness
|
SCH 40S Wall Thickness
|
|
NPS 2
|
60.3 mm
|
3.91 mm
|
2.77 mm
|
|
NPS 4
|
114.3 mm
|
6.02 mm
|
3.68 mm
|
Schedule 40S Stainless Steel Pipe Dimensions and Weight Chart
Understanding dimensions is essential when selecting Schedule 40S stainless steel pipes for engineering projects. Pipe dimensions are generally specified by:
Nominal Pipe Size (NPS)
Outside Diameter (OD)
Wall Thickness
Weight per Meter
Pressure requirements
Schedule 40S stainless steel pipes follow the stainless steel piping dimensions defined in ASME B36.19M. The actual wall thickness varies according to pipe size, while the outside diameter remains consistent with standard NPS dimensions.
Below are common SCH 40S stainless steel pipe dimensions:
|
NPS
|
Outside Diameter (mm)
|
SCH 40S Wall Thickness (mm)
|
Weight (kg/m)
|
|
1/2"
|
21.3
|
2.11
|
1
|
|
1"
|
33.4
|
3.38
|
2.5
|
|
2"
|
60.3
|
2.77
|
3.85
|
|
3"
|
88.9
|
3.05
|
6.44
|
|
4"
|
114.3
|
3.68
|
10.02
|
|
6"
|
168.3
|
3.4
|
13.58
|
|
8"
|
219.1
|
3.76
|
19.98
|
Dimensions may vary depending on manufacturing standards, stainless steel grades, and production tolerances.
In practical engineering projects, pipe weight is an important consideration. A lighter SCH 40S stainless steel pipe can reduce:
Pipe support requirements
Transportation costs
Installation workload
However, reducing wall thickness does not mean reduced reliability. Stainless steel's corrosion resistance and mechanical properties allow SCH 40S pipes to perform effectively in many demanding environments.
You can view more data if you wish：SCH 40S Stainless Steel Pipe Size Chart
Conclusion
When choosing between SCH 40 and SCH 40S, your decision should depend on the specific needs of your project. SCH 40 is lightweight, affordable, and suitable for less demanding applications. Meanwhile, SCH 40S offers unparalleled strength, corrosion resistance, and longevity, making it ideal for high-pressure, high-temperature, and corrosive environments.
For projects requiring durability and long-term reliability, SCH 40S is the clear winner. However, for budget-conscious applications with moderate requirements, SCH 40 remains a viable option.
We at Baowi Steel offer Schedule 40 Sch 40S thickness stainless steel pipes in various sizes. Common grades include 304/304L 316/316L stainless steel. Schedule 40 pipes are used for high pressure and high temperature conditions and are commonly used for fluid transportation, including water, oil and gas, petrochemical engineering and chemicals. If you need, you are welcome to leave a message for quotation at any time.
