ASTM A36 Steel Plate Specification

Date:2024-09-14Tags:ASTM A36 , Steel Plate, Hot rolling, rectangular steel
Steel is the backbone of our infrastructure, and ASTM A36 steel plates are essential. These steel plates are widely used in the construction industry, machinery manufacturing, and even the automotive industry. ASTM A36 is a commonly used steel standard developed by the American Iron and Steel Institute (ASTM) for buildings, bridges, and other structural purposes. ASTM A36 steel plates and beams are considered as top-notch materials in construction activities and structural buildings. So, why is it so popular among different industries? Why do so many people buy this material? If you plan to buy or use ASTM A36 steel plates, this guide is for you. This blog post will discuss all you need to know about ASTM A36 steel plates.

What is ASTM A36 Steel?

ASTM A36 is a low-carbon steel that is widely used for structural purposes. It meets the standard ASTM A36 specification and has a yield strength of 36,000 psi. The chemical composition of ASTM A36 steel is carbon, manganese, phosphorus, sulfur, silicon, and copper. These elements give it good mechanical properties, making it suitable for a variety of applications. A36 steel developed by ASTM International is one of the popular and widely used low-carbon hot-rolled structural steels. ASTM A36 has excellent welding properties and is very suitable for punching, grinding, drilling, tapping and machining processes. Unlike high-performance alloys, these structural steel plate properties make this steel useful for many applications.


ASTM A36 Steel Plate Sizes and Specifications

The sizes and specifications of ASTM A36 steel plates can be customized according to different production requirements, but there is usually a certain standard size range. The following is the general size and specification information of ASTM A36 steel plates compiled from multiple sources:

1. Standard size range

The thickness, width and length of ASTM A36 steel plates can be selected within a certain range. Generally speaking, the thickness range can range from 8mm to 400mm, the width range is between 1600mm and 3900mm, and the length range can reach 6000mm to 14000mm. However, the specific dimensions may vary depending on the manufacturer.

2. Common specification examples

The following are some common ASTM A36 steel plate specification examples (unit: mm) for reference only:
Thickness: 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 30mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, etc.
Width: 2000mm, 2400mm, 2500mm, 3000mm, etc.
Length: 8000mm, 9000mm, 10000mm, 12000mm, 13000mm, 14000mm, etc.
It should be noted that these specifications are only examples, not absolute standard sizes. In actual production, customized production can be carried out according to the specific needs of customers.


A36 Carbon Steel Plate Standards

GRADE FORMAT SIZES ROUTINELY STOCKED (IMPERIAL UNITS)
Thickness Width Length
SA36 Coil 3/16" to 1/2" 84", 96" Any
SA36 Cut to Length 3/16" to 1/2" 84" to 96" Any
A36 / SA36 Hot Rolled (Strip Mill) 1/4", 3/16", 7/16", 3/8", 5/16", 1/2" 60", 48",72" Any
A36 / SA36 Discrete (Mill Rolled) 3/16", 1/4", 5/16" 84" to 120" 240" - 480"
A36 / SA36 Discrete (Mill Rolled) 3/8" to 12" 72" to 144" 240" - 480"

Characteristics of ASTM A36 Steel

ASTM A36 steel has a variety of properties that make it a popular choice for many applications. It has excellent weldability and is ideal for welding bolts or rivets to structure. Its low carbon content makes it easy to form. It has good machinability and is easy to machine or drill. It also has high durability, making it resistant to wear and tear and can be used for a long time in various environments.

Fabrication of ASTM A36 Steel

ASTM A36 steel plates can be manufactured in a variety of ways, including welding, machining, drilling and cutting. Welding is the most common method of manufacturing ASTM A36 steel plates. Steel plates can be welded using a variety of processes, including SMAW, GMAW, FCAW and SAW. Machining is another method of manufacturing ASTM A36 steel plates. It involves cutting the steel plate into the required shape using a cutting tool. Drilling involves drilling holes in the steel plate using a drill. Cutting involves cutting the steel plate into the required size using a saw.

Reference Standards for Fabricating ASTM A36 Carbon Structural Steel

a. A6/M Specification for Rolled Structural Rebar, Beams, Plates, Shapes, and Sheet Piling (Pile Sheet). b. ASTM A27/M Specification for Carbon Steel Castings for General Purpose
c. ASTM A307 Specification for Carbon Steel Bolts and Studs, 60000 psi (415 MPa) Tensile Strength.
d. ASTM A325 Structural Bolts, Steel, Heat Treated, Minimum Tensile Strength 105 or 120 ksi.
e. A325M High Strength Bolts and Fittings.
g. A500, A501, A502, A563 A570, A668, and F568 Refer to Other Steel Products and Materials.

ASTM A36 Mechanical Properties

ASTM-A36 has excellent mechanical properties, including:
Yield strength: ≥250MPa (some data indicate that it is around 240MPa, and may decrease with the increase of material thickness)
Tensile strength: between 400MPa and 550MPa

Elongation: ≥20%


The delivery status of ASTM-A36 steel plates mainly includes the following:

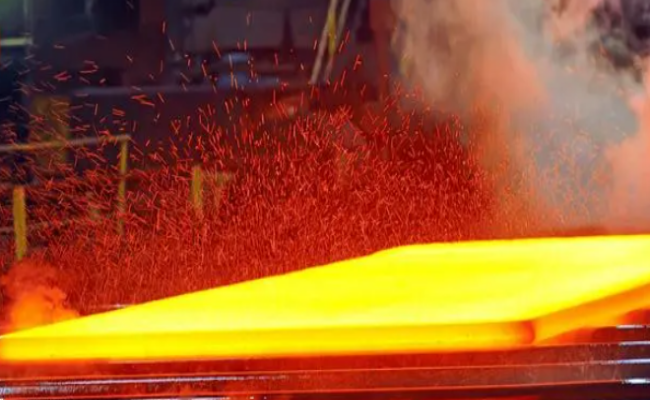

Hot rolling: The steel plates are delivered directly after high-temperature rolling on the hot rolling mill. The steel plates in this delivery state may have a certain amount of iron oxide on the surface, which needs further cleaning and treatment.

Controlled rolling: During the hot rolling process, the steel plates are delivered after obtaining specific structures and properties by controlling the rolling parameters and process conditions. The steel plates delivered by controlled rolling usually have better dimensional accuracy and surface quality.

Normalizing: The steel plates are heated to above the critical temperature, kept warm for a period of time, and then cooled at an appropriate speed before delivery. The steel plates delivered by normalizing can improve their internal structure and properties and improve their comprehensive mechanical properties.

Normalizing rolling: The steel plates are delivered after normalizing treatment and then rolling. The steel plates in this delivery state have better dimensional accuracy and surface quality, while maintaining the advantages of normalizing treatment.
ASTM A36 Steel Plate

Advantages and uses of A36 low carbon steel plate

ASTM A36 low carbon structural steel plate is widely used in the construction of oil drilling platforms and the forming of boxes, oil tanks, bearing plates, rings, clamps, cams, forgings, templates, gears, base plates, piles, fixtures, sprockets, forgings, brackets, decorative works, piles, agricultural equipment, automotive equipment, mechanical parts and frames. The steel plate is also used for various parts produced by flame cutting. These parts include sidewalks, dock ramps, parking lots and ditches. The ductility of this steel plate makes the alloy neither used as cables nor as steel bars. This steel is strictly regulated by the American Society for Testing and Materials (ASTM) and the Lindenhurst Fitness Center Materials Association.

Good Machinability and Weldability

The machinability of this plate is about 72% and the average surface cutting feed for A36 is 120 feet per minute. This ASTM plate is an easy to weld steel and can be welded using any type of welding method with excellent welds and joints. When it comes to heat treatment, any standard carburizing and hardening method for AISI 1018 steel is well suited for this plate.

Heat treatment method and properties of A36 steel plate

ASTM A36 steel plate is normalized at 899°C to 954°C (1650°F to 1750°F), annealed at 843°C to 871°C (1550°F to 1600°F), stress relieved at 677°C to 927°C (1250°F to 1700°F), carburized at 899°C to 927°C (1650°F to 1700°F), and hardened at 788°C to 816°C (1450°F to 1500°F). Hardening is highly desirable when hardness and strength are the main properties required in the design. Normalizing is the final treatment after the manufacturing process.

The properties of this steel plate allow it to stably deform when the stress exceeds its yield strength, allowing bridges, buildings, and any other structures to last long enough to allow residents to be safely evacuated before any collapse occurs. This steel plate has a very good yield strength of 36,000 psi and also has a high allowable bending stress of 22,000 psi.



Why A36 Steel Plate is the most praised material in the construction industry

As we know, it is a carbon steel plate, so it is not an expensive material, has very good performance and strength, and can withstand various system pressures. It has high durability and can be fully recycled even after a period of time. Return to the furnace and make new steel products.
Therefore, A36 steel plate is a basic material for all buildings and structures. It has a wide range of applications and can be used for many purposes depending on the thickness and corrosion resistance of the alloy.
In fact, many of the manufactured products that use this A36 steel plate include warehouses, industrial and commercial buildings, buildings (including prefabricated buildings), pipes, tubing, cabinets, shells and casings.
In addition, A36 steel can be made into a variety of basic building materials.
ASTM A36 steel is usually available in a variety of forms, namely rectangular steel, square steel, round steel, and steel shapes such as angle steel, H-beam steel, I-beam steel and channel steel. This steel plate is also known as mild steel in Southeast Asia.
