Understanding API 5CT K55 Pup Joints

In the petroleum and gas extraction industry, maintaining structural integrity and operational efficiency in downhole tubing and casing systems is essential. Among the various components in these systems, pup joints play a critical role. This article focuses on the K55 pup joint, a specialized short-length casing manufactured according to API 5CT specifications, particularly using Grade K55 steel.

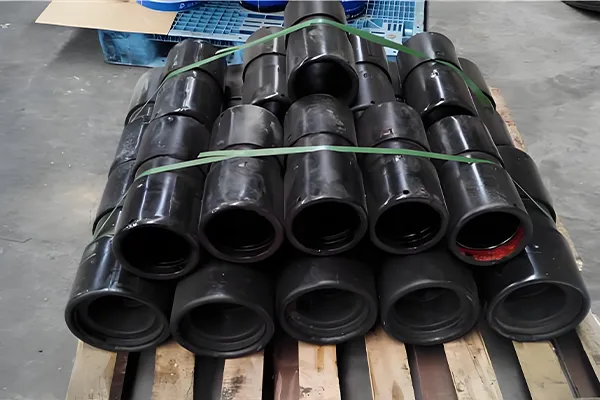

A K55 pup joint is a short segment of casing or tubing made from API 5CT K55 steel grade. These short pipes are generally used in casing and tubing strings to adjust the overall length, align components accurately, or connect downhole tools.

Material Properties of API 5CT K55 Steel

K55 is a commonly used carbon steel grade defined by the API 5CT specification. It features moderate mechanical strength and is suited for shallow to medium-depth wells.

Property	Specification
Minimum Yield Strength	55,000 psi (379 MPa)
Minimum Tensile Strength	95,000 psi (655 MPa)
Application Depth	≤ 6,000 ft (typical)
Corrosion Resistance	Low (requires protection in sour environments)
Heat Treatment	Usually delivered as hot rolled or normalized

K55 steel is not typically used in sour gas wells unless additional protective measures are applied, such as internal coatings or the use of inhibitors.

Common Sizes and Configurations

K55 pup joints come in various lengths and diameters to meet field requirements. The most common outer diameters include:
2-3/8"
2-7/8"
3-1/2"
4-1/2"
5-1/2"

Length options typically range from 2 feet to 12 feet, depending on the casing or tubing string design.

Advantages of K55 Pup Joints

Cost-effective: More affordable than higher-grade materials like L80 or P110.
Good mechanical strength: Sufficient for moderate well depths.
Standardized threads: Compatible with API threaded connectors.
Availability: Widely produced and stocked in global oilfield markets.

API 5CT K55 Short Section Quality Inspection and Testing

The production process of K55 short sections includes multiple quality inspection steps to ensure that the product meets API standards. These inspections include:
Hydraulic Pressure Testing: Each short section undergoes internal and external hydraulic pressure testing. The test pressure is determined based on the size, wall thickness, and steel grade. This test verifies the short section's seal integrity and pressure resistance.
Non-Destructive Testing: Non-destructive testing methods such as ultrasonic, magnetic particle, or eddy current testing are used to inspect surface and internal defects. Full-bore bore inspection ensures that the inner diameter conforms to the standard and allows gauges of the specified size to pass through.
Thread Measurement: Thread dimensions, including pitch, taper, and clearance, are checked using precision thread gauges to ensure thread interchangeability and sealing.
Mechanical Property Testing: Samples are taken from each batch for tensile testing to verify that the yield strength, tensile strength, and elongation meet the requirements of K55 steel grade.
Surface Treatment and Coating: The short section surface is typically mechanically coated to provide corrosion protection and ensure a good appearance.

Traceability and Certification

K55 short sections conforming to the API 5CT standard have complete traceability. Manufacturers must maintain detailed records for each batch of products, including steel chemical composition, heat treatment parameters, and test results. When requested by the user, manufacturers should provide material test reports containing all relevant test results.

According to API specifications, short sections conforming to the standard can be marked with the API monogram. The marking typically includes the manufacturer's name or trademark, dimensions, weight, steel grade (K55 in this example), and the API monogram. In addition, a color ring is applied to the short section body for quick on-site identification of the steel grade.

Summary

As a critical connection component in the oil and gas industry, the API 5CT K55 short section plays an irreplaceable role in ensuring tubing integrity and precisely controlling downhole tool positioning. Its standardized design, rigorously controlled manufacturing processes, and comprehensive quality assurance system make the K55 short section a safe and reliable connection solution for oilfield tubing.

With the continuous updates and improvements to the API 5CT standard, the technical specifications and requirements of the K55 short section will also be continuously optimized to meet the ever-evolving needs of the oil and gas industry. Understanding and correctly applying the API 5CT K55 short section is crucial for well designers, operators, and all relevant professionals; it is not only fundamental to ensuring operational safety but also a key factor in improving oil and gas recovery.
