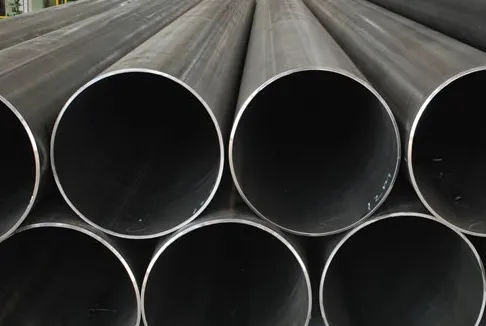

LSAW steel pipes offer the advantages of large diameter, a wide range of wall thicknesses, and strong pressure-bearing capacity. Furthermore, thanks to the adoption of a double-sided submerged arc welding process, the weld quality is high and stable—with overall strength closely approaching that of the base material. Coupled with high dimensional precision and comprehensive inspection protocols, these pipes demonstrate exceptional safety and reliability in long-distance, high-pressure oil, gas, and fluid transmission projects.
Advantages of LSAW Steel Pipe Welding
Many people harbor stereotypes regarding welded steel pipes, fearing that the weld seams are prone to cracking. However, LSAW steel pipes completely overturn this perception.
They utilize a double-sided submerged arc welding process. In this process, arc welding is performed beneath a layer of granular flux; consequently, the naked eye cannot perceive the blinding arc light, and there is virtually no smoke or dust. More importantly, the flux layer provides exceptional protection, shielding the molten pool from contamination by impurities—such as nitrogen and oxygen—present in the air.
This process results in LSAW steel pipes featuring weld seams with extraordinary penetration depth—often exceeding 70% of the plate thickness. The interior of the weld seam is dense and uniform, with an extremely low incidence of porosity or cracking. Following heat treatment, the metallic microstructure within the weld zone transforms into fine, needle-like ferrite, yielding an impact toughness that is more than 30% higher than that of conventional welds. In essence, the weld quality of LSAW steel pipes approaches that of the base material itself to an almost infinite degree, truly achieving a state of "seamless integration."
The advantages of LSAW steel pipe are:
① The base material of straight seam welded pipe (LSAW) is a single controlled rolled steel plate, which is isotropic and can be 100% non-destructive;
② The straight seam welded pipe (LSAW) has a good stress state after forming. Due to the mechanical diameter expansion, the internal stress can be internalized and the geometric and dimensional accuracy of the steel pipe can be improved;
③The inherent quality of straight seam welded pipe (LSAW) is good because it is welded on a flat surface, so welding conditions, automatic tracking, and non-destructive testing are easy to carry out, which results in low weld height and internal and external welds;
④Straight seam welded pipe (LSAW) wall thickness range is wide, generally 6 to 25 mm, and the thickness can be up to 45 mm;
⑤ Straight seam welded pipe (LSAW) has good bending resistance and flattening resistance;
⑥The weld seam of straight seam welded pipe (LSAW) is 60% shorter than that of spiral welded pipe, and the probability of weld seam defects is lower;
Frequently Asked Questions (FAQ)
1. What are LSAW steel pipes?
LSAW (Longitudinal Submerged Arc Welded) steel pipes are manufactured by forming steel plates into cylindrical shapes and welding the seam using a submerged arc welding process. They are commonly used in high-pressure and large-diameter pipeline systems.
2. What are the main advantages of LSAW steel pipes?
LSAW pipes offer high strength, excellent weld quality, large diameter capability, high dimensional accuracy, and strong pressure resistance, making them ideal for demanding engineering applications.
3. Where are LSAW steel pipes commonly used?
They are widely used in oil and gas transportation, offshore pipelines, water transmission projects, structural engineering, and other large infrastructure developments.
4. What is the difference between LSAW and SSAW steel pipes?
LSAW pipes have a straight longitudinal weld seam, while SSAW pipes use a spiral weld seam. LSAW pipes generally provide higher strength and reliability, especially in high-pressure pipeline applications.
For LSAW steel pipes, BAOWI STEEL’s huge production capacity, mature technology, stable quality, and abundant resource advantages enable us to take advantage of the competition in the longitudinal submerged arc welded pipe industry. If necessary, you are welcome to contact us for inquiries at any time.
