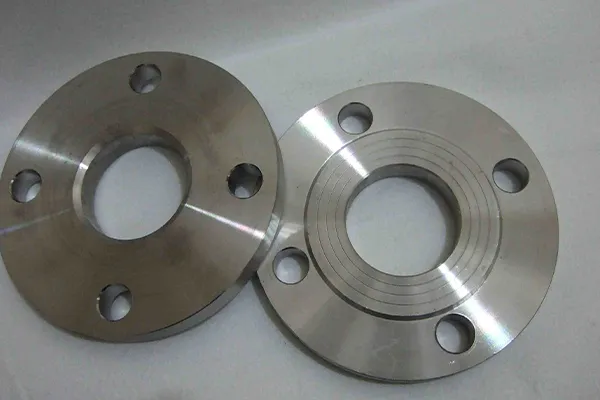

A sliding flange (also known as a slip-in flange or a necked flange) is an industrial piping connection fitting. Its inner diameter is slightly larger than the pipe's outer diameter, allowing the flange to slide freely at the pipe end during installation. It is then secured to the pipe with double fillet welds on both the inner and outer sides. The ASTM A105 sliding flange (a carbon steel sliding flange manufactured according to the ASTM A105 standard) is suitable for high-temperature and high-pressure piping systems. Its installation method involves directly fitting the flange onto the pipe and then securing it with fillet welds. It is typically used in low-pressure and non-critical applications.

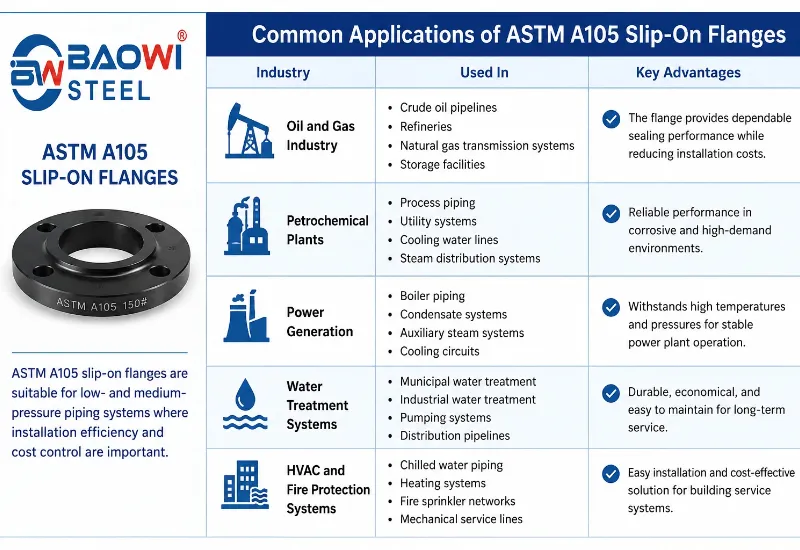

Common Applications of ASTM A105 Slip-On Flanges
ASTM A105 Slip-On Flanges are widely used in low- and medium-pressure piping systems because they offer easy installation, reliable sealing, and cost-effective performance. These flanges are commonly found in oil and gas facilities, petrochemical plants, power stations, water treatment systems, and HVAC networks. Their combination of strength, durability, and affordability makes them a popular choice for industrial piping connections.
Application Overview
Advantages of ASTM A105 Slip-On Flanges
Easy Installation
One of the biggest advantages of a slip-on flange is its simple installation process.The pipe can easily slide into the flange bore before welding, reducing alignment difficulties and shortening installation time.
Lower Installation Costs
Compared with weld neck flanges, slip-on flanges require less machining and preparation.
This helps reduce:
Labor costs
Fabrication time
Project expenses
Excellent Weldability
ASTM A105 carbon steel offers excellent weldability and is compatible with common welding procedures.
This simplifies field installation and repair work.
Wide Size Availability
ASTM A105 slip-on flanges are commonly available in sizes ranging from:
1/2 inch to 24 inches
Custom manufacturing can provide even larger sizes for special projects.
Multiple Pressure Classes
Slip-on flanges are available in various ASME pressure classes:
Class 150
Class 300
Class 600
Class 900
Class 1500
Class 2500
This allows engineers to select the appropriate flange for different operating conditions.
Reliable Sealing Performance
When installed correctly with suitable gaskets and bolting, ASTM A105 slip-on flanges provide dependable leak-tight performance in many industrial applications.
Cost-Effective Solution
For non-critical and moderate-pressure applications, slip-on flanges often deliver the best balance between performance and cost.
ASTM A105 Slip-On Flange vs Weld Neck Flange
|
Feature
|
Slip-On Flange
|
Weld Neck Flange
|
|
Installation
|
Easy
|
More Complex
|
|
Welding Method
|
Fillet Weld
|
Butt Weld
|
|
Initial Cost
|
Lower
|
Higher
|
|
Fabrication Cost
|
Lower
|
Higher
|
|
Fatigue Resistance
|
Moderate
|
Excellent
|
|
Pressure Service
|
Medium
|
High
|
|
Stress Distribution
|
Good
|
Excellent
|
|
Typical Application
|
General Service
|
Critical Service
|
Slip-on flanges are preferred when reducing installation costs is a priority, while weld neck flanges are generally selected for high-pressure and high-temperature applications.
Available Sizes and Pressure Ratings of ASTM A105 slip-on flanges
ASTM A105 slip-on flanges are manufactured in a wide range of sizes and pressure ratings to satisfy the needs of diverse industrial piping systems. Standard sizes range from NPS 1/2" to 24" under ASME B16.5 specifications, while larger diameters up to 60" are available upon request. These forged carbon steel flanges are commonly supplied in ASME pressure classes 150, 300, 400, 600, 900, 1500, and 2500, providing reliable performance in applications ranging from water treatment and HVAC systems to oil and gas, petrochemical, and power generation facilities.
ASTM A105 slip-on flanges are typically manufactured according to ASME B16.5 standards.
Common Size Range
NPS 1/2" to 24"
Common Pressure Classes
Class 150
Class 300
Class 600
Class 900
Class 1500
Class 2500
The correct pressure class should always be selected based on the system's design pressure and operating temperature.
Frequently Asked Questions (FAQ)
Is ASTM A105 suitable for high-temperature applications?
Yes. ASTM A105 is designed for ambient and elevated-temperature pressure systems and is commonly used up to approximately 425°C (800°F).
What industries use ASTM A105 slip-on flanges?
Industries include oil and gas, petrochemical processing, power generation, water treatment, HVAC, and fire protection systems.
What industries use ASTM A105 slip-on flanges?
Industries include oil and gas, petrochemical processing, power generation, water treatment, HVAC, and fire protection systems.
What is the difference between a slip-on flange and a weld neck flange?
A slip-on flange uses fillet welds and offers easier installation, while a weld neck flange uses a butt weld connection and provides better performance under high pressure and cyclic loading conditions.
Read more
What Is ASTM A105?
ASTM A105 Flange Ultimate Guide
