Drill collar weight and size standards

Date:2024-07-22Tags:Drill collar, drill pipe, weight, non-magnetic drill collar

Drill collars are thick, heavy tubular objects used in the drill string just above the drill bit, with the drill pipe connected below. They provide rigidity and weight to the drill bit to help control direction and improve drilling efficiency. Heavier drill chains apply more force to the drill bit to crush the rock and keep the hole vertical. Their weight also increases the tensile strength of the drill pipe to prevent bending. Generally, longer and heavier drill boats are more popular for deeper and more challenging drilling environments. Typical drill collar lengths range from 30 to 90 feet. The length and weight of oil drill collars need to be calculated and selected according to the specific drilling situation. The drill collar is at the bottom of the drill string and is the main component of the lower drilling tool assembly. Its main characteristics are large wall thickness (generally 38~53mm, equivalent to 4~6 times the wall thickness of the drill pipe), large gravity and rigidity.

Specifications and Standards

Drill collars adhere to stringent specifications set by organizations like the American Petroleum Institute (API), notably API 5DP and 7-1. Key measurements include outer diameter (OD), inner diameter (ID), and wall thickness, typically ranging from 4 1/2 inches to 9 5/8 inches OD, with ID ranging from 2 inches to 4 1/2 inches. Thicker-walled and heavier drill collars offer increased rigidity and durability.


Calculation formula for the length and weight of oil drill collars

The calculation formula for the length and weight of oil drill collars is one of the basic knowledge in drilling engineering. It can help drilling engineers and technicians to accurately select suitable oil drill collars in drilling operations to meet the needs of drilling operations. The following will introduce the calculation formula for the length and weight of oil drill collars and their application in drilling operations. The longer the drill collar, the greater its bending stiffness and critical buckling load, which provides higher stability. However, excessive length will also increase the bending stress along the drill collar and the load on the drill pipe. Typical drill collar lengths for different hole diameters are as follows:

61/2 hole-30 to 45 feet of casing

81/2 hole-30 to 60 feet of casing

121/4 hole-60 to 90 feet of casing

Once again, the optimum collar length depends on the wellbore profile, desired directional response and the formation being drilled. Computer modeling and real-world experience provide guidance, and most collars conform to American Petroleum Institute (API) dimensional standards, such as API 5DP and 7-1, with key measurements including outside diameter (OD), inside diameter (ID) and wall thickness. ODs typically range from 41/2 inches to 95/8 inches. Common IDs range from 2 to 41/2 inches. Wall thicknesses typically range from 3/4 inch to 2 inches. Heavier, thicker-walled collars provide increased stiffness.
Drill collar

How to calculate the weight of a drill collar?


The weight of a drill collar depends on its density, length, and cross-sectional area. Here are the steps to calculate the weight of a drill chain:

1. Get the outer diameter, inner diameter, and length in feet

2. Calculate the cross-sectional area:

Cross-sectional area = n(OD2-ID2)/4

3. Determine the appropriate density based on the material grade. For E-75 alloy steel, use 490 lb/ft3.

4. Multiply the length by the cross-sectional area to calculate the volume.

5. Multiply the volume by the density to get the total weight.

Calculation formula for oil drill collar length.


The length of oil drill collar is usually composed of drill pipe length and drill bit length, and its calculation formula is:

Oil drill collar length = drill pipe length + drill bit length.

Among them, the drill pipe length refers to the total length of the drill pipe, including the connecting part of the drill pipe and the main part of the drill pipe; the drill bit length refers to the length of the drill bit, which is usually determined by the diameter and length of the drill bit. In actual drilling operations, drilling engineers need to determine the length of the oil drill collar according to the target formation and geological conditions of the drilling to ensure that the drill bit can reach the target formation and complete the drilling operation.

Calculation formula for the weight of oil drill collars.


The weight of oil drill collars is usually composed of the weight of the drill pipe and the weight of the drill bit, and the calculation formula is:

Oil drill collar weight = drill pipe weight + drill bit weight.

The weight of the drill pipe refers to the total weight of the drill pipe, including the connecting part of the drill pipe and the main part of the drill pipe; the weight of the drill bit refers to the weight of the drill bit, which is usually determined by the material and size of the drill bit. In actual drilling operations, drilling engineers need to determine the weight of the oil drill collar according to the well depth and well inclination angle of the drilling to ensure that the drill collar can be smoothly pressed down and rotated during the drilling process. In addition to the length and weight calculation formula of the oil drill collar, drilling engineers also need to consider factors such as the properties of the drilling fluid, the size of the wellbore and the geological conditions to comprehensively determine the selection and use of oil drill collars. In drilling operations, the selection and use of oil drill collars need to comprehensively consider various factors to ensure the smooth progress of drilling and operations.

Precautions for using drill collars.


1. After use, remove dirt and check the safety of each part, then apply anti-rust oil and store in a dry and ventilated place.

2. On-site inspection, if one of the conditions for repair or scrap is found, it should be recycled for repair or scrapped.

3. In order to ensure the accuracy of the measurement results of the magnetic instrument, the length of the non-magnetic drill collar must be reasonably selected.

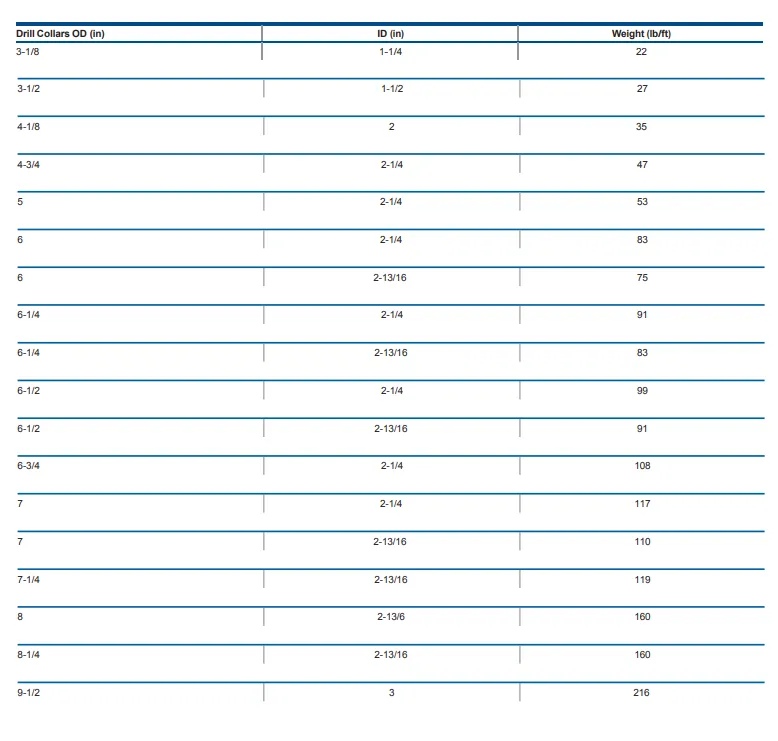

Drill Collar Weights and Dimensions Table

Drill Collar Weights and Dimensions Table

Summary


Drill collar specifications and calculations form the foundational knowledge of drilling engineering and are essential for the effective selection and deployment of equipment in different drilling environments. Their role in improving drilling efficiency, safety and reliability highlights their indispensable nature in modern oil and gas exploration.
