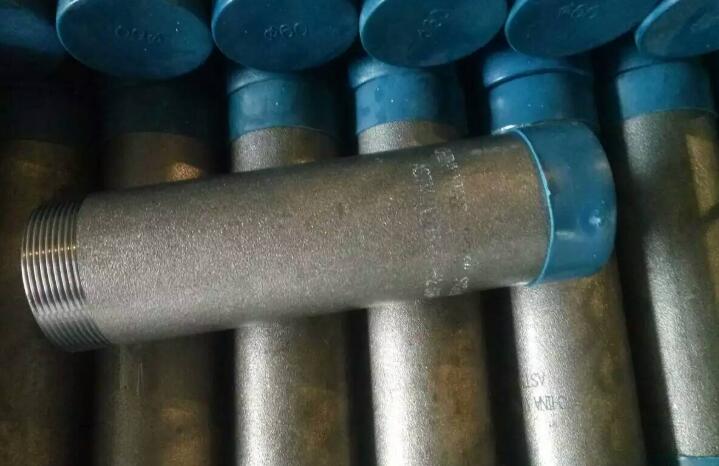

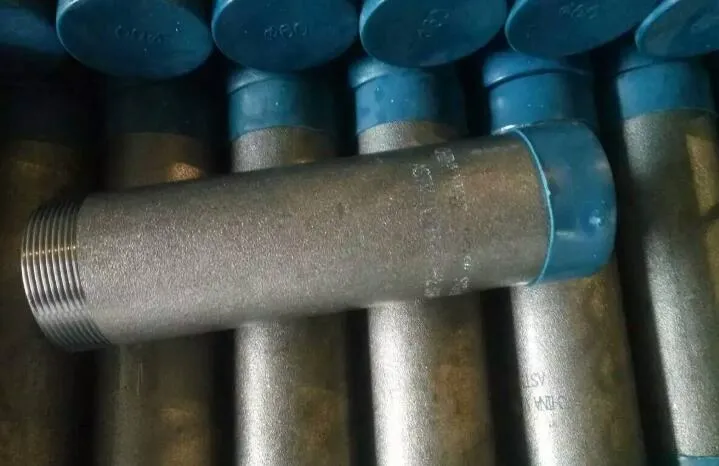

Pup joints are a common component in industrial piping systems, mainly categorized into single-threaded
pup joints and double-threaded pup joints. As the names imply, single-threaded pup joints have threads on one end, while double-threaded pup joints have threads on both ends. Their simple yet versatile design makes them indispensable in various applications, allowing for easy and efficient pipe connections and extensions.
1.What is SCH (Schedule) 80?
"SCH" stands for Schedule, a prefix commonly seen in American steel pipe standards. It represents a series number indicating the wall thickness of the pipe. For instance, SCH10, SCH40, and SCH80 correspond to different wall thicknesses for each pipe size. This standardization and serialization of pipe dimensions simplify the selection and use of pipes in various engineering and construction projects. It is a practical and convenient method to ensure the consistency and compatibility of pipe fittings.
2.Uses and Applications of Pup Joints
Threaded pipe fittings are connected using tapered pipe threads, typically for imperial pipes rather than metric pipes. The manufactured threaded pipe fittings comply with American ANSI B16.11 and Chinese GB/T14626 standards. In engineering pipelines, three types of pipe threads are commonly used:
ISO 7/1: This is an internationally recognized sealing pipe thread with a thread angle of 55 degrees and a taper of 1:16. The internal threads can be either parallel (Rp) or tapered (Rc), while the external threads are only tapered (R). The common combination is Rp-R, used frequently in public works, whereas Rc-R is less common.
ISO 228: This is an internationally recognized non-sealing pipe thread with a thread angle of 55 degrees. Both internal and external threads are parallel.
ANSI B1.20.1: This is the American standard for sealing pipe threads, with a thread angle of 60 degrees (NPT) and a taper of 1:16. Both internal and external threads are tapered and are commonly used in high-temperature and high-pressure piping systems. ASME B16.11 threaded pipe fittings typically use NPT threads. Although the thread angles of NPT and ISO 7/1 (commonly known as BSP) differ, their pitches for 1/2 and 3/4 sizes are the same and can be connected to each other.
3.Materials and Types of Threaded Pipe Fittings
Threaded pipe fittings can be made from various materials, including stainless steel, alloy steel, and carbon steel. These materials ensure the
fittings are suitable for different piping connections and environmental conditions. Threaded pipe fittings can be subdivided into many types, covering various forms from straight connections to angled connections, including threaded elbows, threaded cross fittings, threaded tees, threaded couplings, threaded caps, threaded unions, pup joints, reducing pup joints, hex nipples, threaded plugs, and threaded bushings.
In-Depth Look at SCH80 Pup Joints
SCH80 (Schedule 80) pup joints are a special type of threaded pipe fitting with a thicker wall compared to lower schedules like SCH40. This increased wall thickness provides higher pressure ratings and durability, making SCH80 pup joints suitable for more demanding applications.
Manufacturing Process and Standards
SCH80 pup joints are manufactured to stringent standards to ensure quality and reliability. The primary production standards include ANSI B16.11, which specifies the dimensions, tolerances, and material requirements for forged fittings, including pup joints.
4.The manufacturing process typically involves the following steps:
Material Selection: High-quality materials such as stainless steel, carbon steel, or alloy steel are selected based on the intended application and environmental conditions.
Cutting: The selected materials are cut into the required lengths for pup joints.
Threading: Precision machining tools are used to thread both ends of the cut pup joints, ensuring the accuracy and consistency of the threads. For SCH80 pup joints, the threading process must account for the thicker wall to ensure proper thread formation without compromising the structural integrity of the joint.
Inspection: Each pup joint undergoes rigorous inspection to verify its dimensions, thread quality, and overall compliance with standards. Non-destructive testing methods such as ultrasonic or radiographic testing may be used to detect internal defects.
Surface Treatment: Depending on the material and intended application, pup joints may undergo surface treatments such as galvanizing, passivation, or coating to enhance their corrosion resistance.
5.Applications of SCH80 Pup Joints
SCH80 pup joints are widely used in various industrial applications that require high pressure and durability. Common applications include:
Oil and Gas Industry: In the oil and gas industry, SCH80 pup joints are used in pipelines, refineries, and offshore platforms. Their high pressure ratings and corrosion resistance make them ideal for transporting crude oil, natural gas, and other hydrocarbons.
Chemical and Petrochemical Industry: SCH80 pup joints are used in chemical processing plants and petrochemical facilities to handle aggressive chemicals and corrosive substances. Their robust construction and material selection ensure reliable connections in harsh environments.
Power Industry: In power plants, SCH80 pup joints are used in high-pressure steam and water systems. Their ability to withstand high temperatures and pressures makes them suitable for critical applications such as boiler feed lines and turbine connections.
Water Treatment and Supply: SCH80 pup joints are also used in water treatment plants and municipal water supply systems. Their durability and corrosion resistance ensure long-term performance in both potable water and wastewater applications.
Industrial Manufacturing: Various manufacturing industries use SCH80 pup joints in their piping systems to transport liquids, gases, and slurries. The versatility and reliability of these fittings make them suitable for a wide range of applications, from food and beverage processing to automotive manufacturing.
6.Advantages of SCH80 Pup Joints
Compared to other types of fittings, SCH80 pup joints offer several advantages, making them the preferred choice in many industrial applications:
High Pressure and Temperature Ratings: The thicker wall of SCH80 pup joints provides higher pressure and temperature ratings, ensuring reliable performance in demanding environments.
Durability and Long Service Life: Made from high-quality materials, SCH80 pup joints are designed to withstand harsh conditions and provide extended service life, reducing the need for frequent replacements and maintenance.
Corrosion Resistance: Depending on the material and surface treatment, SCH80 pup joints offer excellent corrosion resistance, making them suitable for corrosive environments and media.
Ease of Installation and Maintenance: The threaded design of SCH80 pup joints allows for easy installation and removal, facilitating maintenance and repair without the need for specialized tools or equipment.
Versatility: SCH80 pup joints come in various sizes, materials, and thread types to meet the specific requirements of different applications and industries.
7.Conclusion
Pup joints, especially SCH80 pup joints, are essential components in industrial piping systems. Their high pressure and temperature ratings, durability, corrosion resistance, and ease of installation make them a reliable choice for various applications, from oil and gas to water treatment and industrial manufacturing.
By adhering to strict manufacturing standards and using high-quality materials, SCH80 pup joints ensure consistent performance and long service life even in the most demanding environments. As industrial demands continue to evolve and the need for more robust and reliable piping solutions grows, the importance of SCH80 pup joints in maintaining the integrity and efficiency of industrial systems will continue to increase.
