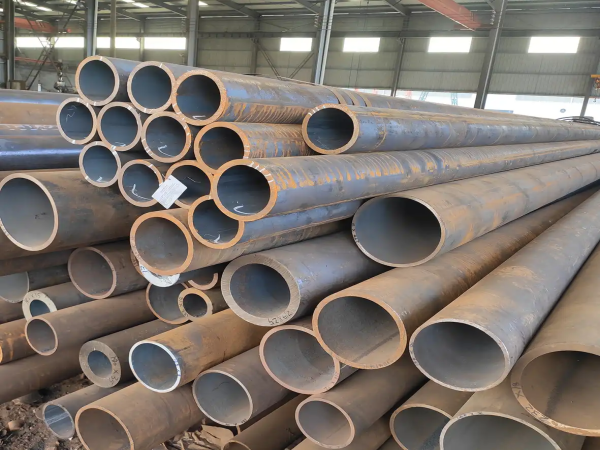

What is Schedule 60 Steel Pipe?
Schedule 60 steel pipe is a specific category of steel pipe that follows standardized wall thickness measurements. The term "schedule" refers to the wall thickness relative to the pipe’s diameter. This designation ensures consistent performance under varying pressure and temperature conditions.With sizes ranging from 8 to 24 inches, these pipes are available in various materials, including carbon steel and stainless steel, catering to industrial and commercial needs.
Understanding Pipe Schedules
Pipe schedules, including Schedule 60, indicate the nominal wall thickness. As the schedule number increases, the pipe wall becomes thicker. This thickness affects the pipe’s pressure-bearing capacity. Schedule 60 pipes strike a balance between moderate wall thickness and reliable strength, making them suitable for numerous applications.
Dimensions and Specifications of Schedule 60 Steel Pipe
The specific dimensions of Schedule 60 steel pipes are critical for their functionality. For example, a typical 10-inch steel pipe has a wall thickness of 0.5 millimeters, an outer diameter of 273 millimeters, and weighs 81.55 grams per meter. A 12-inch pipe features a 73.15-millimeter wall thickness and a 323-millimeter outer diameter. Larger options, such as 24-inch pipes, have a 610-millimeter outer diameter, a wall thickness of 24.61 millimeters, and weigh 355 kilograms per meter. These precise dimensions make Schedule 60 pipes reliable for medium-pressure applications.
Schedule 60 steel pipes are identified by their nominal pipe size (NPS) and wall thickness. The dimensions are standardized, ensuring compatibility with other fittings and components. These pipes are commonly manufactured in carbon steel and adhere to international standards such as ASTM and ASME.
|
Schedule 60 steel pipe size range
|
SCH 60 pipe Length
|
Schedule 60 pipe material
|
-
Nominal pipe size – 1/2” to 30” NPS
-
Wall thickness : 2.77 – 12.7mm
-
OD: 21.3 – 273 mm
|
-
6 meters
-
12 meters
-
Single random lengths (4 – 8 meters)
-
Double random lengths (8 – 13 meters)
-
Custom length or cut to length to save wastage
|
|
|
SCH 60 pipe condition of delivery
|
Manufacturing method of SCH 60 seamless pipe
|
Schedule 60 pipe American dimensional standard
|
-
BK- Hard/ Cold-finished
-
BKW – Soft/ Cold-finished
-
GBK – Annealed
-
NBK – Normalized
|
-
Cold drawn seamless SCH 60 pipe
-
Hot finished seamless SCH 60 pipe
|
-
ASME B36.10 carbon steel SCH 60 pipe
-
ASME B36.19 Stainless steel SCH 60 pipe
|
|
SCH 60 pipe required quality test
|
Schedule 60 pipe coating & surface
|
SCH 60 pipe end
|
-
Tensile mechanical test
-
Hardness test
-
Flattening test
-
Bend Test
|
-
Polished
-
FBE/ Epoxy
-
3PE
-
Varnished
|
-
PE (Plain End)
-
BE (Beveled Ends)
|
SCH 60 steel pipe dimensions
View SCH 60 pipe dimensions, weight & thickness in mm & inch
SCH 60 pipe
|
Pipe size
|
Outside Diameter (OD) in mm
|
Outside Diameter (OD) in Inch
|
Wall thickness [inches]
|
Schedule 60 Weight in kg/m
|
Schedule 60 Wall thickness in mm
|
Schedule 60 Wall thickness in inch
|
|
8″ NPS200
|
8.625
|
219.1
|
0.406
|
10.31
|
35.64
|
53.08
|
|
10″ NPS250
|
10.75
|
273
|
0.5
|
12.7
|
54.74
|
81.55
|
|
12″ NPS300
|
12.75
|
323.8
|
0.562
|
14.27
|
73.15
|
108.96
|
|
14″ NPS350
|
14
|
355.6
|
0.594
|
15.09
|
85.05
|
126.71
|
|
16″ NPS400
|
16
|
406.4
|
0.656
|
16.66
|
107.5
|
160.12
|
|
18″ NPS450
|
18
|
457
|
0.75
|
19.05
|
138.17
|
205.74
|
|
20″ NPS500
|
20
|
508
|
0.812
|
20.62
|
166.4
|
247.83
|
|
22″ NPS550
|
22
|
559
|
0.875
|
22.23
|
197.41
|
294.25
|
|
24″ NPS600
|
24
|
610
|
0.969
|
24.61
|
238.35
|
355.26
|
Applications of Schedule 60 Steel Pipe
Schedule 60 pipes are widely used due to their versatility and strength. Typical applications include:
-
Industrial Systems: Suitable for transporting fluids in moderate pressure systems.
-
Construction Projects: Used for structural support in buildings and infrastructure.
-
Mechanical Components: Ideal for machine parts requiring durable tubing.
Advantages of Schedule 60 Steel Pipe
-
Enhanced Durability: Provides excellent resistance to wear and tear.
-
Versatility: Can handle diverse conditions, including moderate pressure and temperature ranges.
-
Ease of Fabrication: Compatible with welding and other pipe-fitting techniques.
Choosing Schedule 60 for Your Project
Selecting Schedule 60 steel pipes depends on project requirements, such as operating pressure, temperature, and structural needs. Consulting with an expert ensures the right choice for specific applications.
Conclusion
Schedule 60 steel pipes are a reliable solution for applications requiring strength, precision, and resistance to environmental stress. Their standardized design and versatility make them an excellent choice across multiple industries. For optimal performance, sourcing pipes from trusted manufacturers is highly recommended.
