Will leakage occur if the pup Joint is damaged?

Date:2024-06-11Tags:Pup joints, casing and tubing, casing and tubing

Leakage accidents are one of the most common accidents in the oil industry, among which pup joint leakage accidents are also common. Some people worry whether all pup joints are prone to leakage accidents, so are oil casing pup joints prone to leakage accidents? According to various deeds, the cause of pup joint damage and leakage is generally due to aging, crack enlargement, and damage of high-pressure pipelines. When the casing pup joint is damaged, high-pressure oil and gas will leak out of the casing and tubing, causing serious environmental pollution and personal injury accidents. The following will introduce some causes of pup joint accidents and solutions.


What is a Pup joint?

Pup joints are short connecting parts in the pipeline system, usually used to connect two sections of pipelines or as the compensation part of the pipeline system. They are accessories for industrial pipelines. Common types include threaded pup joints, which are divided into double-end external threads, single-end external threads, flat-end external threads, and flange-connected pup joints. Pup joints are divided into tubing pup joints and casing pup joints. In pipe fitting connections, flanged pup joints are commonly used in conjunction with flanges.


Importance of pup joints

Pup joints play the role of connection, diversion, compensation and regulation in the pipeline system. Because they are located at the connection part of the pipeline system, they are often subjected to greater stress and pressure. If the pup joint leaks, it may cause a series of problems such as medium leakage, system pressure reduction, environmental pollution and safety accidents.

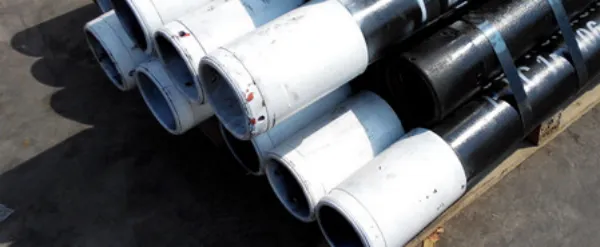

pup joints

Analysis of the causes of pup joint leakage accidents

There are many reasons for the leakage of pup joints, but the most common reason is improper operation. If the pup joint of the oil casing is not properly installed, it is easy to cause oil leakage and cause serious environmental pollution and personal injury accidents. Another common reason is pipeline aging and corrosion. As time goes by, the aging and corrosion of the pipeline intensify, which may also cause the leakage of the oil casing pup joint.


The material problem of the pup joint is one of the important reasons for leakage. Common material problems include:

Unqualified materials: Due to negligence in the procurement or production process, the material of the pup joint may not meet the design requirements, resulting in cracks, corrosion and other problems during use.

Pipeline aging and corrosion: Over time, the aging and corrosion of pipeline materials will increase, especially pipelines used in high temperature, high pressure and corrosive environments, which are prone to leakage.


Possible quality problems during the manufacturing process may also cause pup joint leakage:

Unqualified welding quality: Unqualified welding process will lead to weld defects such as pores, slag inclusions, incomplete penetration, etc., which will cause leakage.

Improper operation: Improper installation and maintenance operations may cause casing pup joints. Operators must strictly follow the specifications during installation and maintenance, otherwise it is easy to cause leakage.


Problems during the installation process may cause the pup joint to leak during use:

Excessive installation stress: If the construction sequence is not properly arranged or the operation is improper during the installation process, the pup joint may be subjected to excessive installation stress, causing leakage.

Poor sealing: Improper selection of sealing materials or non-standard sealing process will lead to poor sealing of the pup joint, resulting in leakage.


Improper operation and maintenance are also important causes of pup joint leakage:

Overpressure and overtemperature operation: Operation beyond the design pressure and temperature range will cause premature failure of the pup joint.

Untimely maintenance: If regular maintenance is not in place, the pup joint may leak due to accumulated fatigue damage and corrosion.


Preventive measures for pup joint leakage accidents

1. Timely maintenance and inspection, make a regular maintenance schedule, check on time for damage and aging, if it is old and slippery, replace it in time, remind each inspector to be patient and careful to check, because this can greatly avoid accidents.

2.Before purchasing the pup joint , make a reasonable design based on the size of the tubing and casing. When designing and installing the pup joint , take full account of the operating conditions and stress conditions to ensure that the structure and size of the pup joints are reasonable and avoid stress concentration and overload operation. If the installed pup joint is too large, it is easy to leak, and if it is too small, it may also leak due to instability.

3.During the installation process, the operation should be standardized to avoid excessive installation stress and poor sealing, and ensure the correct installation and good sealing of the pup joint.

4.Develop detailed emergency plans and conduct emergency drills regularly to improve the ability to respond to leakage accidents and reduce the losses and impacts of accidents.


Pup joint leakage accidents are common but not negligible safety hazards in industrial pipeline systems. Through strict control of materials, design, manufacturing, installation and maintenance, the occurrence of pup joint leakage accidents can be effectively prevented. At the same time, the formulation and implementation of scientific emergency plans can minimize the harm and losses caused by leakage accidents. Enterprises should attach great importance to the management of pup joints to ensure the safe operation of pipeline systems.
