Thickness tolerance of smls pipe

Date:2024-01-25Tags:smls pipe
Thickness tolerance of smls pipe

SMLS pipe is an important metal material widely used in petroleum, natural gas, chemical industry, electric power, aerospace and other fields. In order to ensure the quality and safety of smls pipes, relevant international implementation standards and thickness tolerances have been formulated.

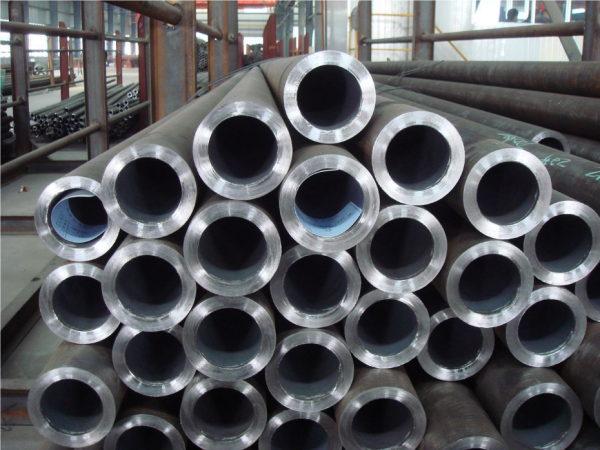

smls pipe

The implementation standards of smls pipes mainly include international standards and national standards.

International standards mainly include the following:

1. ASTM A53/A53M smls pipe Standard: This standard applies to seamless and welded steel pipes used for conveying water, gas and other non-pressure applications. The standard stipulates the size, chemical composition, mechanical properties and other requirements of smls pipes.

2. ASTM A106/A106M SMLS pipe standard: This standard is applicable to SMLS pipes in high temperature and high pressure environments for transporting water, gas, oil and other fluids. The standard stipulates the chemical composition, mechanical properties, dimensions and other requirements for smls pipes.

3. DIN 2391-1 Seamless precision steel tube standard: This standard is suitable for the manufacture of precision seamless steel tubes for use in the mechanical and automotive engineering fields. The standard stipulates the size, chemical composition, mechanical properties and other requirements of smls pipes.

National standards (China) mainly include the following:

1. GB/T 8163-2008 Standard for smls pipes for liquid transportation: This standard applies to smls pipes for transporting oil, natural gas and other liquids. The standard stipulates the chemical composition, mechanical properties, dimensions and other requirements for smls pipes.

2. GB/T 3087-2008 Standard for smls pipes for low and medium pressure boilers: This standard is applicable to smls pipes for low and medium pressure boilers and ultra-high pressure boilers. The standard stipulates the chemical composition, mechanical properties, dimensions and other requirements for smls pipes.

In addition to implementation standards, the allowable thickness deviation of smls pipes is also an important factor to consider. According to different standards and requirements, the allowable deviation of thickness also varies.

The allowable deviations of the outer diameter and wall thickness of smls pipes of different standards are not the same. In recent years, the proportion of smls pipes used in our country has increased. Due to its wide range of uses, higher requirements have been placed on its quality. requirements, among which the outer diameter and wall thickness deviation of smls pipes are one of the important indicators of its quality. Wall thickness deviation will directly affect the use of smls pipes.

During the production process, since the actual size is difficult to meet the nominal size requirements, that is, it is often larger or smaller than the nominal size, the standard stipulates that a difference between the actual size and the nominal size is allowed. A positive difference is called a positive deviation, and a negative difference is called a negative deviation.

Taking international standards as an example, according to the allowable thickness deviation specified in the ASTM A53/A53M smls pipe standard, for smls pipes with a wall thickness less than and equal to 0.219 inches (5.56mm), the allowable upper deviation does not exceed 0.014 inches (0.36mm). The allowable lower deviation does not exceed 0.005 inches (0.13mm). When the pipe wall thickness is greater than 0.219 inches (5.56mm), the allowable thickness deviation is plus or minus 12.5% of the pipe wall thickness.

The wall thickness of smls pipes cannot be the same everywhere. There is an objective phenomenon of uneven wall thickness in its cross section and longitudinal pipe body, that is, uneven wall thickness. In order to control this unevenness, let’s give an example respectively. For example, when the outer diameter of the smls pipe of the national standard GB/T8162 is greater than 50 mm, the allowable deviation of the outer diameter is plus or minus 1%. The outer diameter of the smls pipe is generally For example, for a smls pipe with an outer diameter of 60 mm, the allowable deviation of the outer diameter is plus or minus 0.06 mm, which is considered qualified. The allowable deviation of wall thickness is plus or minus 12.5%. If the wall thickness is 4 mm, the allowable deviation range is 4*12.5%=0.5 mm.

For example, ASTM A53 standard smls pipe, when the outer diameter is greater than 48.3 mm, the allowable deviation of the outer diameter is plus or minus 0.4 mm-0.79 mm, and the allowable deviation of the wall thickness is plus or minus 12.5%.

The implementation standards and thickness tolerances of smls pipes are important basis for ensuring the quality and safety of smls pipes. Different implementation standards and standard requirements have clear regulations on the size, chemical composition, mechanical properties and thickness allowable deviations of smls pipes. When producing and using smls pipes, it is necessary to strictly follow the corresponding standards to ensure the quality and reliability of smls pipes.
