API 5L X42 Pipes Specification and Applications

Date:2025-01-21Tags:API 5L, API 5L X42 pipe

API 5L X42 Pipes: Features, Strength, and Applications

API 5L Standard aims to gas and water in oil and gas industry for reference, which is used for seamless steel pipe and welded steel pipe, including common port and port, pipe socket port and direct stream tube (TFL) and port has for a particular connection tube processing.API 5L Standard is including steel grade (GR.B,X42 ,X46,X52,X56,X60,X65,X70).
API 5L X42 pipes are a versatile carbon steel solution designed for low to medium-pressure pipeline systems. With a minimum yield strength of 290 MPa, these pipes demonstrate superior performance compared to API 5L Grade B pipes in both chemical composition and mechanical properties. Their enhanced mechanical strength makes them more resistant to cracking, a critical factor in industrial applications that demand higher durability and reliability. For this reason, industries often opt for API 5L X42 pipes over API 5L Grade B pipes when strength and resistance are of paramount importance.

Material Composition and Corrosion Resistance

API 5L X42 pipes are characterized by their low carbon content, contributing to their excellent weldability and mechanical performance. The alloy composition typically includes manganese, phosphorus, and sulfur, which collectively enhance the pipe's mechanical strength and durability.
One of the standout features of API 5L X42 ERW (Electric Resistance Welded) pipes is their exceptional resistance to high-pressure conditions, extreme temperatures, and corrosive environments. These pipes exhibit notable resistance to hydrogen sulfide (H₂S)-induced corrosion, a significant advantage in applications involving sour gas or other highly corrosive substances.

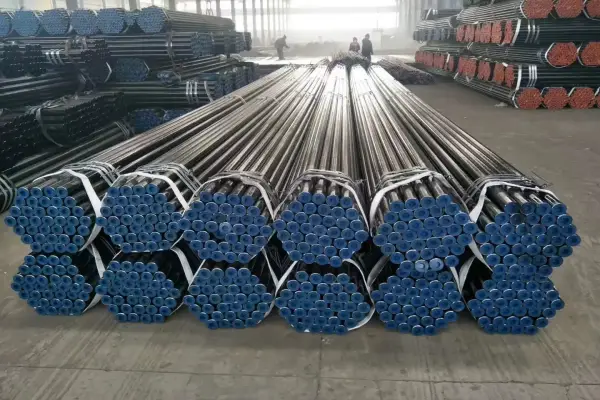

API 5L X42 Pipes


API 5L X42 Pipe Specification

The pipes ranges in PSL1, PSL2, Sour Services, for onshore and offshore.

API 5L X42 PSL1, in common delivery condition of As Rolled.
API 5L X42N/M/Q, for PSL2 pipe with delivery condition of N, M, and Q.
API 5L X42NS/MS/QS, used for sour services pipelines.

Suffix Letter Means
R: As rolled
N: Normalizing rolled, Normalized formed, Normalized
Q: Tempered and quenched
M: Thermomechanical rolled or thermomechanical formed
S: Sour Service

Standard of Api 5l X42 Pipe Suppliers API 5L X42 (Specification for Line Pipe - ANSI/API specification 5L - 44th Edition, October 1, 2007)
Acero api 5l x42 Sizes Nominal Pipe Size 1/2" to 48 " O.D.
Wall Thickness - Schedule 10 through 160, STD, XS, XXS.
Tuberia Api 5l x42 Product Specification Level (PSL) API 5L X42 PSL 2
API 5L X42 PSL 1


Thickness SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Applications Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes
Api 5l X42 Seamless Pipe Suppliers for Pipe End Plain, Bevel, Screwed, Threaded
API 5L X42 Pipes Type Seamless / ERW / Welded / Fabricated / CDW
API 5L X42 Line Pipe Length Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths
Testing and Inspection Reports EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Mill TC EN 10204 3.1, NABL Approved Lab, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate
Api 5l X42 Pipe Suppliers Packing API 5L X42 GR. B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Finishes Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.End Finishes:Beveled, Square Cut, Threaded & Coupled.
Api 5l X42 Erw Pipe Application & uses Suitable for Conveying gas, water, oil, and other liquefied media.
Other Suppliers of API 5L X42 Seamless steel pipe MSL, JSL, ISMT, USL, BAO, Lontrin, SMTM, TNRS and Wuxi
BS EN 10208-2:2009 API 5L X42 pipelines for combustible fluids. Suitable to use in maximum operating pressure over 16 bar.
Value added service for Api 5l X42 Psl2 pipe
  • Draw & Expansion as per required Size & Length
  • Fusion Bond Epoxy
  • Bending
  • Annealed
  • 3LPE
  • ARO
  • Machining etc.
  • Tar Epoxy
  • Galvanizing
  • Heat Treatment
  • Sand Blasting
Specialist in Api 5l X42 Pipe Suppliers, Api 5l X42 Erw Pipe, Api 5l X42 Seamless Pipe Suppliers, Api 5l X42 Psl2, Api 5l X42 Psl1 Pipe

Api 5l X42 Wall thickness & schedule chart

Nominal wall thickness/ Dimensions for API 5L X42 Pipe/ API 5L GR.B X42 seamless pipes according ANSI B36.10:

Wall Thickness (in)
NPS
(in)
Outside Diameter
(in)
SCH 10 SCH 20 SCH 30 SCH STD SCH 40 SCH 60 SCH XS SCH 80 SCH 100 SCH 120 SCH 140 SCH 160 SCH XXS
1/8 0.405 0.068 0.068 0.095 0.095
1/4 0.540 0.088 0.088 0.119 0.119
3/8 0.675 0.091 0.091 0.126 0.126
1/2 0.840 0.109 0.109 0.147 0.147 0.187 0.294
3/4 1.050 0.113 0.113 0.154 0.154 0.219 0.308
1 1.315 0.133 0.133 0.179 0.179 0.250 0.358
1 1/4 1.660 0.140 0.140 0.191 0.191 0.250 0.382
1 1/2 1.900 0.145 0.145 0.200 0.200 0.281 0.400
2 2.375 0.154 0.154 0.218 0.218 0.344 0.436
2 1/2 2.875 0.203 0.203 0.276 0.276 0.375 0.552
3 3.500 0.216 0.216 0.300 0.300 0.438 0.600
3 1/2 4.000 0.226 0.226 0.318 0.318
4 4.500 0.237 0.237 0.337 0.337 0.438 0.531 0.674
5 5.563 0.258 0.258 0.375 0.375 0.500 0.625 0.750
6 6.625 0.280 0.280 0.432 0.432 0.562 0.719 0.864
8 8.625 0.250 0.277 0.322 0.322 0.406 0.500 0.500 0.594 0.719 0.812 0.906 0.875
10 10.750 0.250 0.307 0.365 0.365 0.500 0.500 0.594 0.719 0.844 1.000 1.125 1.000
12 12.750 0.250 0.330 0.375 0.406 0.562 0.500 0.688 0.844 1.000 1.125 1.312 1.000
14 14.000 0.250 0.312 0.375 0.375 0.438 0.594 0.500 0.750 0.938 1.094 1.250 1.406
16 16.000 0.250 0.312 0.375 0.375 0.500 0.656 0.500 0.844 1.031 1.219 1.438 1.594
18 18.000 0.250 0.312 0.438 0.375 0.562 0.750 0.500 0.938 1.156 1.375 1.562 1.781
20 20.000 0.250 0.375 0.500 0.375 0.594 0.812 0.500 1.031 1.281 1.500 1.750 1.969
22 22.000 0.250 0.375 0.500 0.375 0.875 0.500 1.125 1.375 1.625 1.875 2.125
24 24.000 0.250 0.375 0.562 0.375 0.688 0.969 0.500 1.219 1.531 1.812 2.062 2.344
30 30.000 0.312 0.500 0.625 0.375 0.500
32 32.000 0.312 0.500 0.625 0.375 0.688
34 34.000 0.312 0.500 0.625 0.375 0.688
36 36.000 0.312 0.500 0.625 0.375 0.750
42 42.000 0.500 0.625 0.375 0.750
API 5L X42 welded, LSAW, SSAW,HFW and Seamless carbon steel line pipe in Diameter 1/2” to 60” & Wall thickness Schedule 10, SCH 40, SCH 80 & SCH 160
  • STD - Standard
  • XS - Extra Strong
  • XXS - Double Extra Strong

API 5L X42 Pipe: Strength Grades and Applications Overview

API 5L pipes are divided into multiple grades based on strength performance. The grade begins with "X" and is followed by a number, which represents the yield strength value (in PSI). For example, API 5L X42 PSL 2 pipe indicates a yield strength of approximately 42,000 PSI. This classification helps users select the appropriate piping material based on project requirements.

API 5L X42 pipe has slightly higher manganese content compared to Grade A and Grade B. The increase in manganese content gives the X42 pipe greater strength and hardness, giving it significant advantages in withstanding higher pressures and harsh environments. In addition, the control of carbon content in ISO 3183 L290 pipe is a highlight of its chemical properties. Although the carbon content of X42 grade is similar to that of B grade, it has a significantly higher carbon content than A grade, providing stronger mechanical properties.



Differences between PSL 1 and PSL 2

The production and specification of API 5L X42 pipes are based on the product standards developed by the API Technical Committee and are divided into two levels: PSL 1 and PSL 2:

PSL 1 (Product Specification Level 1)

PSL 1 is the basic standard level, intended for general use and suitable for non-critical projects. Its chemical composition and testing requirements are relatively loose, its production cost is low, and it is suitable for general transportation needs.

PSL 2 (Product Specification Level 2)

PSL 2 has stricter requirements on chemical composition control, test methods and quality inspection, including:
The content of chemical elements (such as sulfur, phosphorus and other impurity elements) is strictly limited.
The Charpy impact test must be passed to ensure low temperature toughness.
Traceability management is mandatory to ensure the integrity of quality records even after testing is completed.
Therefore, PSL 2 pipes are generally of higher quality and more reliable performance, and are suitable for application scenarios with higher requirements on safety and service life.

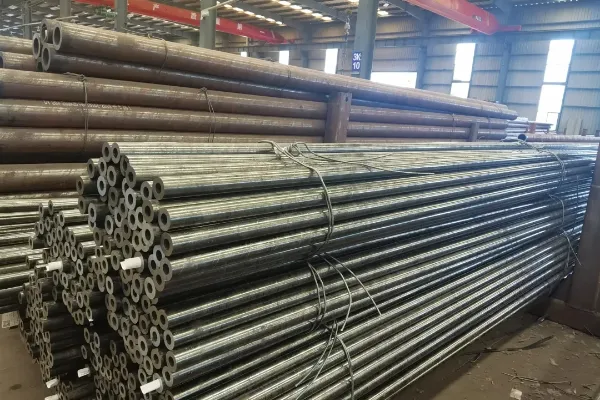

API 5L X42 Seamless Pipe Chemical Composition

PSL Steel Grade Carbon (C) Max Manganese (Mn) Max Phosphorus (P) Max Sulfur (S) Max Titanium (Ti) Max
PSL1 B 0.28 1.20 0.030 0.030 0.04
PSL1 X42 0.28 1.30 0.030 0.030 0.04
PSL2 B 0.24 1.20 0.025 0.015 0.04
PSL2 X42 0.24 1.30 0.025 0.015 0.04


Manufacturing process: seamless and ERW pipe selection

API 5L X42 pipes can be produced by either seamless or electric resistance welding (ERW).
Seamless pipe: Usually used in high pressure or high temperature environments, it has higher strength and pressure resistance due to its weld-free design.

ERW pipe: produced by resistance welding process, suitable for medium and low pressure transportation, with high production efficiency and low cost.

Seamless: Includes hot rolled seamless and cold drawn seamless, diameters up to 24 inch normally.
ERW: Electric Resistance Welded, OD up to 24 inch.
DSAW/SAW: Double Sub-merged Arck Welding, substitute welding methods than ERW for larger diameter welded pipes.
LSAW: Longitudinal Sub-merged Arc Welding, also called JCOE pipe, OD up to 56 inch. JCOE is named by manufacturing processes with J Shape, C shape, O shape and cold expanding process to release the pipe strength during transformations.
SSAW / HSAW: Spiral Sub-merged Arc Welding, or Helical SAW, diameters up to 100 inch

API 5L X42/L290 ERW Pipe Chemical Composition

Carbon (C) Max Manganese (Mn) Max Phosphorus (P) Max Sulfur (S) Max Vanadium (V) Niobium (Nb) Titanium (Ti)
0.26 1.20 0.030 0.030 c,d c,d d


API 5L X42 Seamless Pipe Mechanical Properties

PSL Steel Grade Yield Strength (MPa) Tensile Strength (MPa) Elongation (%)
Min Max Min
PSL1 B 241 414 414
PSL1 X42 290 414 414
PSL2 B 241 448 414
PSL2 X42 290 496 414



API 5L Pipe Quality Inspection Standards:


Hydrostatic Test
The pipe shall be subjected to a hydrostatic test with no leakage in the weld or pipe body. If the pipe section used has successfully passed the test, the joint does not need to be hydrostatically tested.

Bend Test
No cracks shall be present in any part of the test piece and no openings shall be present in the weld.

Flattening Test
The acceptance criteria for the flattening test shall be:

EW Pipe D<12.750 inches:

X60, T 500 inches. The weld shall not open until the distance between the plates is less than 66% of the original outside diameter. For all grades and wall thicknesses, it is 50%.
For pipes with D/t > 10, the weld shall not open until the distance between the plates is less than 30% of the original outside diameter.
For other sizes, refer to the complete API 5L specification.

CVN Impact Test for PSL2

Many PSL2 pipe sizes and grades require CVN. Seamless pipe will be tested inside the pipe body. Welded pipe is tested on the pipe body, pipe welds, and heat affected zone. Refer to the full API 5L specification for sizes and grades and a chart of required absorbed energy values.


Applications of API 5L X42 pipes

Thanks to their corrosion resistance and ability to withstand high-pressure environments, API 5L X42 pipes are widely used in industries such as:
Petroleum and Petrochemicals: Ideal for transporting oil and natural gas.
Oil and Gas Exploration: Suitable for pipelines in sour service conditions.
Heating and Chemical Industries: Efficient for conveying gases and fluids.
Paper Industry: Used in steam transport systems.

The pipes are commonly employed to transport gas, steam, and various fluids, proving their versatility in diverse industrial sectors.


API 5L Grade X42 Pipe Supplier.

Baowi steel is a major supplier of API 5L grade X42 pipes. We supply high quality pipes to customers all over the world. Stock pipes comply with NPS/NB dimensions of API5L in various thicknesses and can be customized as per customer requirements. All pipes we supply are strictly inspected by our in-house quality control department before delivery to our customers. All pipes come with full traceability and factory test certificates in accordance with EN 10204 3.1. Feel free to contact us
