ASTM A106 Grade B Pipe Specification

Date:2024-11-07Tags:ASTM, ASME SA106, seamless carbon steel pipe
ASTM A106/ASME SA106 is a standard specification for seamless carbon steel pipe for high temperature service. It includes three grades: A, B and C, of which Grade B is the most commonly used. This type of pipe is used in various industries, including piping systems for oil and gas, water and mineral slurry transportation. It is also used in boiler systems and for building and structural purposes.

ASTM A106 Grade B pipe is considered equivalent to ASTM A53 Grade B and API 5L Grade B in terms of chemical composition and mechanical properties. It is a carbon steel with a minimum yield strength of 240 MPa and a minimum tensile strength of 415 MPa.

Below, we will explain ASTM A106 Grade B pipe from different aspects:

ASTM A106 Grade B pipe (A106M - 18) is a standard specification for seamless carbon steel pipe for high temperature service. ASTM A106 pipe is always delivered in a seamless method and can be bent, coiled and flanged. Carbon Steel astm a106 Pipe, ASTM A106 Grade B pipe sizes, less than 2 inches, are usually delivered as cold drawn products. 2 inches and above are usually hot worked. SA106 pipe is expected to be used in high temperature applications. General Properties Steel Seamless Pipe Grade A106/A106M. - is a steel used for high temperature service, it is a steel capable of tasks such as bending, welding and flange connection.

What is A106 Pipe?

A106 Pipe is a black carbon steel pipe, A106 Gr B Sch 40, A106 Gr B Erw Pipe and ASTM A106 Seamless Pipe are suitable for high temperature and high pressure services. ASTM/ASME A-106/SA-106 Grade Seamless Pipe is one of our most widely used carbon steel grades and is readily available from stock in all standard thicknesses (up to SCH160). These A106 Seamless Pipe, SA106 Pipe, ASTM A106 Grade B Line Pipe are available in three different strengths of Grades A, B and C. NPS 1-1/2 and below may be A106 Grade B hot finished or A106 Grade B cold drawn. NPS 2 and above shall be A106 Grade B hot finished unless otherwise specified. Surface finish standards are outlined in the specification. SA106 material, ASTM A106 Grade A and ASTM A106 B are available in most sizes and schedule numbers, with SA106 Grade B allowing higher carbon and manganese content than Grade A. A106 Grade B Pipe, ASTM A106 Grade B Schedule 40 Pipe, and A106 Black Pipe offered by ASTM Seamless Pipes have a maximum carbon content of 0.23%.

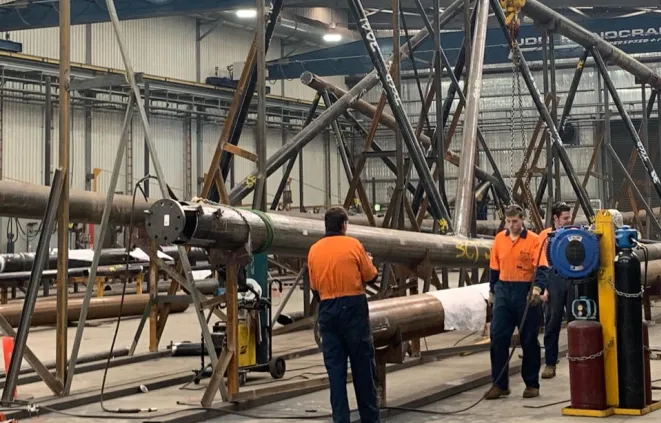

ASTM A106 Grade B Pipe

ASTM A106 Grade B Pipe Size Chart

This standard covers NPS (National Standard Straight Pipe) pipe sizes from 1/8” to 48” (10.3mm DN6 – 1219mm DN1200). It also complies with the nominal wall thickness specified in ASME B 36.10M. For sizes not covered by ASME B 36.10M, this standard specification may still be used.
NPS [inches] WT[inches] OD [mm] Weight [lb/ft] OD [inches] WT [mm] Weight [kg/m]
1/2 0.0109 21.03 MM 0.085 0.0840 2.077 MM 1.027
1/8 0.0068 10.03 MM 0.024 0.0405 1.073 MM 0.037
3/4 0.0113 26.07 MM 1.013 1.0050 2.087 MM 1.069
1/4 0.0088 13.07 MM 0.042 0.0540 2.024 MM 0.084
1 0.0133 33.04 MM 1.068 1.0315 3.038 MM 2.050
1 1/2 0.0145 48.03 MM 2.072 1.0900 3.068 MM 4.005
2 0.0154 60.03 MM 3.065 2.0375 3.091 MM 5.044
1 1/4 0.0140 42.02 MM 2.027 1.0660 3.056 MM 3.039
2 1/2 0.0203 73.00 MM 5.079 2.0875 5.016 MM 8.063
3 1/2 0.0226 101.06 MM 9.011 4.0000 5.074 MM 13.057
4 0.0237 114.03 MM 10.079 4.0500 6.002 MM 16.007
3 0.0216 88.09 MM 7.058 3.0500 5.049 MM 11.029
5 0.0258 141.03 MM 14.062 5.0563 6.055 MM 21.077
32 0.0688 813.00 MM 230.008 32 17.048 MM 342.091
8 0.0322 219.01 MM 28.055 8.0625 8.018 MM 42.055
6 0.0280 168.03 MM 18.097 6.0625 7.011 MM 28.026
10 0.0365 273.00 MM 40.048 10.0750 9.027 MM 60.031
14 0.0375 355.06 MM 54.057 14 11.013 MM 94.055
12 0.0406 323.08 MM 53.052 12.0750 10.031 MM 79.073
16 0.0500 406.04 MM 82.077 16 12.070 MM 123.030
20 0.0594 508.00 MM 123.011 20 15.009 MM 183.042
18 0.0562 457.00 MM 104.067 18 14.027 MM 155.080
24 0.0688 610.00 MM 171.029 24 17.048 MM 255.041

A106 Grade B Carbon Steel Pipe Chemical Composition

NB Size OD 5S 40S 10S S60 S20 S10 S40 S80 XS/80S S120 S100 S160 S140 XXS
milimeter
15 1/2” 21.034 1.07 2.08 2.01 2.077 3.073 3.073 4.078 7.047
1/4” 13.072 1.07 2.024 3.002
32 1 1/4” 42.016 1.07 3.06 2.08 3.056 4.085 4.085 6.035 9.07
1/8” 10.029 1.02 1.073 2.041
20 3/4” 26.067 1.07 2.09 2.01 2.087 3.091 3.091 5.056 7.082
3/8” 17.015 1.07 2.031 3.02
25 1” 33.04 1.07 3.04 2.08 3.038 4.055 4.055 6.035 9.009
50 2” 60.033 1.07 3.09 2.08 3.091 5.054 5.054 9.074 11.01
65 2 1/2” 73.003 2.01 5.02 3.01 5.016 7.001 7.001 9.053 14
40 1 1/2” 48.026 1.07 3.07 2.08 3.068 5.008 5.008 7.014 10.02
80 3” 88.09 2.01 5.05 3.01 5.049 7.062 7.062 11.01 15.02
100 4” 114.03 2.01 6 3.01 6.002 8.056 8.056 11.01 13.05 17.01
90 3 1/2” 101.06 2.01 5.07 3.01 5.074 8.008 8.008
125 5” 141.03 2.08 6.06 3.04 6.055 9.053 9.053 12.07 15.09 19.01
200 8” 219.01 2.08 8.02 3.08 10.03 6.04 8.018 12.07 12.07 19.03 15.01 23 20.06 22.02
250 10” 273.01 3.04 9.03 4.02 12.07 6.04 9.027 15.01 12.07 21.04 19.03 28.06 25.04 25.04
150 6” 168.03 2.08 7.01 3.04 7.011 11 10.097 14.03 18.03 22
300 12” 323.09 4 9.05 4.06 14.03 6.04 10.03 17.05 12.07 25.04 21.04 33.03 28.06 25.04
400 16” 406.04 4.02 9.05 4.08 16.07 7.09 6.04 12.07 21.04 12.07 31 26.02 40.05 36.05
450 18” 457.02 4.02 9.05 4.08 19.01 7.09 6.04 14.03 23.08 12.07 34.09 29.04 45.02 39.07
350 14” 355.06 4 9.05 4.08 15.01 7.09 6.04 11.01 19.01 12.07 27.08 23.08 35.07 31.08
500 20” 508 4.08 9.05 5.05 20.06 9.05 6.04 15.01 26.02 12.07 38.01 32.05 50 44.05
600 24” 609.06 5.05 9.05 6.04 24.06 9.05 6.04 17.05 31 12.07 46 38.09 59.05 52.04
650 26” 660.04 9.05 13 7.09 12.07
550 22” 558.08 4.08 9.05 5.05 22.02 9.05 6.04 28.06 12.07 41.03 34.09 54 47.06
700 28” 711.02 9.05 13 7.09 12.07
800 32” 812.08 9.05 13 7.09 17.05 12.07
850 34” 863.06 9.05 13 7.09 17.05 12.07
750 30” 762 6.04 9.05 7.09 13 7.09 12.07
900 36” 914.04 9.05 13 7.09 19.01 12.07

Raw Materials

The materials used in the ASTM A106 standard specification shall be suitable for bending, flanging or similar forming processes. If the steel is to be welded, the welding process shall be suitable for this grade of ASTM A106 and suitable for high temperature service environments.

If a higher grade or higher grade of ASTM A106 steel pipe is required, the standard provides optional supplementary requirement specifications. In addition, these supplementary specifications require additional testing when ordering pipes that meet this standard.

Standards Referenced for Manufacturing ASTM A106 Pipes

Referenced ASTM Standards:
a. ASTM A530/ A530M: This is a standard specification for general requirements for carbon steel and alloy pipes.
b. E213: Standard for ultrasonic testing.
c. E309: Standard for eddy current testing.
d. E381: Standard for macroetching test schedules for steel products such as rebar, billets, billets, and forged steel.
e. E570: Standard for Test Plans for Magnetic Flux Leakage Testing of Ferromagnetic Steel Pipe and Piping Products.
f. Related ASME Standards:
g. ASME B 36.10M: Standard Specification for Nominal Dimensions of Welded and Seamless Steel Pipe.
h. Related Military Standards:
i. MIL-STD-129: Standard for Marking for Shipping and Storage.
j. MIL-STD-163: Standard for Storage and Shipping of Steel Forgings.
k. Related Federal Standards:
l. Fed. Std. Federal Standard No. 123: Standard for Marking and Shipping for Civilian Agencies.
m. Fed. Std. No. 183: Standard Specification for Continuous ID Marking of Steel Products.
n. Surface Standards:

o. SSPC-SP 6: Standard Specification for Surface Preparation.


ASTM A106 Grade B Steel Pipe Specifications

Size Range: 1/2” NB to 36” NB
Thickness: SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Applications: Refineries, Petrochemical, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Plant, Pressure Vessels and General Engineering Purposes
Line Pipe End Connections: Plain, Beveled, Threaded, Threaded
Types: Seamless / ERW / Welded / Fabricated / CDW
Shapes: Round, Square, Rectangular, Coil, U-Tube, Coiled, Hydraulic
Lengths: Single Random, Double Random and Required Length, Custom Sizes - 12 Meter Lengths
Ends: Plain End, Beveled End, Threaded End
End Protection: Plastic Caps
External Coating: Black Paint, Anti-Corrosion Oil, Galvanized Surface Treatment, Surface Treatment as per Customer Requirement
Inspection, Test Report: Factory Test Certificate, EN 10204 3.1, Chemical report, Mechanical report, PMI test report, Visual inspection report, Third-party inspection report, NABL approved laboratory report, Destructive test report, Non-destructive test report, Indian Boiler Regulation (IBR) test certificate
Packing: Wooden box, plastic bag, steel strapping, or packaging as per customer requirements

Features: In addition to the above sizes and specifications, can be produced according to requirements


Seamless Pipe ASTM A106 Grade B Pressure Rating

Max. Pressure Allowable (psi)
NPS OD Sch
(in) (in) 40 20 60 30 10 100 140 160 XS STD 80 XXS 120
1/2 0.084 6358 10908 8575 6358 8575 17150
1/4 0.054 7985 10798 7985 10798
3/4 1.005 5273 10220 7187 5273 7187 14373
3/8 0.0675 6606 9147 6606 9147
1 1.0315 4956 9316 6670 4956 6670 13340
1 1/2 1.09 3739 7247 5158 3739 5158 10316
2 2.0375 3177 7097 4498 3177 4498 8995
1 1/4 1.066 4133 7380 5638 4133 5638 11276
2 1/2 2.0875 3460 6391 4704 3460 4704 9408
3 1/2 4 2769 3896 2769 3896
3 3.05 3024 6132 4200 3024 4200 8400
5 5.0563 2273 5505 3303 2273 3303 6606 4404
6 6.0625 2071 5318 3195 2071 3195 6390 4157
32 32 1054 766 957 478 574
4 4.05 2581 5782 3670 2581 3670 7339 4769
8 8.0625 1829 1420 2307 1574 3375 4613 5147 2841 1829 2841 4971 4085
12 12.075 1560 961 2160 1268 3244 4324 5042 1922 1441 2644 3843 3843
10 10.075 1664 1140 2279 1399 3277 4558 5128 2279 1664 2708 4558 3847
14 14 1533 1092 2079 1313 875 3283 4375 4921 1750 1313 2625 3829
18 18 1530 849 2042 1192 681 3147 4252 4848 1361 1021 2553 3743
16 16 1531 956 2009 1148 766 3157 4404 4882 1531 1148 2585 3733
20 20 1455 919 1989 1225 613 3138 4288 4824 1225 919 2526 3675
24 24 1405 766 1978 1147 510 3126 4210 4786 1021 766 2489 3700
30 30 817 1021 510 817 613
22 22 835 1949 1114 557 3063 4176 4733 1114 835 2506 3619
36 36 1021 681 851 425 510
34 34 992 721 901 450 540
42 42 875 583 729 438

SA 106 Gr B Pipe Surface Finish

End Finishes: Coupled, Square Cut, Threaded, Beveled
Surface Finishes: Oiled, Tape Wrap, Bare, Galv, Mill Varnish,FBE Dual, FBE, 3LPP, 3LPE, Concrete Coating, Coal Tar.

Purchase A106 Seamless Pipe in specific size Directly from manufacturer at factory price , Check out our inventory of A106 Steel Pipe



A106 Grade B Carbon Steel Pipe Applications

Low and medium pressure boiler
High pressure boiler
Ship-building
Liquid service
petroleum cracking
chemical fertilizer equipment
Drawing-oil-equipment and structure purposes



ASTM A106 Suppliers

Baowi Steel is an exporter and supplier of ASTM A106 welded pipe, ASTM A106 spiral welded pipe, ASTM A106 double welded pipe, ASTM A106 welded steel pipe, ASTM A106 seam welded pipe, A106 Gr B Sch 40 continuous welded pipe, ASTM A106 furnace welded pipe, ASTM A106 Grade B pipe and ASTM A106 longitudinal welded pipe.

We are well aware of the importance of reliability and durability in projects, so we strictly follow international standards for production. Each pipe is carefully manufactured and tested to ensure excellent strength, pressure resistance and corrosion resistance. Baowi Steel always focuses on customer needs and provides high-quality solutions to protect your projects. Choose Baowi Steel, choose a trustworthy partner, and make your project better!
