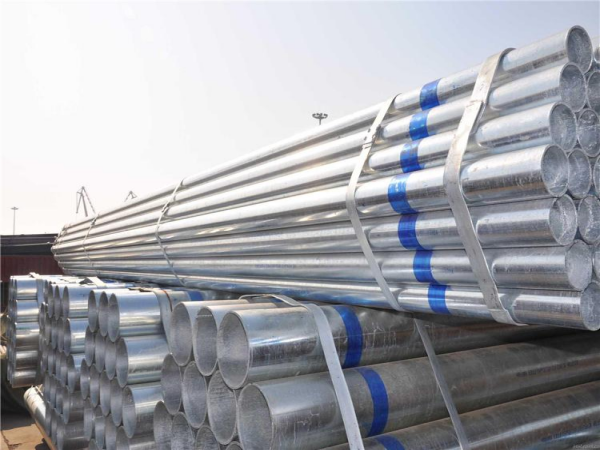

Galvanized steel pipe is a steel pipe with a zinc layer on the surface. The oxide layer on the steel surface is removed by pickling, and then immersed in a molten zinc bath to form an anti-corrosion layer. Galvanized steel pipes are widely used in construction, industry, agriculture and other fields that require rust and corrosion protection. Schedule 80 galvanized steel pipes represent a type of galvanized steel pipe with a larger wall thickness, which can withstand higher pressure and more severe use environment.
What is Schedule 80 galvanized steel pipe?
Schedule 80 galvanized steel pipe is a high-walled steel pipe that meets ASTM and other standards. Compared with the common
Schedule 40 pipe, the 80 steel pipe has a thicker wall thickness and is usually used in environments with high pressure and high strength requirements. After the steel pipe surface is galvanized, it has excellent anti-corrosion performance and can be used for a long time in harsh environments such as humidity and corrosive gases.
The "80" logo indicates the wall thickness standard of the pipe. According to the
Schedule pipe standard, the wall thickness of No. 80 steel pipe is thicker than that of No. 40, so with the same outer diameter, No. 80 pipe can withstand higher pressure and has stronger mechanical strength. Such pipes are widely used in the fields of chemical industry, oil and gas transportation, and industrial construction, especially in places where long-term corrosion resistance and pressure resistance are required.
Manufacturing process of Schedule 80 galvanized steel pipe
The process of manufacturing Schedule 80 galvanized steel pipe includes multiple steps, starting with the initial manufacturing of the steel pipe and then the galvanizing process. The specific steps are as follows:
Steel pipe manufacturing: The initial steel pipe is usually made of carbon steel material through welding or seamless manufacturing processes. Welded steel pipe is made by rolling steel plate into a tube and welding along the seam, while seamless steel pipe is directly manufactured into a tube by extrusion or drawing. Schedule 80 galvanized pipe requires steel pipes with high strength and thick walls, so high-quality steel and precise process control are required.
Pickling and cleaning: Before galvanizing, the steel pipe needs to be pickled to remove oxides and other impurities on the surface. The pickling process uses a weak acid solution to clean the surface of the steel pipe to ensure that the galvanized layer can be evenly attached.
Hot-dip galvanizing: The pickled steel pipe is immersed in a molten zinc bath, and the zinc combines with the surface of the steel pipe through a chemical reaction to form a dense galvanized layer. This layer of galvanizing not only has a good anti-rust effect, but also improves the wear resistance and corrosion resistance of the steel pipe. The surface of the galvanized steel pipe usually presents a silver-gray color and has good aesthetics.
Cooling and inspection: After galvanizing, the steel pipe needs to be cooled and surface inspected to ensure that the thickness of the zinc layer meets the standard requirements and there are no obvious defects on the surface of the pipe.
Performance characteristics of Schedule 80 galvanized steel pipe
1. High strength and pressure resistance
Schedule 80 galvanized steel pipe has higher tensile strength and pressure resistance due to its thicker wall. In a high-pressure environment, it can withstand much more pressure than the standard pipe of Schedule 40. This makes it excellent in pipeline systems that require high-pressure transmission, such as industrial liquid and gas transportation, oil and gas pipelines, etc.
2. Excellent anti-corrosion performance
Through galvanizing, Schedule 80 steel pipe has good anti-corrosion performance. The zinc layer can not only effectively prevent the steel pipe itself from rusting due to reaction with moisture and oxygen in the air, but also can resist a certain degree of acidic or alkaline environment. Therefore, it is widely used in fields that require corrosion protection, such as water treatment, petrochemical industry, and building support.
3. Durability and long life
The life of galvanized pipes is generally much longer than that of untreated carbon steel pipes. The zinc layer provides additional protection for the pipes, which not only reduces the frequency of maintenance, but also extends the service life of the pipes. Schedule 80 galvanized pipes are particularly suitable for applications that are exposed to harsh environments for a long time, such as outdoor pipes, underground pipes, and corrosive chemical delivery systems.
4. Applicable temperature and pressure range
Schedule 80 galvanized pipes can work in a wide temperature range, with a maximum temperature of up to 140 degrees Fahrenheit (about 60 degrees Celsius). At room temperature, they can withstand fairly high working pressures. The specific pressure rating varies depending on the size of the pipe, and
Schedule 80 pipe can typically withstand pressures from 280 psi to 690 psi.
Schedule 80 Galvanized Steel Pipe Size Standards
Schedule 80 galvanized steel pipes come in a wide range of sizes, usually defined by their nominal size. Common nominal sizes range from 1/8" to 16", and the outer diameter of the pipe varies with the nominal size. Here are some typical size references:
Nominal size: 1/8" to 16";
Outer diameter (OD): The outer diameter varies with the nominal size;
Wall thickness: According to the Schedule 80 standard, the wall thickness is much thicker than the standard wall thickness of Schedule 40, and the specific thickness varies with the nominal size;
Length: The standard length is usually 21 feet (about 6.4 meters) to 24 feet (about 7.3 meters).
This flexible range of sizes allows Schedule 80 galvanized pipes to adapt to different installation requirements, whether for piping systems or building support structures, the appropriate size and wall thickness can be selected according to the needs.
Typical Applications of Schedule 80 Galvanized Pipes
Due to their high strength and corrosion resistance, Schedule 80 galvanized steel pipes are widely used in many fields:
Construction: In building construction, galvanized steel pipes are often used for support structures, scaffolding, and water supply systems of buildings. Their high strength and durability allow them to cope with complex construction requirements while maintaining structural stability over time.
Industrial Liquid and Gas Transportation: Galvanized steel pipes are ideal for liquid and gas transportation in industrial sites such as chemical plants and oil fields. Their anti-corrosion properties make them particularly suitable when handling corrosive chemicals.
Agricultural Applications: In agricultural facilities, galvanized steel pipes are often used as pipes for irrigation systems or as fences for livestock farms. They can resist the erosion of moisture, fertilizers and pesticides in the environment, thereby extending their service life.
Municipal engineering: Galvanized steel pipes are also commonly used in urban water supply and drainage systems. Especially in some pipe networks that require high-pressure transmission, Schedule 80 pipes can provide better safety and reliability.
Pressure rating of Schedule 80 galvanized steel pipes
The pressure rating of Schedule 80 galvanized steel pipes is closely related to their size. At room temperature, the pressure range that Schedule 80 galvanized pipes of different sizes can withstand is as follows:
1/8 inch to 1 inch: 690 psi;
1 1/4 inch to 2 inch: 630 psi;
2 1/2 inch to 3 inch: 550 psi;
3 1/2 inch to 4 inch: 510 psi;
5 inch to 6 inch: 490 psi;
8 inch to 10 inch: 420 psi;
12 inch to 14 inch: 360 psi;
16 inch: 280 psi.
These pressure ratings mean that Schedule 80 galvanized steel pipe can be used in higher pressure applications such as industrial and municipal water supply systems, steam pipes and high-pressure natural gas pipelines.
Conclusion
Schedule 80 galvanized steel pipe is an ideal choice for many industries due to its thick wall, high strength and excellent corrosion resistance. Whether in construction, industry, agriculture or municipal engineering, Schedule 80 galvanized pipe can provide a reliable long-term solution, reduce maintenance costs and extend service life. As the demand for high-performance steel pipe increases, the application range and demand for galvanized steel pipe will continue to expand.
