API 5B Thread Pup Joints

Date:2025-10-23Tags:API 5B, Thread Pup Joints

In the oil and gas industry, reliable connections between pipes are critical for the efficiency and safety of drilling and production operations. One essential component that ensures smooth pipe connection is the Pup Joint. When combined with API 5B threads, these joints achieve high precision, strong sealing performance, and excellent interchangeability. API 5B Thread Pup Joints are widely used in tubing, casing, and drill pipe systems to adjust string length, facilitate maintenance, and ensure tight and secure connections.


Learn about API threads in one minute.

Since its founding in 1919, the American Petroleum Institute (API) has been the leading authority on the oil and gas manufacturing industry, developing, refining, and maintaining a core set of standards designed to ensure global safety and efficiency.
At its core is API Specification 5B, which details the precise thread dimensions for casing and tubing.
This specification seamlessly integrates with pipe standards such as API 5CT (for well casing) and 5L (for line pipe).
In essence, the 5B specification transforms raw geological chaos into standardized, optimized geometries that the entire industry relies on and uses daily.


What Are API 5B Thread Pup Joints?

API 5B Thread Pup Joints are short sections of tubing or casing equipped with threaded ends manufactured according to API 5B specifications. The API 5B standard defines the technical requirements for thread gauging and inspection of threaded connections used in oilfield equipment. This ensures that the threads on Pup Joints are consistent, accurate, and compatible with other API-compliant components.

Typically, these joints range from 2 feet to 12 feet in length and are made from the same material grade as the parent pipe—such as J55, N80, L80, or P110. They serve as adjustable spacers in the tubing or casing string, helping operators fine-tune string length without cutting or replacing longer pipes.

Understanding API 5B Thread Standards

The API 5B standard is the foundation of thread manufacturing for oilfield tubular goods. It provides detailed requirements for thread geometry, gauging, tolerance, inspection, and thread repair.
Common API 5B Thread Types

1.API Round Thread (BTC, STC, LTC)

Widely used in casing connections.
Features rounded thread crests and roots for reliable sealing.
Suitable for moderate pressure environments.


2.API Buttress Thread (BTC)

Designed for high axial loads.
Provides excellent strength and sealing capability.
Commonly used in casing strings for deep wells.


3.API Line Pipe Thread (LP)

Used in pipelines and flowlines.
Offers quick make-up and disassembly features.
Ideal for surface pipeline systems.
Each thread type must pass API 5B gauging inspections to ensure perfect fit and uniformity across components. This guarantees leak-free connections and mechanical stability during drilling or production.

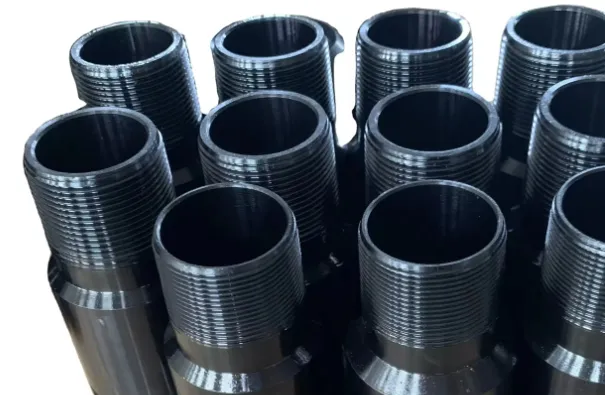

Thread Pup Joints

Applications in the Oil and Gas Industry

API 5B Thread Pup Joints are indispensable in:
Oil and Gas Production Tubing Systems
Casing Connections in Deep Wells
Drilling Rigs and Wellheads
Pipeline Pressure Testing Units
Geothermal and Water Wells
They offer operational flexibility, allowing engineers to adjust lengths or replace components quickly during drilling or maintenance.
