American Standard Seamless Steel Pipe

Date:2024-08-07Tags:seamless steel pipe, American standard, ASTM

Seamless steel pipe is made of steel ingot or solid tube billet by perforation, and then hot rolled, cold rolled or cold drawn. Compared with ordinary steel pipe, seamless steel pipe can withstand higher pressure. Therefore, in industrial production, seamless steel pipe is generally used for pipelines that need to withstand greater pressure. Some people call it "the micro-blood vessels in industry". Whether it is manufacturing airplanes, ships, trains, or transporting oil, gas, and water, it is needed.


What is ANSI seamless steel pipe?

The expression method of the wall thickness grade series of ANSI seamless steel pipe is different in different implementation standards. There are three main ways to express the wall thickness of ANSI steel pipe: Indicated by ANSI steel pipe number (Sch): For carbon steel seamless pipe wall thickness, there are 10 grades: Sch10, 20, 30, 40, 60, 80, 100, 120, 140, 160, etc. The national standard seamless steel pipe symbol is represented by letters + numbers, such as "Φ114" represents a seamless steel pipe with an outer diameter of 114mm, and "10#" represents a seamless steel pipe with a wall thickness of 10mm. The American standard seamless steel pipe symbol is represented by numbers + letters, such as "2-1/2NB" represents a seamless steel pipe with an outer diameter of 2-1/2 inches, and "XXS" represents a seamless steel pipe with a wall thickness grade of XXS (extra thick).

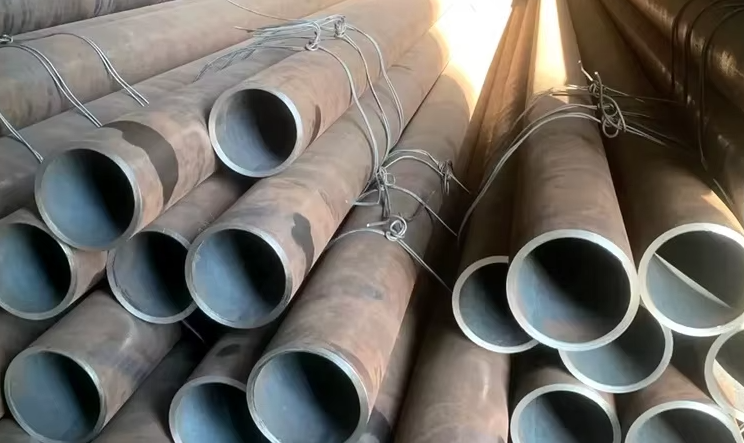

Seamless steel pipe

The main products of American standard seamless steel pipes are:

1. General purpose seamless steel pipe ASTM A53 GR.B
Steel grade: SA53 B
Specifications: 1/4″-28″, 13.7-711.2mm.SA53 GR.B
Tensile strength: ≥415 (MPa), yield strength: ≥240 (MPa)
Steel grade: GRAD B
Standard: ASTM A 53, suitable for pressure piping systems, pipeline pipes, general purpose pipelines, and high temperature operations with temperatures below 350℃.

There are two ways to indicate the specifications of American standard seamless steel pipes:

The first method is outer diameter*wall thickness (e.g. 114.3*6.02mm)
The second method is inch*number (e.g. 2”*SCH80)
There are three ways to indicate the wall thickness of American standard seamless steel pipes: pipe number, wall thickness size and pipe weight
1. The wall thickness is indicated by the pipe number "Sch".
2.The pipe number is the ratio of the design pressure of the pipe to the allowable stress of the material at the design temperature multiplied by 1000 and rounded. That is: Sch=P/[o]tx1000
3.ASME B36.10M wall thickness grades Sch10, Sch20, Sch30, Sch40, Sch60, Sch80, Sch100, Sch120, Sch140, Sch160 2. Indicated by the wall thickness size of American standard seamless steel pipes China, IS0, and Japan adopt some American standard seamless steel pipe standards


The wall thickness of the pipe is expressed by the weight of the pipe. It divides the wall thickness of the pipe into three types

a. Standard weight pipe, expressed as STD
b. Thickened pipe 0 is expressed as XS
c. Extra thick pipe mouth is expressed as XXS.
For pipes with DN≤250mm, Sch40 is equivalent to STD, and for pipes with DN<200mm, Sch80 is equivalent to XS.

American standard seamless steel pipe materials include:

1. API 5L seamless steel pipe for pipeline
Material includes: GR.B, X42, X52, X60, X65, X70
2. ASTM A36/ASME SA-36 carbon structural steel,
Material includes: A36 SA-36
3. ASTM A53/ASME SA-53 uncoated and hot-dip galvanized welded and seamless nominal steel pipe materials include: A53 GR.A, A53GR.B
4. ASTM A106/ASME SA-106 Seamless carbon steel nominal pipe for high temperature
Material includes: A106 GR.A, A106GR, B, A106 GR.C, SA-106 GR.A, SA-106GR.B, SA-106 GR.C5.ASTM A210/ASME SA-210 Seamless medium carbon steel pipe for boiler and superheater Materials include: SA-210A1, SA-210C, etc.
6.ASTM A335/ASME SA-335 Seamless ferrite alloy steel nominal pipe for high temperature Materials include: T/P11, T/P12, T/P91, T/P92, T/P22, T/P5, T/P9, T/P237.ASTM A333/ASME SA-333 Seamless and welded steel pipe for low temperature equipment
Material includes: A333 GR.6, etc.
8.ASTM A500/ASMESA-500 round and special-shaped cold-formed welded and seamless carbon steel structural pipes include: A500 GR.A, A500 GR.B
9.ASTM A519/ASMESA-519 seamless carbon steel pipes and alloy mechanical pipes
Material includes: 1020, 1040, 4130, 4140, 4340
10.ASTM A179/SA-179M seamless cold-drawn low-carbon steel pipes for heat exchangers and condensers include: SA-179M
11.ASTM A192/SA-192M seamless carbon steel boiler pipes for high pressure include: SA-192M
12.ASTM A209/SA-209M seamless carbon-molybdenum alloy steel pipes for boilers and superheaters include: SA-209M T1a

13.ASTM A213/SA-213M Seamless ferrite and austenite alloy steel pipes for boilers, superheaters and heat exchangers include: SA-213M T11, T12, T22, T23, T91

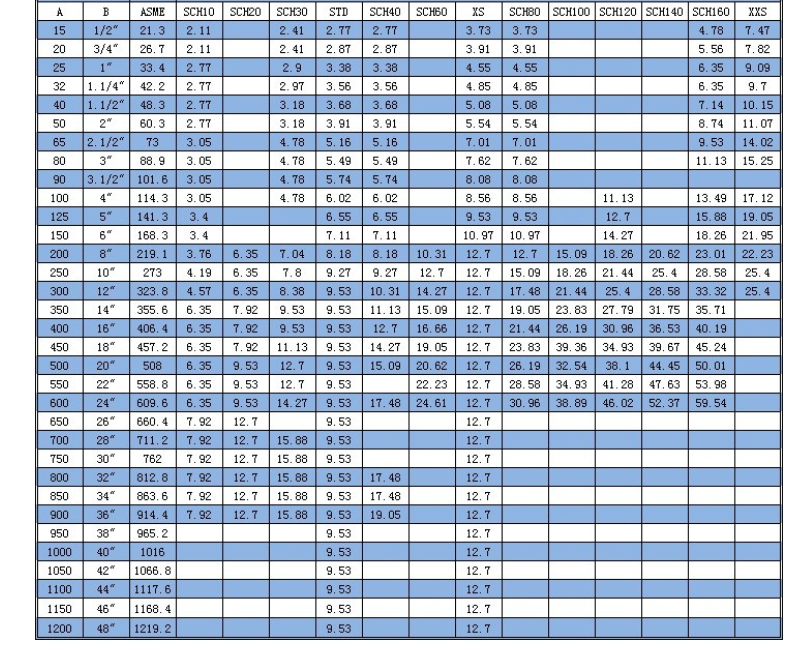

American Standard Seamless Steel Pipe Chart

The main implementation standards of American standard seamless steel pipes are as follows:

API5L seamless steel pipe for pipelines
ASTM A36/ASME SA-36 carbon structural steel
ASTM A53/ASME SA-53 uncoated and hot-dip galvanized welded and seamless nominal steel pipes
ASTM A106/ASME SA-106 seamless carbon steel nominal pipes for high temperature
ASTM A210/ASME SA-210 seamless medium carbon steel pipes for boilers and superheaters
ASTM A335/ASME SA-335 seamless ferrite alloy steel nominal pipes for high temperature
ASTM A333/ASME SA-333 seamless and welded steel pipes for low temperature equipment
ASTM A500/ASME SA-500 round and special-shaped cold-formed welded and seamless carbon steel structural pipes
ASTM A519/ASME SA-519 seamless carbon steel pipe and alloy mechanical pipe
ASTM A29/ASME SA-29 hot-worked carbon steel pipe and alloy steel pipe
ASTM A179/ SA-179/SA-179M seamless cold-drawn low-carbon steel pipe for heat exchangers and condensers
ASTM A192/ SA-192/SA-192M seamless carbon steel boiler pipe for high pressure
ASTM A209/SA-209/SA-209M seamless carbon-molybdenum alloy steel pipe for boilers and superheaters
ASTM A213/SA-213/SA-213M seamless ferritic and austenitic alloy steel pipe for boilers, superheaters and heat exchangers
