Heavy Weight Drill Pipe Size and Weight Chart

Choosing the correct Heavy Weight Drill Pipe (HWDP) is critical for maintaining drill string stability, reducing fatigue failure, and improving drilling performance.
In modern oil and gas drilling operations, HWDP serves as the transition component between drill collars and drill pipe. It provides additional weight on bit while reducing stress concentration within the drill string. Because of its unique wall thickness and weight characteristics, selecting the correct HWDP size is essential for both vertical and directional wells.

In real-world drilling operations, selecting the correct HWDP size and weight is essential for ensuring:
Safe drilling string design
Proper load distribution
Improved directional control
Reduced mechanical failure risk

This article provides a professionally structured HWDP Weight Chart based on API 7-1 standards, designed for drilling engineers, procurement teams, and oilfield technical specialists.

1.What Is Heavy Weight Drill Pipe (HWDP)?

Heavy Weight Drill Pipe is designed to provide a controlled transition in stiffness and weight within the drill string.
It helps to:
Reduce bending stress in drilling string
Improve directional drilling accuracy
Increase fatigue resistance
Provide better torque transmission
Compared with standard drill pipe, HWDP has thicker walls and higher stiffness, but it is lighter than drill collars.

2.Heavy Weight Drill Pipe Size Chart

Positioned between drill collars and drill pipe, HWDP delivers additional weight on bit while maintaining greater flexibility. Standard sizes typically range from 2-7/8" to 6-5/8" OD, making it suitable for a wide range of vertical, directional, and horizontal drilling operations.

Nominal Size	OD (mm)
2-3/8"	60.3
2-7/8"	73
3-1/2"	88.9
4"	101.6
4-1/2"	114.3
5"	127
5-1/2"	139.7
6-5/8"	168.3

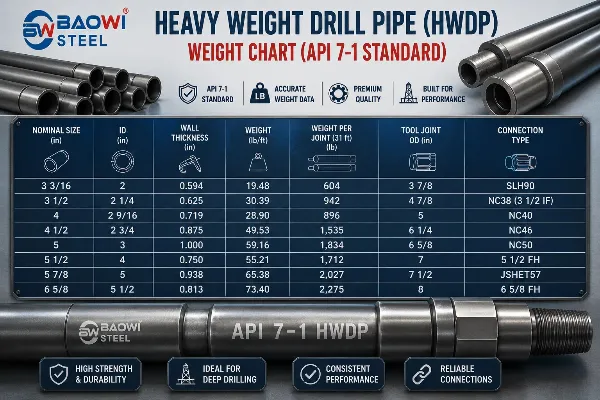

3.HWDP Weight Chart Overview (API 7-1 Standard)

The following chart summarizes the most commonly used HWDP specifications, including pipe weight, joint weight, tool joint dimensions, and connection types.

4.Available Steel Grades of HWDP

Different steel grades are available to suit various drilling depths and operating conditions.

Grade	Typical Application
DZ50	Shallow Wells
E75	Standard Drilling
R780	Medium-Depth Wells
X95	Directional Drilling
G105	Deep Wells
S135	High-Torque & Deep Drilling

5.Heavy Weight Drill Pipe for Sale

We supply API 5DP and API Spec 7-1 compliant Heavy Weight Drill Pipe in standard and customized configurations. Available sizes range from 2-3/8" to 6-5/8" with multiple grades, upset types, and thread connections. Custom dimensions, wall thicknesses, and connection options can be provided according to project requirements.

6.How to Calculate Heavy Weight Drill Pipe Pressure Capacity

The pressure capacity of Heavy Weight Drill Pipe (HWDP) is commonly evaluated using burst pressure calculations. The result depends on the pipe's outside diameter (OD), wall thickness, and the yield strength of the steel grade.
A simplified burst pressure formula is:

Burst Pressure (psi) = (2 × Yield Strength × Wall Thickness) ÷ OD

Parameter	Description
Yield Strength	Steel grade yield strength (psi)
Wall Thickness	Pipe wall thickness (in.)
OD	Outside diameter of the pipe (in.)

6.1Example Calculation
Assume a 5" HWDP with:
OD = 5.000 in.
Wall Thickness = 0.500 in.
Yield Strength = 135,000 psi (S135)
The theoretical burst pressure is:
Burst Pressure = (2 × 135,000 × 0.500) ÷ 5
Burst Pressure = 27,000 psi
This value represents the theoretical pressure capacity before applying safety factors.

6.2Factors Affecting Pressure Capacity
Several factors can influence the actual pressure performance of HWDP:
Steel grade (E75, X95, G105, S135)
Wall thickness
Corrosion allowance
Temperature
Wear and fatigue
Manufacturing tolerances
Therefore, drilling engineers typically apply safety factors and refer to API specifications when determining allowable working pressure.

FAQ

What is the standard weight of 5" HWDP?

A standard 5" HWDP typically weighs approximately 93 lb/ft (138.4 kg/m).

Why is HWDP used in a drill string?

HWDP provides a smooth transition between drill collars and drill pipe, reducing fatigue stress and improving weight transfer.

What is the difference between HWDP and drill collars?

Drill collars provide maximum weight on bit, while HWDP offers a balance between weight and flexibility.

What material is used for Heavy Weight Drill Pipe?

Most HWDP products are manufactured from AISI 4145H modified alloy steel for superior strength and fatigue resistance.
