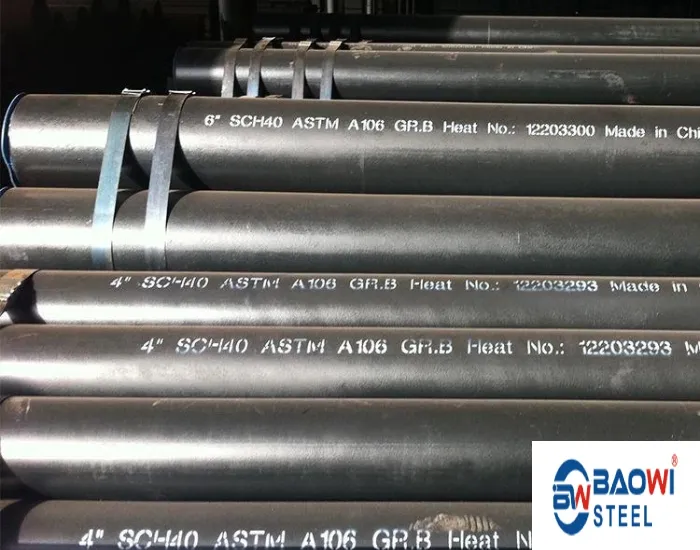

Schedule 40 Seamless Black Steel Pipe

Schedule 40 seamless black steel pipe is a type of ungalvanized seamless carbon steel pipe manufactured with a standardized Schedule 40 wall thickness. It combines the seamless construction of the pipe with the dimensional requirements of Schedule 40 and the ungalvanized surface commonly associated with black steel pipe.

This combination is used in industrial piping, steam and fluid service, oil and gas applications, and other systems where the required material grade, dimensions, temperature, pressure, and corrosion conditions are properly matched to the application.

What Is Schedule 40 Seamless Black Steel Pipe?

The term Schedule 40 seamless black steel pipe describes three characteristics of the pipe:
Schedule 40 identifies a standardized wall-thickness designation for a given nominal pipe size.
Seamless means the pipe is manufactured without a longitudinal welded seam.
Black steel generally refers to ungalvanized steel pipe with a dark mill or oxide surface rather than a zinc coating.
Schedule 40 is a dimensional designation, not a universal pressure rating. The allowable working pressure of a pipe depends on factors such as the material grade, pipe dimensions, operating temperature, design code, and service conditions.
ASME B36.10 standardizes dimensions for welded and seamless wrought steel pipe, while ASTM specifications establish additional requirements for particular pipe materials and services.

Schedule 40 Seamless Black Steel Pipe Size Chart

The following table shows commonly used Schedule 40 dimensions based on the standard NPS/ASME B36.10 dimensional system.

Nominal Pipe Size (NPS)	Outside Diameter (in.)	Outside Diameter (mm)	Nominal Wall Thickness (in.)	Nominal Wall Thickness (mm)
1/8	0.405	10.3	0.068	1.73
1/4	0.54	13.7	0.088	2.24
1/2	0.84	21.3	0.109	2.77
3/4	1.05	26.7	0.113	2.87
1	1.315	33.4	0.133	3.38
1 1/4	1.66	42.2	0.14	3.56
1 1/2	1.9	48.3	0.145	3.68
2	2.375	60.3	0.154	3.91
2 1/2	2.875	73	0.203	5.16
3	3.5	88.9	0.216	5.49
4	4.5	114.3	0.237	6.02
5	5.563	141.3	0.258	6.55
6	6.625	168.3	0.28	7.11
8	8.625	219.1	0.322	8.18
10	10.75	273	0.365	9.27
12	12.75	323.8	0.406	10.31
14	14	355.6	0.375	9.53
16	16	406.4	0.5	12.7
18	18	457	0.562	14.27
20	20	508	0.594	15.09
24	24	610	0.688	17.48

Note: NPS is a nominal designation and does not necessarily equal the actual outside diameter. For project procurement, the applicable edition of the dimensional standard and the manufacturer's certified dimensional data should be used.

Schedule 40 Seamless Black Steel Pipe Specifications

A complete pipe specification should include more than the schedule number.

Specification	Typical Description
Pipe type	Seamless carbon steel pipe
Schedule	Schedule 40
Nominal size	NPS 1/8 and above, depending on applicable standard
Surface	Black / ungalvanized
Outside diameter	Determined by NPS
Wall thickness	Schedule 40
Common material standards	ASTM A53, ASTM A106 and other project-specified grades
Manufacturing	Seamless
End type	Plain, beveled or threaded, depending on requirements
Testing	According to the applicable material and project specification
Surface protection	Uncoated or additional coating when required

The exact specification should always be stated together with the pipe standard. For example, ASTM A106 Grade B, NPS 4, Schedule 40, seamless, black finish is much more precise than simply ordering “4-inch black steel pipe.”

Common Materials for Schedule 40 Seamless Black Steel Pipe

ASTM A106 Grade B
ASTM A106 covers seamless carbon steel pipe for high-temperature service. The standard includes seamless pipe in NPS 1/8 through NPS 48 and references ASME B36.10 for nominal wall thickness.
ASTM A106 Grade B is commonly specified for industrial piping and elevated-temperature service where the applicable project requirements call for this material.

ASTM A53 Seamless Black Steel Pipe

ASTM A53 covers both welded and seamless black steel pipe as well as hot-dipped galvanized pipe. Its scope includes seamless Type S pipe in Grades A and B.

ASTM A53 is commonly used for mechanical and pressure applications and for ordinary steam, water, gas, and air lines when the application requirements are satisfied.

Other Material Grades
Other carbon steel grades may be available depending on the required temperature, pressure, fluid, design code, and purchasing specification.

The material should therefore be selected based on the application rather than assuming that every Schedule 40 seamless black steel pipe has the same mechanical or pressure performance.

Schedule 40 Seamless Black Steel Pipe vs ERW Black Steel Pipe

The main manufacturing difference is the absence or presence of a welded seam.

Feature	Seamless Black Steel Pipe	ERW Black Steel Pipe
Longitudinal weld	None	Present
Manufacturing route	Seamless forming process	Forming and electric resistance welding
Typical selection	Applications where seamless pipe is specified	General piping and other applications where ERW is permitted
Cost	Often higher	Often more economical
Material standard	Depends on specification	Depends on specification

A seamless pipe should not automatically be described as “stronger” than all ERW pipe. The appropriate choice depends on the applicable standard, grade, dimensions, manufacturing requirements, testing, and service conditions.
For projects comparing the two products, the material specification and design requirements should be reviewed before selecting the manufacturing method.

Applications of Schedule 40 Seamless Black Steel Pipe

1.Schedule 40 seamless black steel pipe can be used in a range of industrial and mechanical applications when the selected material and dimensions meet the service requirements.
2.Industrial Piping：Carbon steel seamless pipe is used in industrial piping systems for the transportation of fluids and gases.
3.Steam and High-Temperature Service：Certain seamless carbon steel grades, including ASTM A106, are specifically intended for high-temperature service.
4.Oil and Gas Applications：Seamless carbon steel pipe may be specified for oil and gas applications where the applicable material standard and project requirements permit its use.
5.Water and Air Lines: ASTM A53 includes applications involving ordinary steam, water, gas, and air lines, subject to the requirements of the specification and the actual service conditions.

6.Mechanical and Industrial Applications : The combination of standardized dimensions, carbon steel construction, and seamless manufacturing makes Schedule 40 seamless pipe suitable for various mechanical and industrial piping systems.

Schedule 40 Seamless Black Steel Pipe Material

Carbon steel is the most common material for this type of pipe.
Typical material grades include:
ASTM A53 Grade B
ASTM A106 Grade B
Other grades when required by the project specification
The chemical composition and mechanical properties depend on the applicable material standard.
For procurement, it is important to check the material test certificate (MTC) rather than relying only on the product name. The MTC can provide information such as heat number, chemical composition, mechanical test results, and standard compliance.

FAQ About Schedule 40 Seamless Black Steel Pipe

Is Schedule 40 seamless black steel pipe the same as black steel pipe?
No. Black steel pipe describes the ungalvanized surface/material category, while Schedule 40 describes the nominal wall-thickness designation for a given NPS. “Seamless” describes the manufacturing method.

Is Schedule 40 seamless black steel pipe strong?
Its mechanical performance depends on the material grade, dimensions, manufacturing specification, and service conditions. Schedule 40 alone does not define the complete strength or pressure capability of the pipe.
What is the difference between Schedule 40 and Schedule 80 black steel pipe?
For the same nominal pipe size, Schedule 80 generally has a thicker wall than Schedule 40. This normally results in a smaller internal diameter and higher pipe weight. The appropriate schedule depends on the design requirements.
Does seamless black steel pipe rust?
Yes. Black steel pipe is generally ungalvanized, so it can corrode when exposed to moisture and oxygen. The required corrosion protection depends on the environment and service conditions.
What grades are commonly used for Schedule 40 seamless black steel pipe?
Common specifications include ASTM A53 and ASTM A106, depending on the application. ASTM A53 includes seamless black steel pipe, while ASTM A106 covers seamless carbon steel pipe for high-temperature service.
Is Schedule 40 seamless pipe suitable for high-pressure service?
It may be suitable for a particular pressure service when the complete pipe specification and engineering calculations meet the applicable requirements.

Schedule 40 alone does not establish a universal pressure rating.To learn more, you can check out our articles on Schedule 40 pressure gauges.
What is the difference between seamless and ERW black steel pipe?
Seamless pipe has no longitudinal welded seam, while ERW pipe is manufactured with a longitudinal electric resistance weld. The appropriate choice depends on the applicable specification and service requirements.
What Is the Difference Between Seamless Black Steel Pipe and Black Iron Pipe?
A: Seamless black steel pipe is manufactured without a weld seam, while black iron pipe is a common industry term for black-coated steel pipe. The main differences lie in manufacturing methods, surface coating, and applications.
