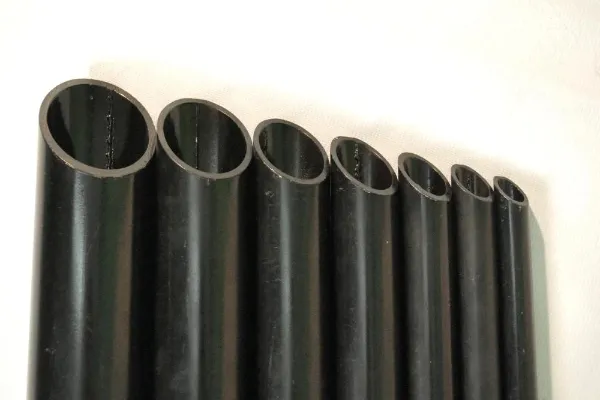

SCH 40 Black Steel Pipe

SCH 40 Black Steel Pipe is a common type of carbon steel pipe widely used in industrial piping, construction, machinery, and fluid transport systems. These pipes are typically manufactured to standards such as ASTM A53; the "SCH 40" (Schedule 40) designation refers to the standard wall thickness series, with the actual wall thickness determined by the nominal pipe size (NPS), while "Black Steel Pipe" refers to carbon steel pipe that has not been galvanized and features a black or dark gray finish. SCH 40 Black Steel Pipe offers a favorable balance of strength, durability, and cost-effectiveness, making it suitable for applications involving gas, water, HVAC, steam, fire protection, and general industrial piping.

SCH 40 Black Steel Pipe Sizes and Dimensions

Pipe dimensions are normally identified by NPS, OD, wall thickness, and ID. NPS is a nominal designation and does not always match the actual outside diameter.
The following table shows common SCH 40 black steel pipe dimensions.

NPS	DN	Outside Diameter (OD)	Wall Thickness	Inside Diameter (ID)
1/2"	DN15	0.840"	0.109"	0.622"
3/4"	DN20	1.050"	0.113"	0.824"
1"	DN25	1.315"	0.133"	1.049"
1-1/4"	DN32	1.660"	0.140"	1.380"
1-1/2"	DN40	1.900"	0.145"	1.610"
2"	DN50	2.375"	0.154"	2.067"
2-1/2"	DN65	2.875"	0.203"	2.469"
3"	DN80	3.500"	0.216"	3.068"
3-1/2"	DN90	4.000"	0.226"	3.548"
4"	DN100	4.500"	0.237"	4.026"
5"	DN125	5.563"	0.258"	5.047"
6"	DN150	6.625"	0.280"	6.065"
8"	DN200	8.625"	0.322"	7.981"
10"	DN250	10.750"	0.365"	10.020"
12"	DN300	12.750"	0.406"	11.938"

These dimensions are based on the standard Schedule 40 dimensional system used for welded and seamless steel pipe. ASME B36.10 covers the dimensional standardization of welded and seamless wrought steel pipe.

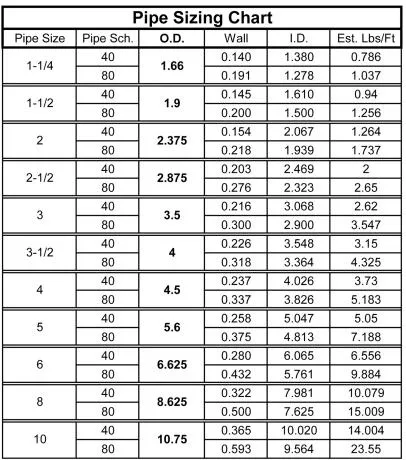

SCH 40 Black Steel Pipe Size Chart

For project selection, the nominal size should be considered together with the outside diameter and wall thickness.
The 2-inch SCH 40 pipe, for instance, has an outside diameter of 2.375 inches and a nominal wall thickness of 0.154 inch. The resulting nominal inside diameter is approximately 2.067 inches.

The same principle applies across the SCH 40 size range. Increasing the NPS changes the standard OD and wall thickness.

SCH 40 Black Steel Pipe Wall Thickness

Schedule 40 is a wall-thickness designation rather than a single thickness value.

NPS	SCH 40 Wall Thickness
1/2"	0.109"
3/4"	0.113"
1"	0.133"
1-1/4"	0.140"
1-1/2"	0.145"
2"	0.154"
2-1/2"	0.203"
3"	0.216"
4"	0.237"
5"	0.258"
6"	0.280"
8"	0.322"
10"	0.365"
12"	0.406"

The actual wall thickness can be subject to manufacturing tolerances. When a project requires a specific minimum or nominal thickness, the applicable product standard and purchase specification should be confirmed.

SCH 40 Black Steel Pipe OD and ID

The outside diameter is standardized according to NPS. The inside diameter changes with wall thickness.
The basic relationship is:
ID = OD − 2 × Wall Thickness
For a 2-inch SCH 40 pipe:
ID = 2.375 − 2 × 0.154 = 2.067 inches
This relationship is important when selecting fittings, valves, flow areas, and other components connected to the piping system.

SCH 40 Black Steel Pipe Weight

Pipe weight varies with NPS and wall thickness. Larger pipe sizes require more steel and therefore have a higher weight per foot.

NPS	Approx. Weight
1/2"	0.85 lb/ft
3/4"	1.13 lb/ft
1"	1.68 lb/ft
1-1/4"	2.27 lb/ft
1-1/2"	2.72 lb/ft
2"	3.65 lb/ft
2-1/2"	5.79 lb/ft
3"	7.58 lb/ft
4"	10.79 lb/ft
6"	18.97 lb/ft
8"	28.55 lb/ft
10"	40.48 lb/ft
12"	53.52 lb/ft

Weight values are useful for estimating transportation, structural loading, handling requirements, and material quantities.

ASTM A53 Black Steel Pipe

ASTM A53/A53M is a commonly specified standard for black steel pipe. The current ASTM A53/A53M-24 covers seamless and welded black steel pipe, as well as hot-dipped galvanized steel pipe. It includes Type F, Type E, and Type S products and Grades A and B.
ASTM A53 pipe is intended for mechanical and pressure applications. The specification also covers ordinary service in steam, water, gas, and air lines, subject to the applicable requirements.
The material specification and dimensional specification should be treated separately:
ASTM A53 defines material and product requirements.
ASME B36.10 provides standardized pipe dimensions.

This distinction is important when preparing a technical purchase specification.

SCH 40 Black Steel Pipe Manufacturing

SCH 40 black steel pipe can be produced using welded or seamless manufacturing processes, depending on the required specification.

ERW Black Steel Pipe
ERW stands for Electric Resistance Welded.
Steel strip or plate is formed into a cylindrical shape. The longitudinal edges are joined using electrical resistance welding.ERW pipe is commonly used for general industrial, mechanical, construction, and fluid transportation applications.

Seamless Black Steel Pipe
Seamless pipe is manufactured without a longitudinal welded seam.

It is selected for projects that specify seamless construction or require a product meeting a particular seamless pipe standard.ASTM A53/A53M recognizes both Type E electric-resistance-welded pipe and Type S seamless pipe.

SCH 40 Black Steel Pipe vs Galvanized Steel Pipe

The main difference is the surface condition.
Black steel pipe has a dark carbon steel surface. Galvanized steel pipe has a zinc coating that provides additional protection against corrosion.

Feature	Black Steel Pipe	Galvanized Steel Pipe
Surface	Black or dark	Zinc-coated
Corrosion Protection	Requires additional protection when needed	Zinc coating provides protection
Common Applications	Gas, mechanical, industrial	Water, utility, outdoor applications
Welding	Widely used	Requires attention to zinc coating
Appearance	Dark gray/black	Silver/gray

Conclusion

SCH 40 Black Steel Pipe provides standardized dimensions and the strength of carbon steel for a wide range of piping applications.
The correct product selection should include the NPS, Schedule, wall thickness, material standard, manufacturing process, length, end type, pressure, temperature, and service environment.
For procurement, a complete specification is more reliable than using "SCH 40 black pipe" alone. Confirming these details before production helps ensure dimensional compatibility, material compliance, and suitability for the intended application.
